• Model NO.：JY-2500
• Air Pressure：0.5-0.8MPa
• Max. Processing Glass Size：2500*3000mm
• Min. Processing Glass Size：280*450mm
• Working Direction：Right to Left or Left to Right
• Single Glass Thickness：3-18mm
• Transfer Speed：8-45m,Min
• Machine Dimension：8800*2100*3800mm
• Weight：4000kg
• Transport Package：Standard
• Specification：JY-2500
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. JY-2500 Air Pressure 0.5-0.8MPa Max. Processing Glass Size 2500*3000mm Min. Processing Glass Size 280*450mm Working Direction Right to Left or Left to Right Single Glass Thickness 3-18mm Transfer Speed 8-45m/Min Machine Dimension 8800*2100*3800mm Weight 4000kg Transport Package Standard Specification JY-2500 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

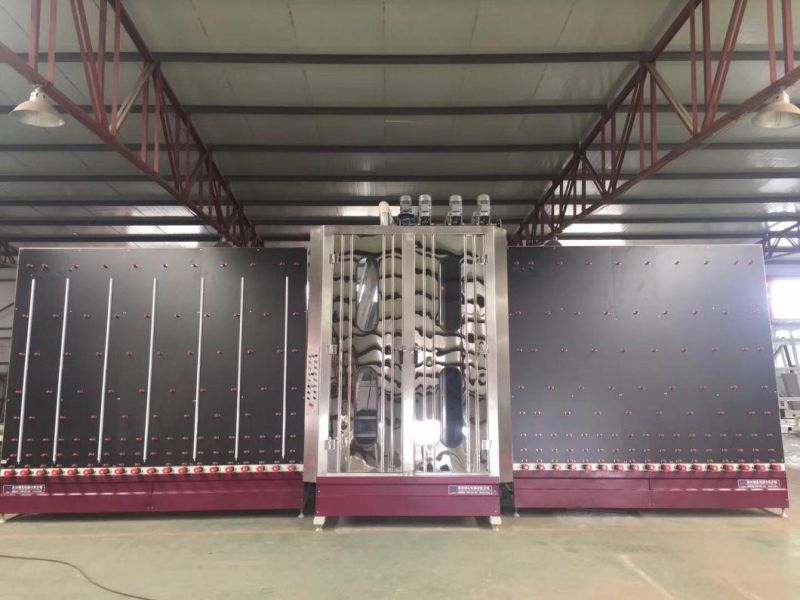

       China manufacturer vertical glass washing and drying machine
Machine feature:
1. Washing section and water system adopt complete stainless steel or rot proof materials.
2. It has 3 pairs of glass washing soft brushes for coated glass and LOW-E glass.
3. Drying section adopts rubber roller to scrape of the water,and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.
Parameter:

Model	JY-2500
Input Voltage	380V 50Hz
Total Power	23.0KW
Cutting Glass Size	2500×3000mm
Min Glass Size	280×450mm
Glass Thickness	3~18mm
Working Speed	8~45m/min
Total Weight	4000kg
Size of Line	8800×2100×3800mm

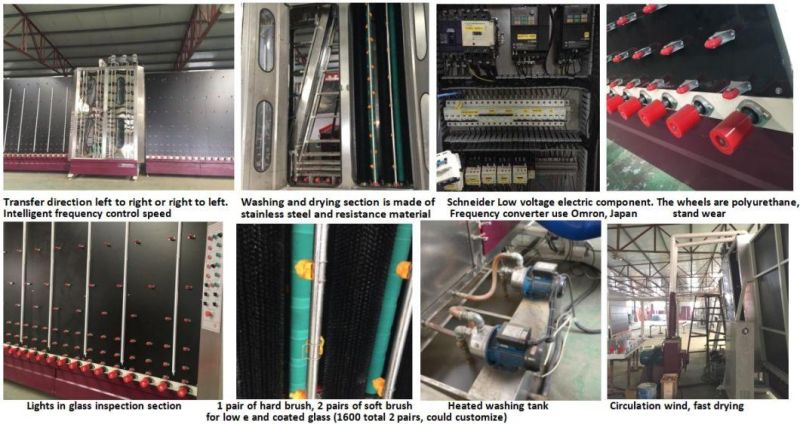

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. Insulating glass production line
