Arch Building Roll Forming Machine (BH-1000-610)

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Roof
  • Transmission Method:Machinery

Base Info

  • Model NO.:BH-1000-610
  • Certificate:CE
  • Controlling System:PLC&Manual
  • Total Motorpower:17.9kw
  • Material of Cutting Blade:Cr12 MOV
  • Material of Roller Shaft:45# Steel, Galvanized
  • Thickness of The Coil:0.6-1.5mm
  • Material of Rollers:45# Steel, Quenched with Hard Chrome
  • Proper Span:14-45m
  • Transport Package:Packed in 40hq Container
  • Specification:8900mm*2230mm*2200mm
  • Trademark:BOHAI
  • Origin:Liaoning Province of China
  • HS Code:8455229090
  • Production Capacity:30 Sets Per Year

Description

Main Technical Specification:Size: 8900mm × 2230mm × 2300mmTotal Weight: about 15000KGTotal MotorPower: 17.9KWBending power: 3.0kw+1.1kwx2;                         Sewing power: 2.2kwCutting power: 4.0kw;
Forming power: 7.5kwWorking Speed :  Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/minFeeding Width: 1000mm                   Effective Width: 610mmStep of rollers: 14 steps                   Controlling system: PLC&ManualMaterial of cutting blade: Cr12moVSheet operating factor: 61%Thickness of the coil: 0.6-1.5mmMaterial of roller shaft: 45# steel, galvanizedMaterial of rollers: 45# steel, quenched with hard chrome     Type of cutting: Roll-formed and length-set cuttingElectric Standard: 380V / 50 HZ / 3 PHASESThe depth of the groove: 243mmProper span : ≤39mShip Container: 40'HQ x 1

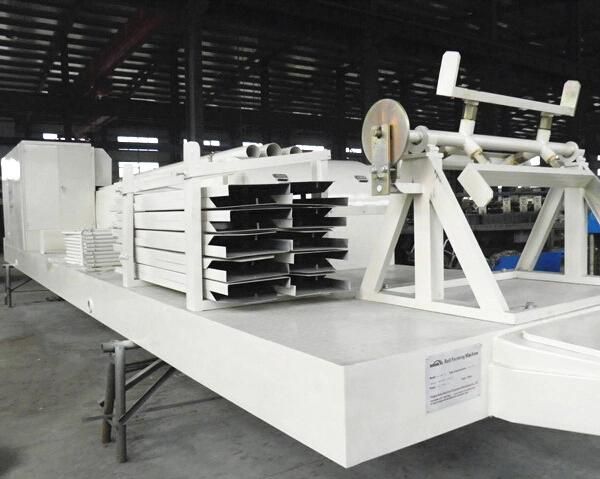

Machine Photo
Arch Building Roll Forming Machine (BH-1000-610)

Arch Building Roll Forming Machine (BH-1000-610)

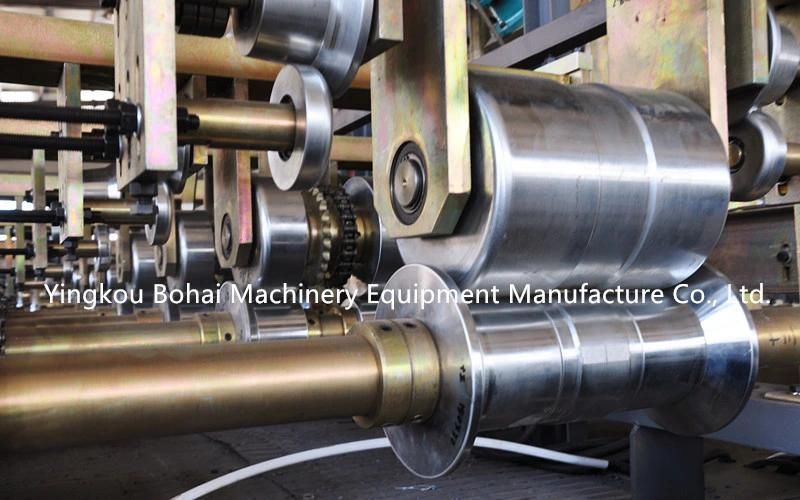

Machine Detail Phot
Arch Building Roll Forming Machine (BH-1000-610)

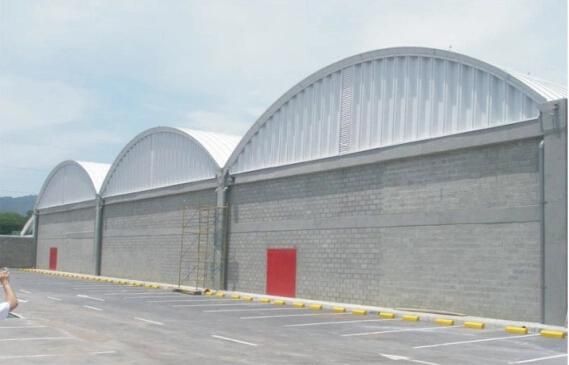

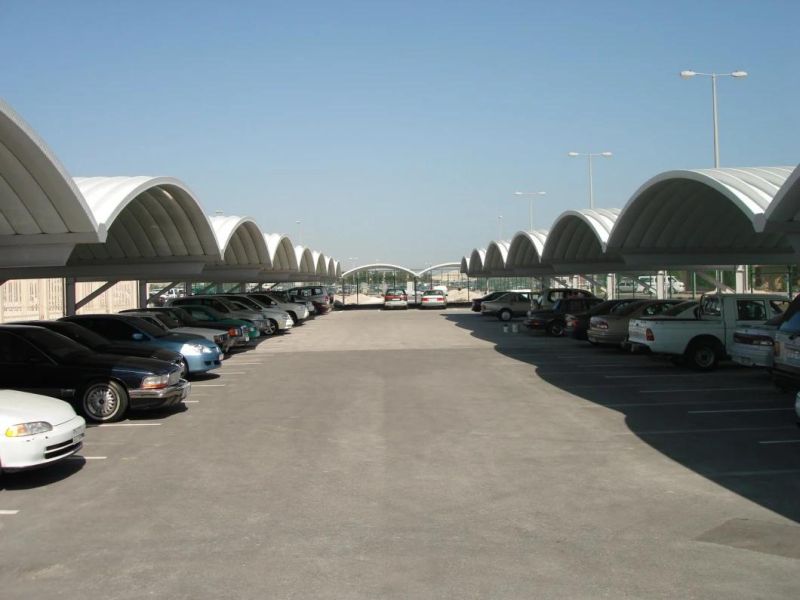

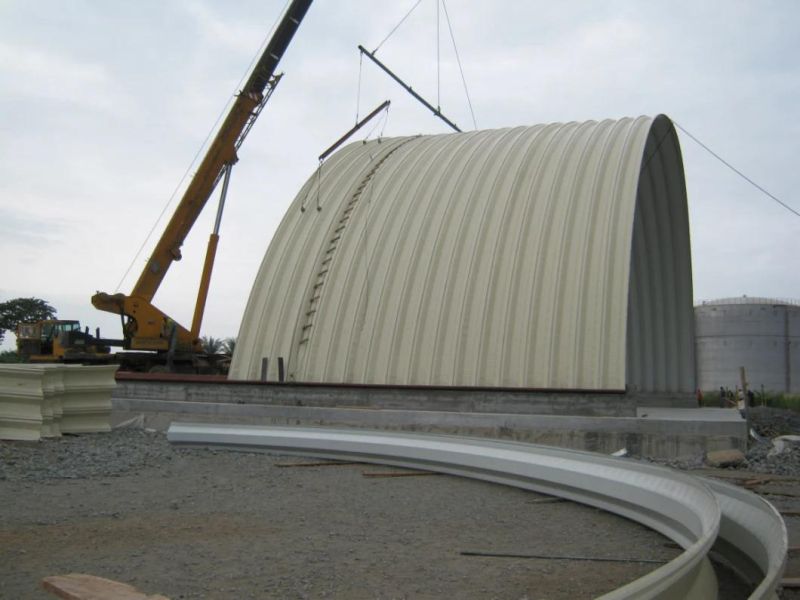

Project
Arch Building Roll Forming Machine (BH-1000-610)
Arch Building Roll Forming Machine (BH-1000-610)
Arch Building Roll Forming Machine (BH-1000-610)
Arch Building Roll Forming Machine (BH-1000-610)

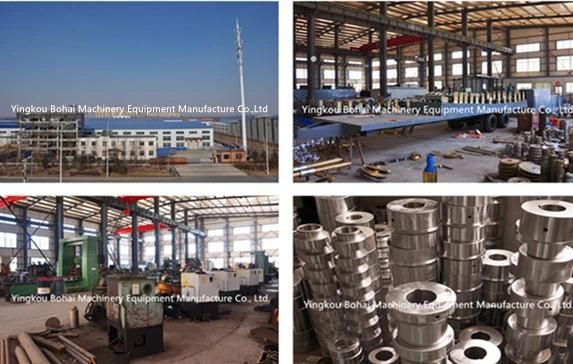

Our Company

Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Arch Building Roll Forming Machine (BH-1000-610)

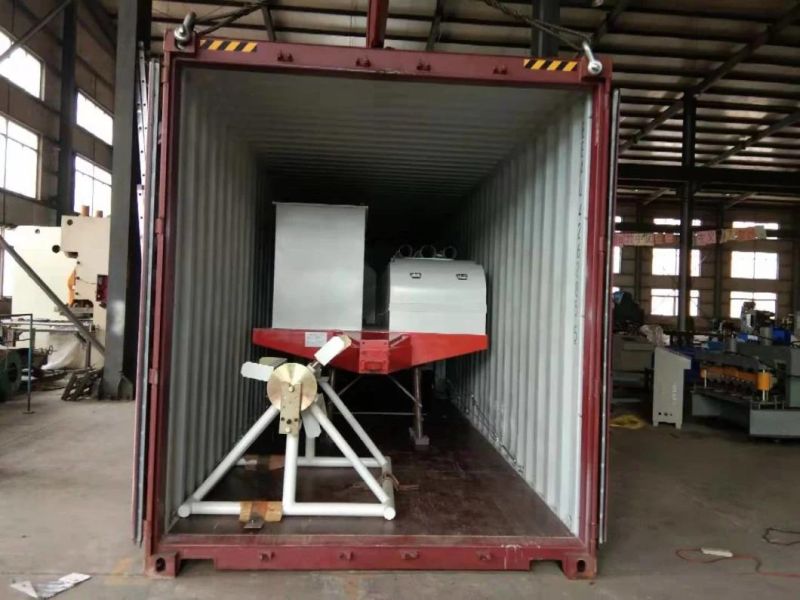

Delivery
Arch Building Roll Forming Machine (BH-1000-610)
Certificate
Arch Building Roll Forming Machine (BH-1000-610)
Arch Building Roll Forming Machine (BH-1000-610)

FAQ
Q: Can you  make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most  suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.


Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!


Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check  every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.


Q: What is your service?
A:
We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.

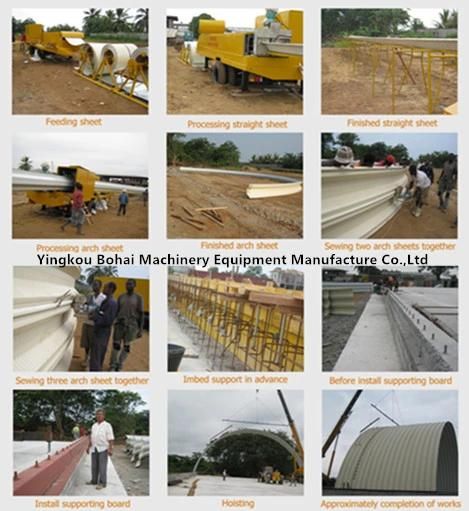

Machine Making Project Photo

Arch Building Roll Forming Machine (BH-1000-610)

Payment
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery )
CooperateStep 1Tell us your requirements.Step 2Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.Step 4Advanced payment and production.Step 5Factory examine goods/ rectify and reform to meet the requirements of contract.Step 6: Balance payment and shipping.Step 7Handing shipping files to help clients get goods from transporter in time.Step 8: Clients get goods and go into warranty time.Step 9: Provide overseas service for clients.
