• Model NO.：CLJJA-500B
• Rotary Speed：2800r,Min
• Air Pressure：0.5-0.8MPa
• Auto Feeding Length：3-380mm
• Cutting Width：140mm
• Cutting Height：200mm
• Cutting Angle：90 Degree
• Machine Dimension：6000*1770*1840mm
• Weight：600kg
• Transport Package：Wooden
• Specification：Saw blade diameter 500mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLJJA-500B Rotary Speed 2800r/Min Air Pressure 0.5-0.8MPa Auto Feeding Length 3-380mm Cutting Width 140mm Cutting Height 200mm Cutting Angle 90 Degree Machine Dimension 6000*1770*1840mm Weight 600kg Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

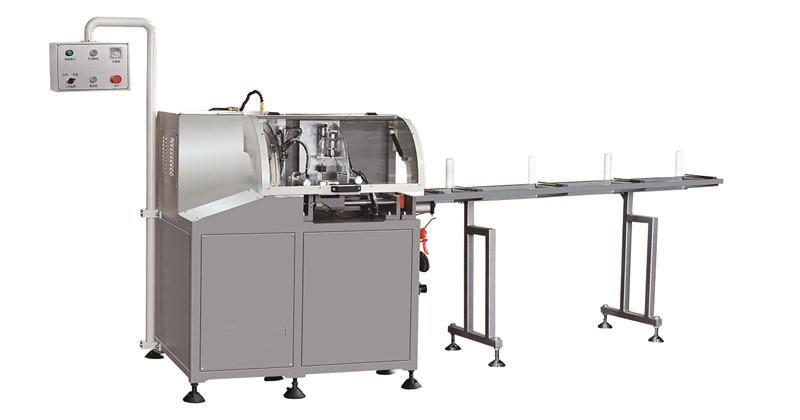

90 Degree Cutting Aluminium Window Corner Key Cutting saw

Machine feature:

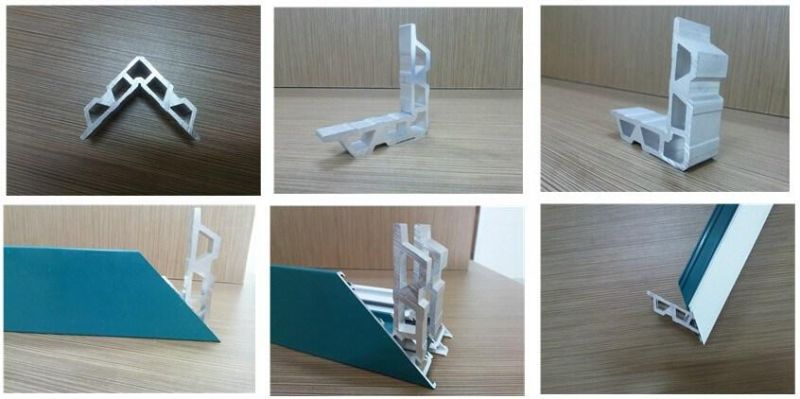

1.Used for aluminum corner connector cutting.
2.Imported carbide saw blade is of accurate processing and high efficiency.
3.Only one time clamping,can achieve 6 meters corner section bar continuous cutting.
4.The use of imported control system,control system adopts the man-machine interface,high accuracy.
6.Feeding motion using linear motion bearing small movement resistance of high precision.
7.Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
8.Work clamping,cutting and uses the pneumatic control system,convenient operation,safely and reliability,high productively.
Parameter:

Model	CLJJA-500B	Power Supply	380V 50Hz
Input Power	2.2Kw	Air Pressure	0.5~0.8MPa
Motor Rotary Speed	2800r/min	Saw Blade Specification	Dia. 500mm
Feeding Length	3~380mm	Cutting Width*Height	140*200mm
Overall Dimension	6000*1770*1840mm	Weight	About 600Kg

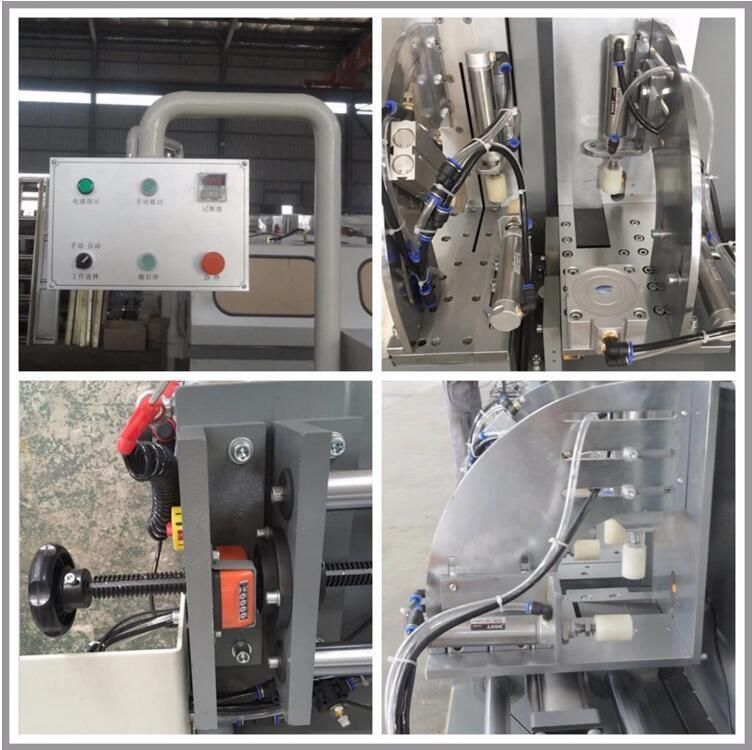

Machine details:







Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
