India, Nepal Hot Sale Clay Brick Machine for Logo Brick
Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.- Certification：CE, ISO9001: 2000
- Customized：Non-Customized
- Automatic Grade：Automatic
- Type：Brick Making Machine
- Method：Vacuum Extruder
- Processing：Brick Vacuum Extruder
Base Info
- Model NO.：JKR40,40-20
- Product：Solid Logo Brick, Hollow Brick
- Automation：Automatic
- Tolerance：0.5mm
- Condition：New
- Brick Raw Material：Clay, Fly Ash, Gangue
- Power：110kw
- Weight：10 Ton
- Extrusion Pressure：2.0 MPa
- Transport Package：Nude Container
- Specification：ISO9001, CE, SGS
- Trademark：hengda
- Origin：Jiangsu
- HS Code：84748090
- Production Capacity：300sets,Year
Description
Item
Unit of measurement
JKR40/40-20 logo brick machine
Production capacity
standard brick/hour
5000pcs/hour
Maximum extrusion pressure
Mpa
1.5-2.5
Vacuum degree
Mpa
≥0.092
Power
KW
75-90
Weight
t
10.5
Overall size
mm
4200×1380×1260
Attention:
1.JKR40/40-20 logo brick press machine with the Wear resistant metal spraying technology was applied to the screw, pug mill,axis of screw and seasoning, conditioning, quenching treatment make sure the body of brick extruder work in long life.
Wear resistant metal spraying technology
2.JKR40/40-20 logo brick press machine harden surface gear was adopted in reducer, clutch are a component with own patent, all the treatments make the brick machine life-saving
3.the reasonable design,compact structure reduce the energy consumption, without any shaking during working, even the Clay brick making machine can working normal without foundation bolts.

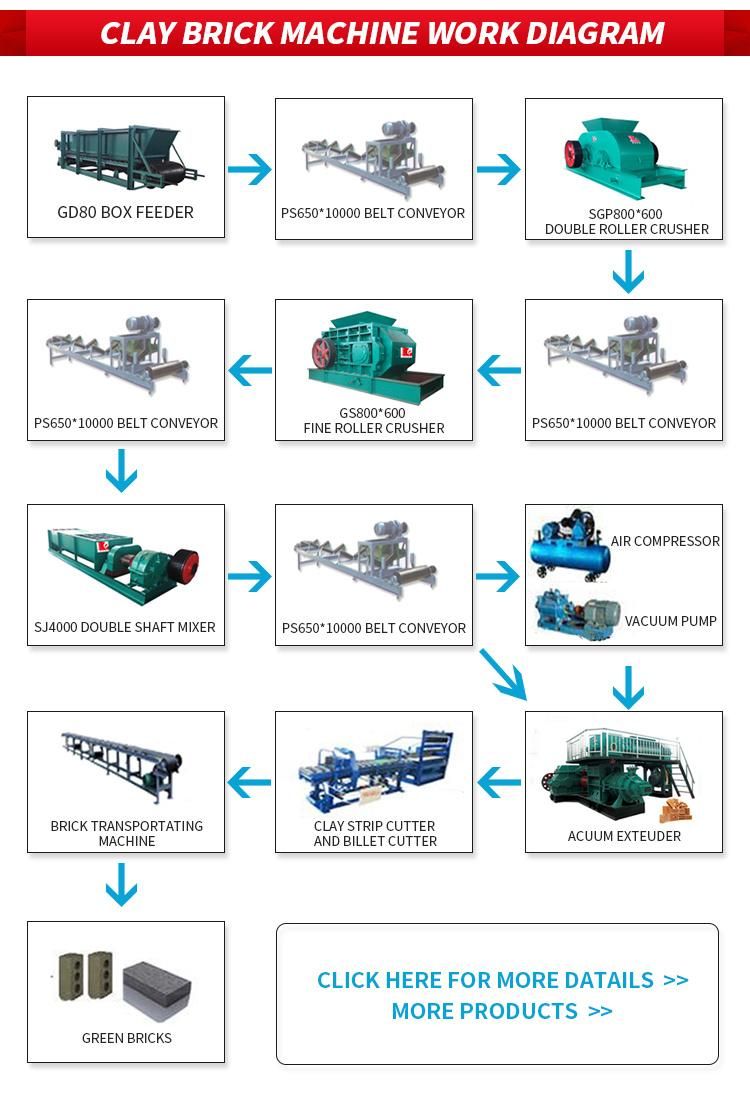

Clay as raw material logo brick press machine Process:
Clay→Box feeder →Belt conveyer→ Roller crusher→Double shaft mixer →Belt conveyer→ JKR40/40-20 logo clay brick making machine → Full-automatic brick cutting machine →Auto brick unloading machine
Buying tips
We have two kinds of brick machine, one produce clay brick machine/ logo brick machine , another produce concrete block machine, when you want to buy, you please tell me
1. You need clay brick machine or logo brick machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
We are professional clay brick machine/ logo brick machine , concrete block machine and block pallet manufacturer, if you are interested, please come here.
