Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot

Jinan Sunny Machinery Co., Ltd.
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Automatic Grade：Automatic
  • Structure：Hollow
  • Transmission Method：Electric

Base Info

  • Model NO.：YGM2500
  • Min.Glass Size：280X450mm
  • Max.Glass Sze：2500X3500mm
  • Sealing Speed：12-30m,Min
  • Sealing Width：6-24mm
  • Sealing Depth：2-15mm
  • Conveyor Speed：0-48m,Min
  • Power Supply：13kw
  • Air Supply：0.5-0.8MPa
  • Working Height：520mm
  • Usage：Building
  • Transport Package：in Wooden Cases
  • Specification：ISO9001
  • Trademark：Sunny
  • Origin：China
  • HS Code：847529900
  • Production Capacity：10 Sets Per Month

Description

Basic Info.

Model NO. YGM2500 Min.Glass Size 280X450mm Max.Glass Sze 2500X3500mm Sealing Speed 12-30m/Min Sealing Width 6-24mm Sealing Depth 2-15mm Conveyor Speed 0-48m/Min Power Supply 13kw Air Supply 0.5-0.8MPa Working Height 520mm Usage Building Transport Package in Wooden Cases Specification ISO9001 Trademark Sunny Origin China HS Code 847529900 Production Capacity 10 Sets Per Month

Product Description


YGM2500 Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot:
Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot

1.Functions & characteristics:
1) Achieve various size of rectangular insulating glass automatic continuously sealing,high efficiency & stable quality sealing performance.
2) Two separate sealant(pump,mixing device )system,which can be switched freely.
3) Finished IG unit can be stored on the third section,strengthen the continuity of machine's operation,and improve the production efficiency.
4) Economical and practical,suitable for glass deep,processing enterprises.
5) Friendly interface,easy for operation
6) All edges and corners sealant coating enrich no air bubbles,fully coating ,without manual trimming.
7) Adopt word-renowned brand of servo control system,stable perfomance.
8) Accurate synchronous belt transmission system to ensure glass convey stable and clean.
9) Unique insufficient sealant to be automatic alarm device.

Technique parameter:
Min. Glass size: 280x450mm
Max. Glass size: 2500x3500mm/2500X2000mm
Glass thickness: 3-12mm
Insulating glass thickness: 12-60mm
Sealing speed : 12-30m/min
Sealing width: 6-24mm
Sealing depth: 2-15mm
Conveyor speed: 0-48m/min
Power supply: 13KW
Air supply: 0.5-0.8Mpa
Working height: 520mm
Dimension: 8800X4000X3400mm

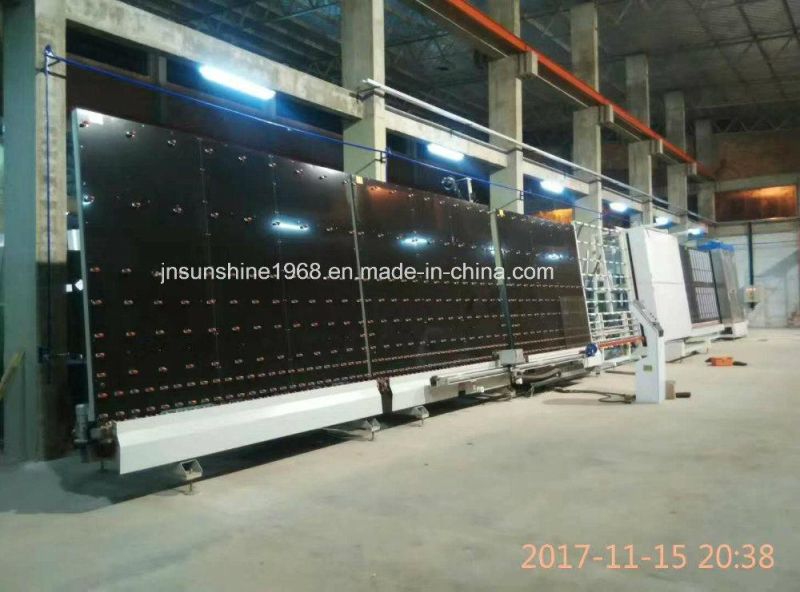

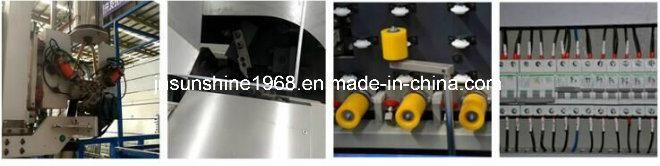

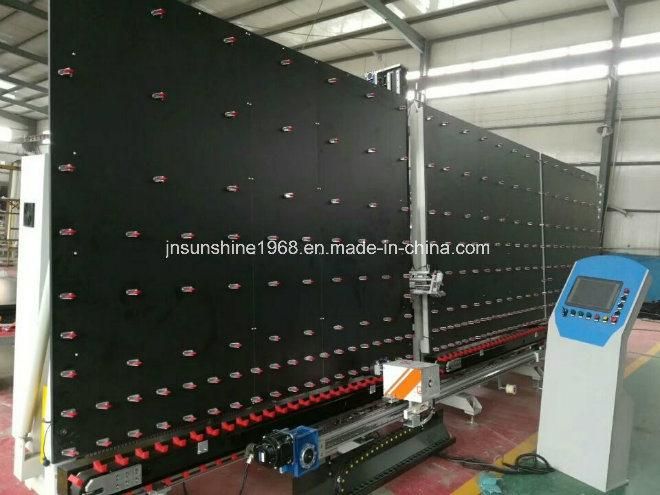

Machine details:
Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot
Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot
Automatic Insulating Glass Sealing Robot -Sealant Extruder Robot
