Full Automatic Hydraulic Concrete Hollow Paver Brick Block Making Machine
Quanzhou Hawen Machinery Co., Ltd.- Certification：ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Pallet Size：980X880mm
- 39X14X19cm Block：12PCS Per Mould
Base Info
- Model NO.：QT8-15
- Working Method：Automatic
- Raw Material：Cement, Sand, Crushed Stone
- After Sales Service：English Speaking Technician Available
- Rectangle Paver：32PCS Per Drop
- Hollow Block 40X20X20cm：8PCS Per Mould
- Transport Package：Standard Ocean Packing
- Trademark：HAWEN
- Origin：China
- HS Code：8474809090
- Production Capacity：300 Sets, Year
Description
Main Technical Specifications for QT8-15 Block Making Machine Motors Power: 48KW For Main forming machine parts only Machine Dimensions: 8800x2300x2800mm Cycle times: 15~22s Vibration: Table Vibration Vibration Frequency: 2800~4500rmp Pallet Size: 980x880mm Gross Weight: About 11T Raw Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes Applied Products: Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. Applied Fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions
Capacity of QT8-15 Automatic Block Making machine
Processing equipment in the workshop

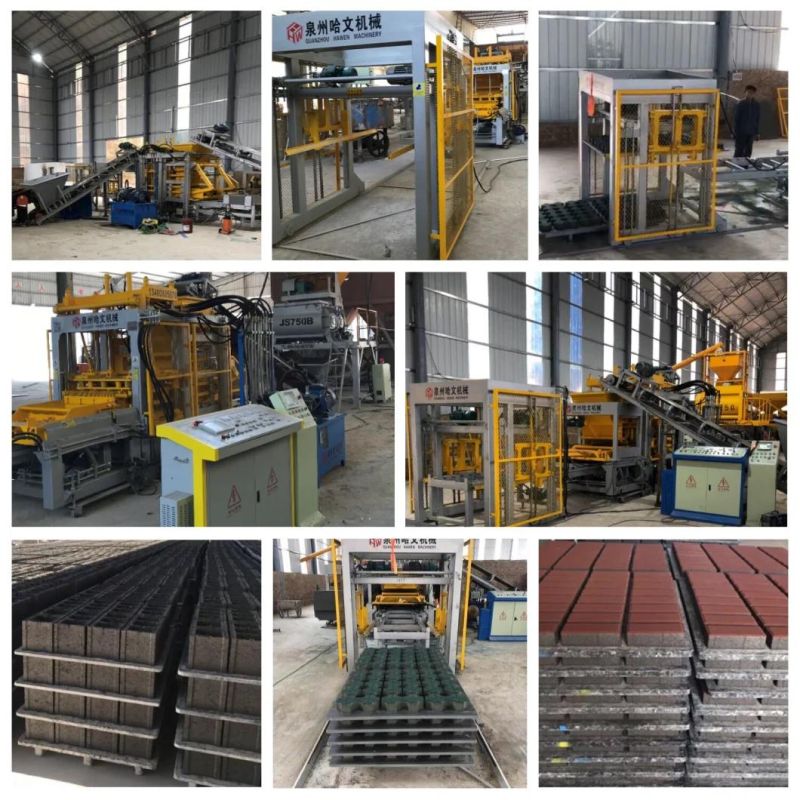

Application of QT8-15 Block Making Machine at site
with Block Stacker,Automatic Pallet Provider, automatic Pallet feeder can feed the pallet into machine automaticly.
To make 6inch hollow block at 390x140x190mm,it allows to get 12pcs per cycle in QT8-15 block making machine
Workers Number: 5-6 Workers
- 1 Wheel Loader driver to load the raw material into Batching machine;
- 1 Operator to control the PLC cabinet, when set the control to Auto. mode, this operator is Free,the same one can drive the Forklift to feed the pallet into pallet provier.
- 1 Forklift drivers to take the Fresh block to curing yard.
- 1 labor to feed the pallet into machine if there is no Auto.pallet proivder.
-1 labors to put the bag cement into the bucket hopper of mixer,if not using bulk cement.
- 1 supervisor to check the whole plant.
Factory Area : 4000-5000m2 (1~1.5 acre)
Workshop Area: 500m2
Pallet Number for QT8-15 automatic block making line: 1500 pallet
Hawen Machinery Factory supply PVC Pallet, fiber (GMT) pallet and Bamboo pallet.
PVC Pallet and GMT Pallet are recommended.
Power Consumption: 100-120KW
Packing&Shipping
The whole plant requires 2x40HQ Container,without cement silo and pallet.
1500pcs of PVC Pallet requirex another 3x20ft container.

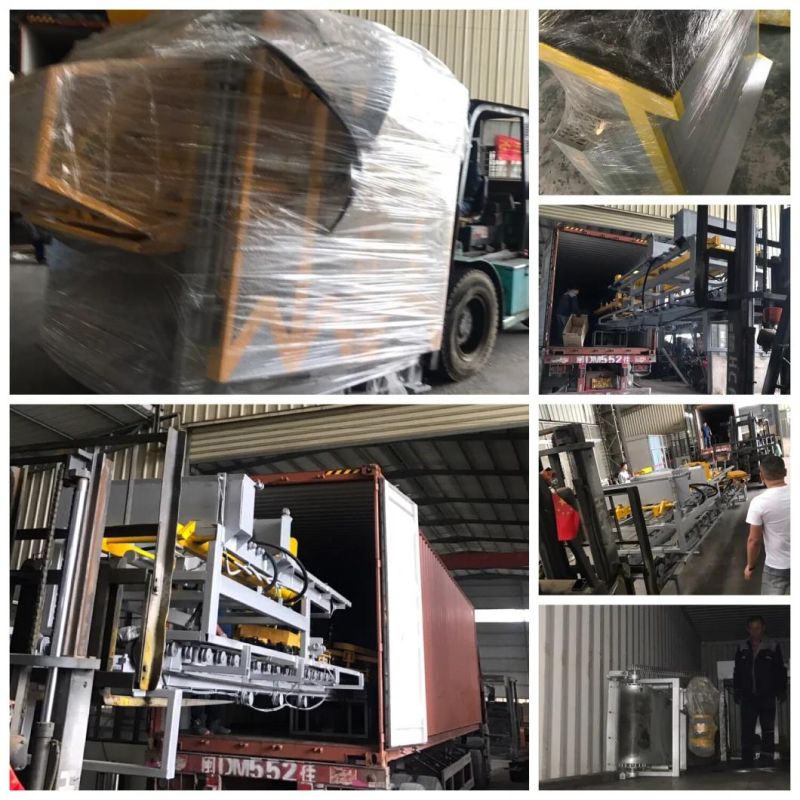

Container loading in workshp for customers overseas

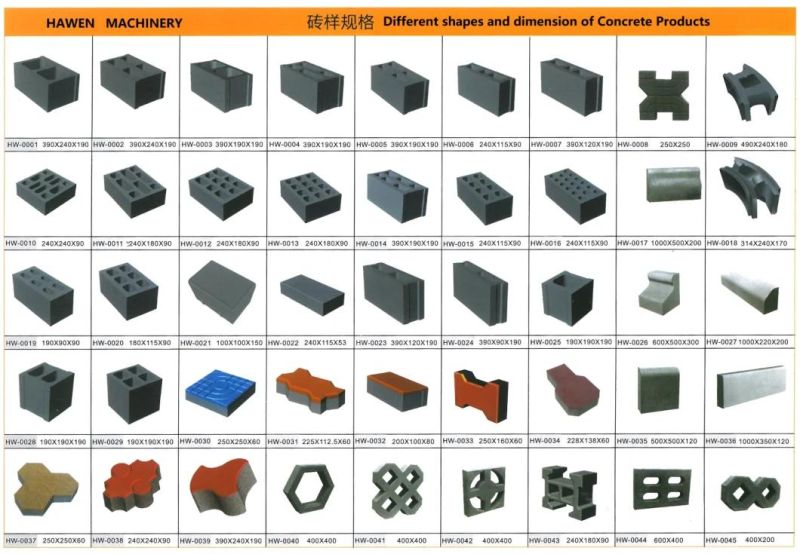

Block and Brick Sample

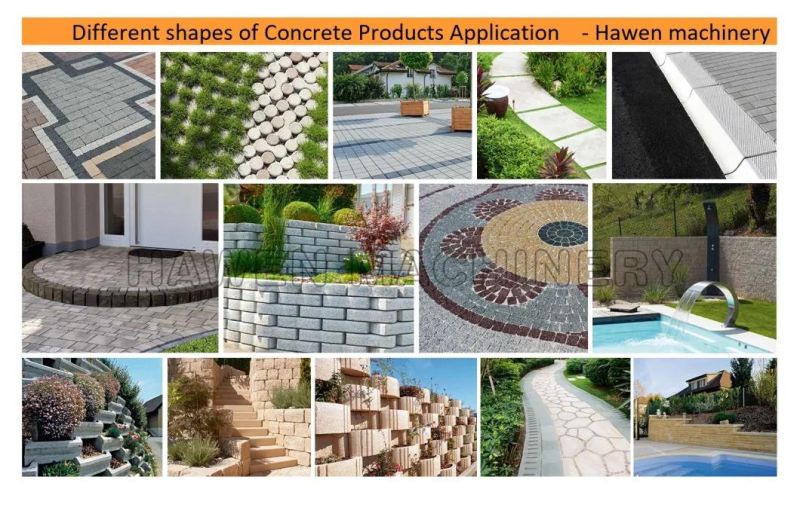

Application:
FAQ
1. How many square meters required to set up a block factory?
Answer: Generally,the whole factory requires 5000 square meters, including the recommended workshop to cover the equipments at 500 square meters,equipments are suggested to keep under the shed.
2. What kind of material can be used to produce concrete block?
Answer:Crushed stone(Max.10mm),sand and Cement as raw material, coal fly ash, cinder, slag,gangue, gravel, and other industrial wastes.And if customer makes the top colored paving stone,then the face material of fine sand and white cement and pigmen are required.
3. Can I get the warranty for the machine?
Answer:The warranty for the machine is one year after installation or 15 months after shipment,whichever comes first.Spare parts will be sent to customers for free of charge during the warranty period. Warranty does not cover the wearing parts, in cases of incorrect handling, improper user, insufficient maintenance, unauthorized service or modifications to the machine, normal wear .
4.What is the delivery time?
Answer:The delivery time is 30-40 days upon receiving the down payment and mould drawing approval from customer.
5. What about your payment terms?
Answer:T/T and L/C are acceptable.
Generally,it requested to pay 30% as depoist by T/T before production, and the balance to be paid by T/T or Irrevocable,Confirmed LC at sight before shipment.
6. How to prepare the foundation for the equipments?
Answer:The foundation drawing for the whole plant will be provided within 07 days after the order confirmed,customer could prepare the foundation construction according to the drawing provided.
7.How about the installation & commissioning ?
Answer: After the equipments arrive customer's site,and the preparation for the foundation,water & electricity are ready,we will send 1 of our technician for the installation & commissioning,the technician will train customer's staff for the operation and maintenance of equipment.
8. How about the installation cost?
Answer:We will send our technician for the installation,customer should responsiblefor all the expense and the allowance of our technician.
9. Are the machine be tested in your factory before shipment?
Answer:Yes all of our machines will be tested in our workshop before container loading.You are warmly welcome to do the inspection before shipment.
10.Can I visit your factory before placing the order and where is your factory ?You are Answer: Warmly welcome to visit our factory any time.Our factory located in Quanzhou City,Fujian Province.
The nearest airport to our factory is Jinjiang airport,which is 30 minutes to our factory by car.
How to come to your city?
You could take the international flight to Guangzhou airport first,then take the domestic flight from Guangzhou airport to Jinjiang airport,we will pick you up from Jinjiang Airport.
Or take the high speed train From Guangzhou South to Quanzhou train station.
We Value our customer,and customers value the quality,durability,efficiency and
low maintenance costs of block machine we provided.
