Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：PLC Computer Control
  • Automatic Grade：Automatic

Base Info

  • Model NO.：100-400
  • Capicity of Decoiler：5000kgs
  • Main Motor Type：Three-Phase Asynchronous
  • Motor Power：18.5kw
  • Thickness of Raw Material：1.0-3.0mm
  • Processing Precision ：Withint1.0mm
  • Diameter of Main Shaft：80mm
  • Roller Stations：18 Stations
  • Transport Package：Main Machine with Film by Container Shipping.
  • Specification：size: about 8.8*1.45*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

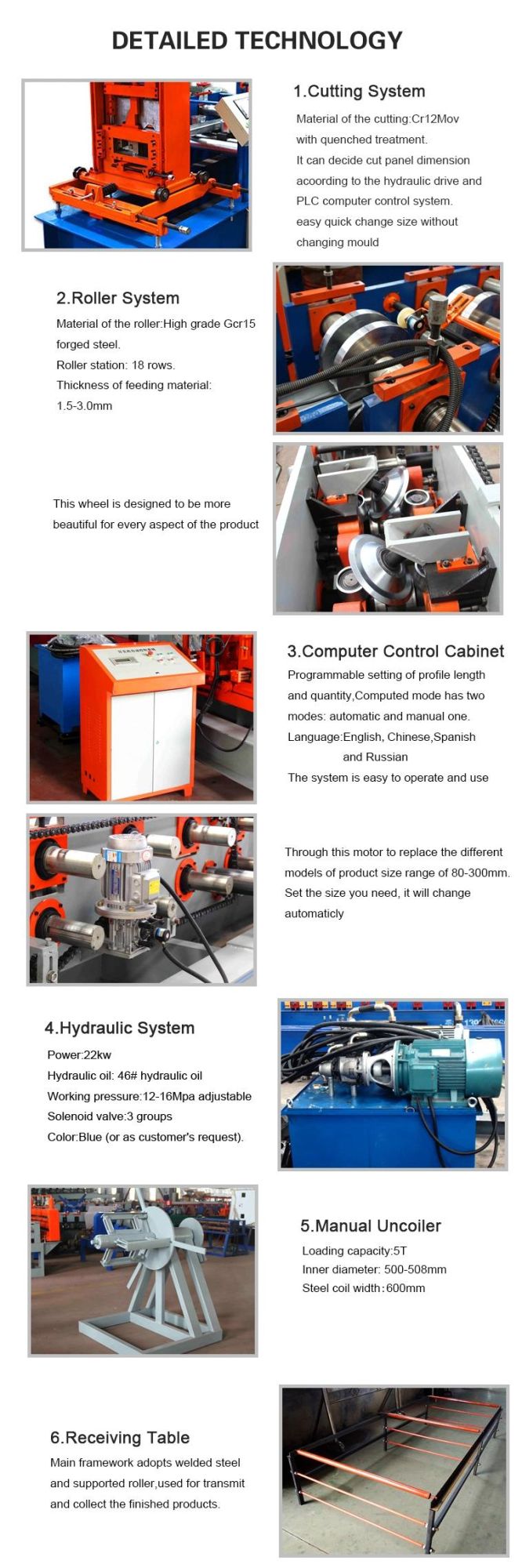

Description

Main parameters of Cable tray roll forming machine with full automatic punching and cutting system1Suitable to processsteel2Width of the feeding materialaccording to size of cable tray3Roller station18 rows4Thickness of feeding material0.8-1.5mm5Productivity0-15m/min6Rollers' material45# steel7Diameter of shaft80mm8WeightAbout 10T9Size9500*1500*1400mm10Voltage380V  50HZ  3phases11Wall thickness of main machine20mm steel plate12Main forming machine body300 mm H steel13Main motor power18.5 kw14Hydraulic cutting power5.5 kw
Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System

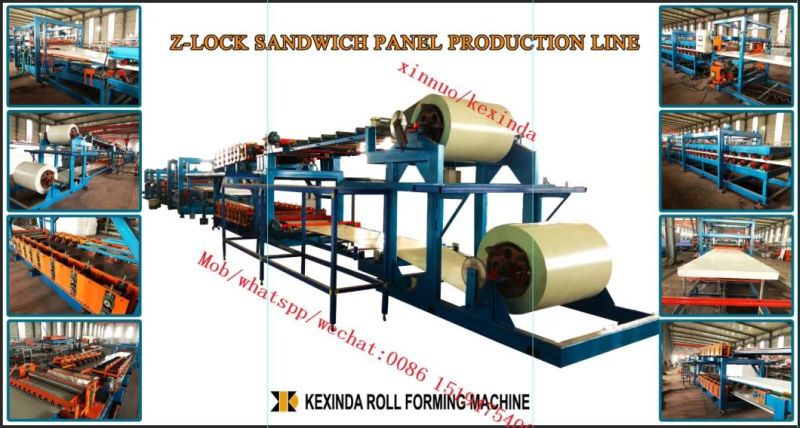

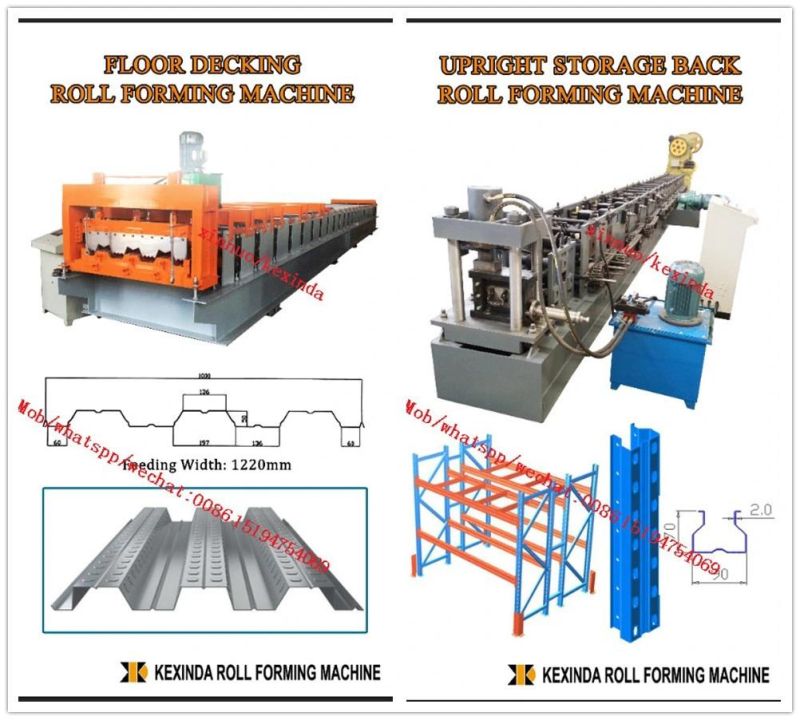

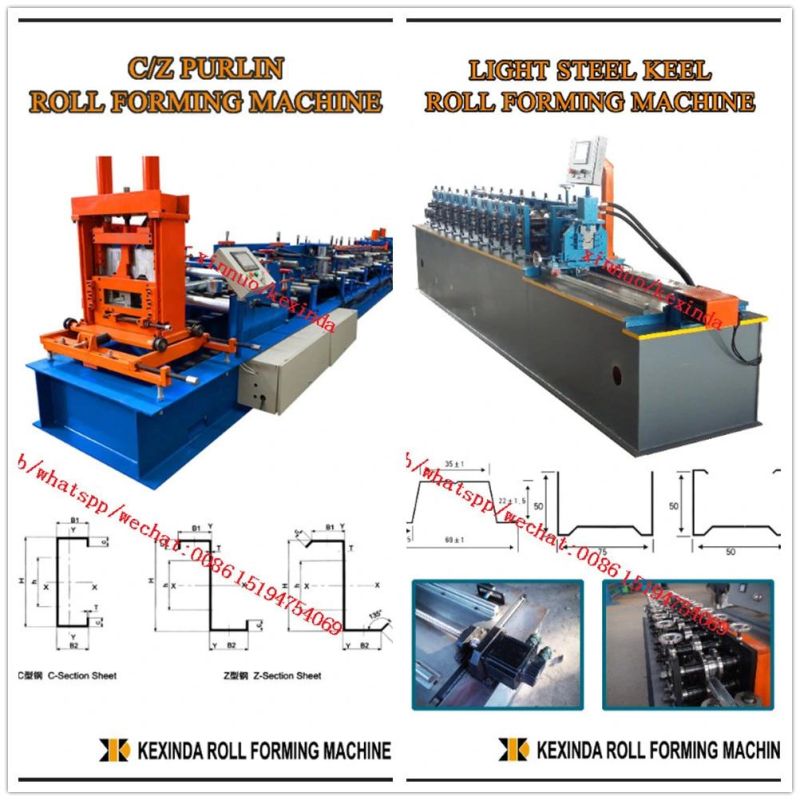

Hot sale machines in our company:
Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System
Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System
Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System
Cable Tray Roll Forming Machine with Full Automatic Punching and Cutting System

If you need any type of roll forming machine, please contact me at any time:
