• Product Name：Steel Profile C Purlin Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Product Name Steel Profile C Purlin Roll Forming Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Roller Station 12-18 Stations Driven Chain Transmission Forming Speed 10-15m/Min Punching Type Hydraulic Punching Cutting Type Hydraulic Post-Cutting Operation Type Touching Screen Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

Full Automatic Hydraulic Cutting Steel Frame Making Machinery Steel Profile C Purlin Roll Forming Machine




Technical parameters :

Product Name	Full Automatic Hydraulic Cutting Steel Frame Making Machinery Steel Profile C Purlin Roll Forming Machine

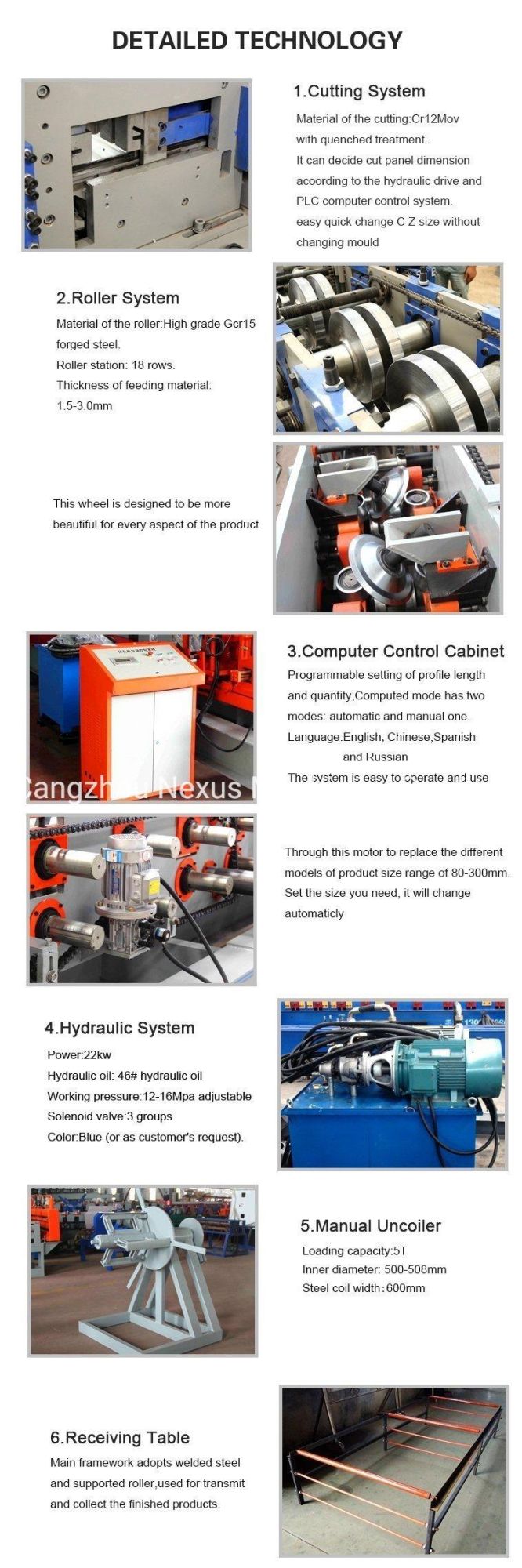

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	19.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min
Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm

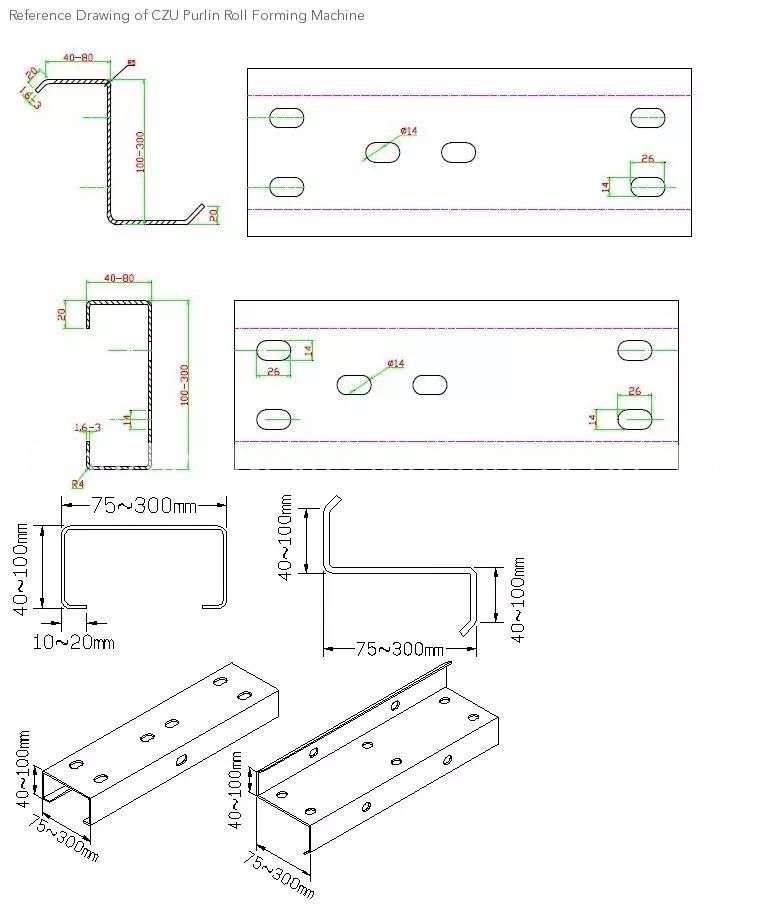

Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 6T
Custom	According to customer's requirements

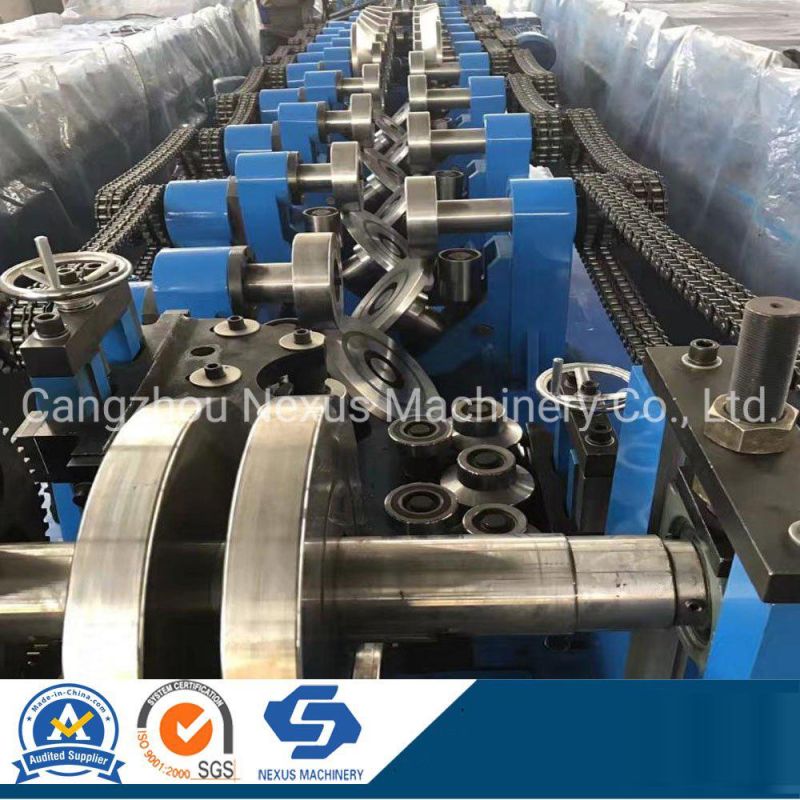

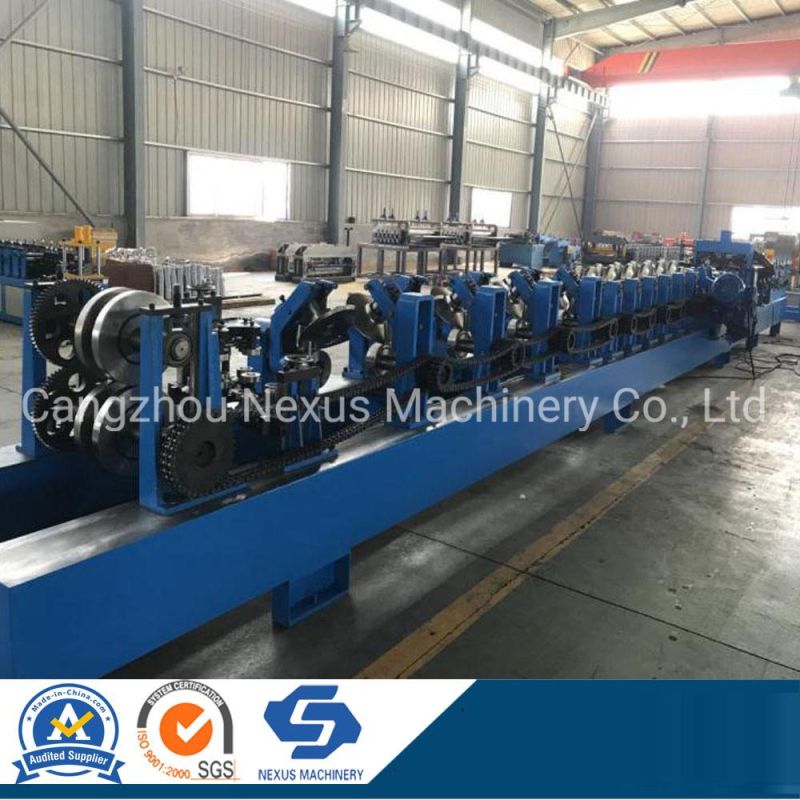

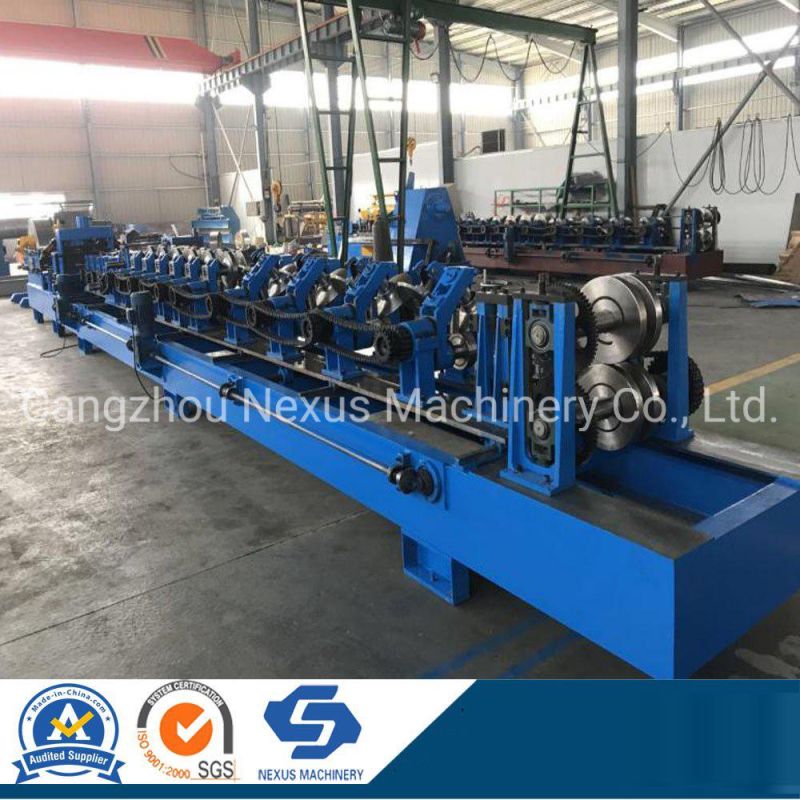

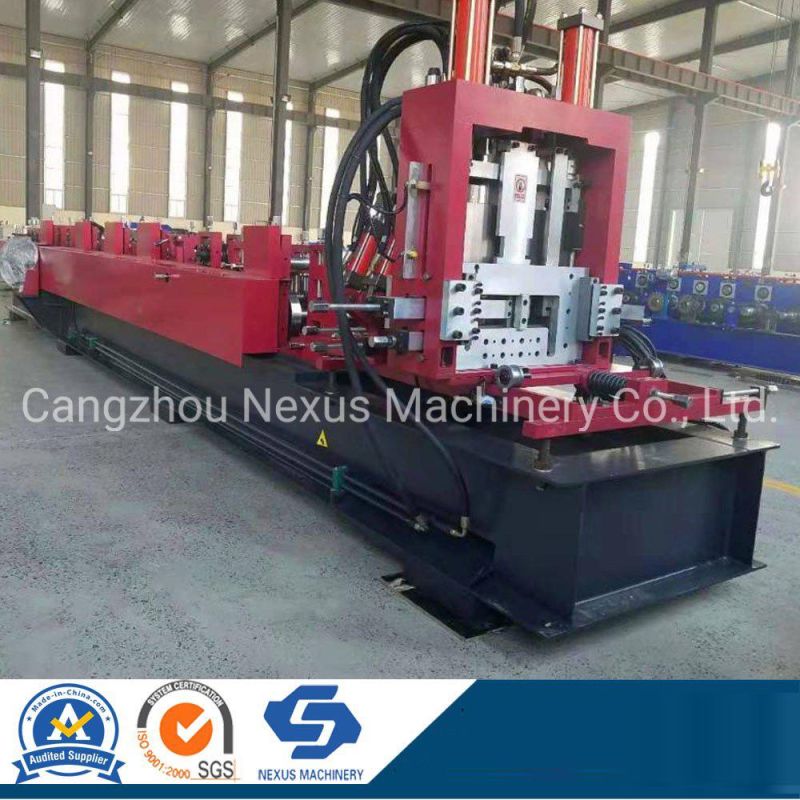

Photo for Full Automatic Hydraulic Cutting Steel Frame Making Machinery Steel Profile C Purlin Roll Forming Machine:







Exhibitions Photos:


ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
