• Model NO.：Sjmc02b
• Input Voltage：380V 50Hz
• Input Power：10.8kw
• Working Pressure：0.5~0.8MPa
• Air Consumption：330L,Min
• Saw Blade Speed：3000r,Min
• Saw Blade Specification：φ500*4.3*φ30mm
• Cutting Width Max：150mm (Single)
• Processing Profile Length Range：Max 6000 (Set According to User Needs)
• Dimensions：11900*4400*2400mm
• Weight：3600kg
• Transport Package：Wooden Box
• Specification：11900*4400*2400mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：4000 Window Per Day

Basic Info.

Model NO. Sjmc02b Input Voltage 380V 50Hz Input Power 10.8kw Working Pressure 0.5~0.8MPa Air Consumption 330L/Min Saw Blade Speed 3000r/Min Saw Blade Specification φ500*4.3*φ30mm Cutting Width Max 150mm (Single) Processing Profile Length Range Max 6000 (Set According to User Needs) Dimensions 11900*4400*2400mm Weight 3600kg Transport Package Wooden Box Specification 11900*4400*2400mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 4000 Window Per Day

Product Description

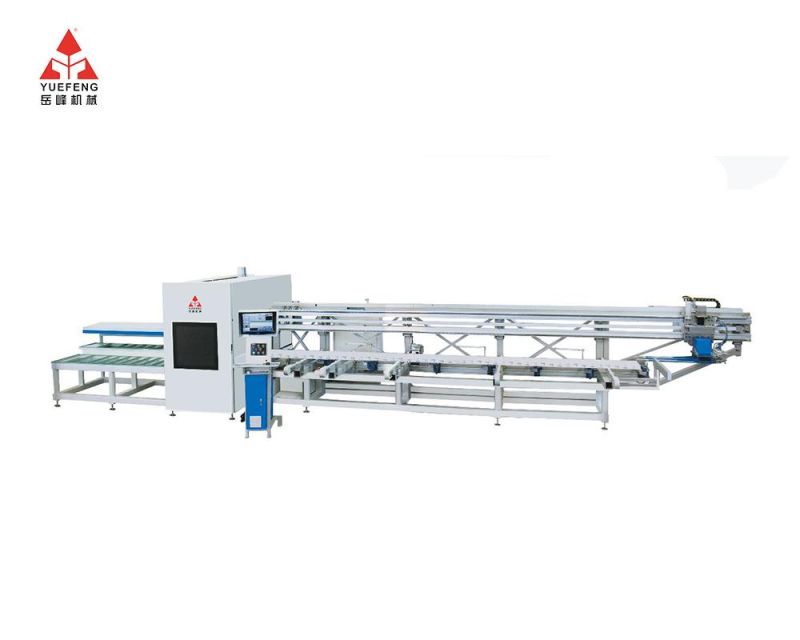

Aluminium and PVC Window Door CNC Cutting Center Machine

1. Automatically download and optimize the blanking data and process parameters, without manual input and adjustment
2. Automatically complete the clamping, feeding and cutting of profiles, with a high degree of automation
3. Equipped with a circulating feeding system, which greatly improves production efficiency
4. The manipulator can simultaneously clamp and complete the sawing of four profiles at one time, with high production efficiency
5. Imported spindle motor, high processing quality
6. Linear motion pair guide rail, high dimensional accuracy of processed products
7. Two-axis CNC, high degree of automation
8. Imported drive system, closed loop control, high processing accuracy
9. All imported high-quality electrical and pneumatic system components, stable and reliable
10. It can communicate with the host computer, automatically select processing tasks, and realize computer-aided design/manufacturing (CAD/CAM) flexibly
11. Barcode printer can be configured to print material identification in real time, realize process information identification, and facilitate material management (software support)
12. Equipped with automatic discharging system, simple and convenient operation
13. With automatic material head collection system, the working environment is clean and tidy
14. The height design of the console and the fuselage accords with the ergonomic principle, reducing the labor intensity
15.1 7-inch large control screen, equipped with a graphical interface, simple and intuitive operation
16. This machine is especially suitable for batch and high-quality production of complex window types

Parameter:


Input voltage	380V 50Hz
Input power	10.8KW
Working pressure	0.5~0.8MPa
Air consumption	330L/min
Saw blade speed	3000r/min
Saw blade specification	φ500×4.3×φ30mm
Cutting width max	150mm (single)
Processing profile length range	max 6000 (set according to user needs)
Cutting height frame fan profile	Frame profile ≤120mm Middle stile profile: 54~120mm V port depth: ≤60mm
The minimum cutting length of the stile section	frame fan section 400mm, the stile section 450mm
Dimensions	11900×4400×2400mm
Weight	3600kg

Main components:

In order to ensure the stability, reliability and service life of the equipment,
our company adopts standard Q235 steel welding frame and adopts the standard Q235 steel welding frame to ensure the stability,
reliability and service life of the equipment.



Accessory name	Brand	Brand Land
CNC system	Siemens system	Germany
monitor	Philips	Netherlands
PLC	OMRON	Japan
server Driver	Schneider	France
servo motor	Schneider	France
Temperature control meter	OMRON	Japan
Solenoid valve	EMC	Shanghai
cylinder	EMC	Shanghai
Low-voltage electrical appliances	Schneider	France
Saw blade	WAGEN	Japan
Ball screw	HIWIN OR ABBA	Taiwan
PU Air tube	ISAIAH	China
Time delay relay	Weidmuller	Germany

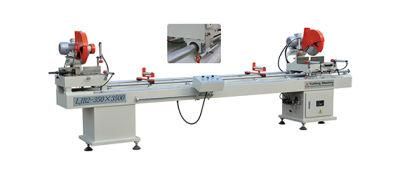

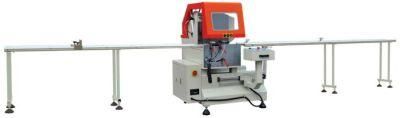

More machine details pictures




 FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
