• Model NO.：Qt4-24
• Mixer Model：Jq350
• Pallet Size：850*550*30mm
• Vibration Force：35.5kn
• Weight：3t
• Motor：Siemens Brand Motors
• Color：Customized
• Mould Technology：Heat Treatment
• Transport Package：Container
• Specification：2060*1730*2580mm
• Trademark：DUYUE
• Origin：China
• HS Code：8474802000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. Qt4-24 Mixer Model Jq350 Pallet Size 850*550*30mm Vibration Force 35.5kn Weight 3t Motor Siemens Brand Motors Color Customized Mould Technology Heat Treatment Transport Package Container Specification 2060*1730*2580mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 50 Sets Per Month

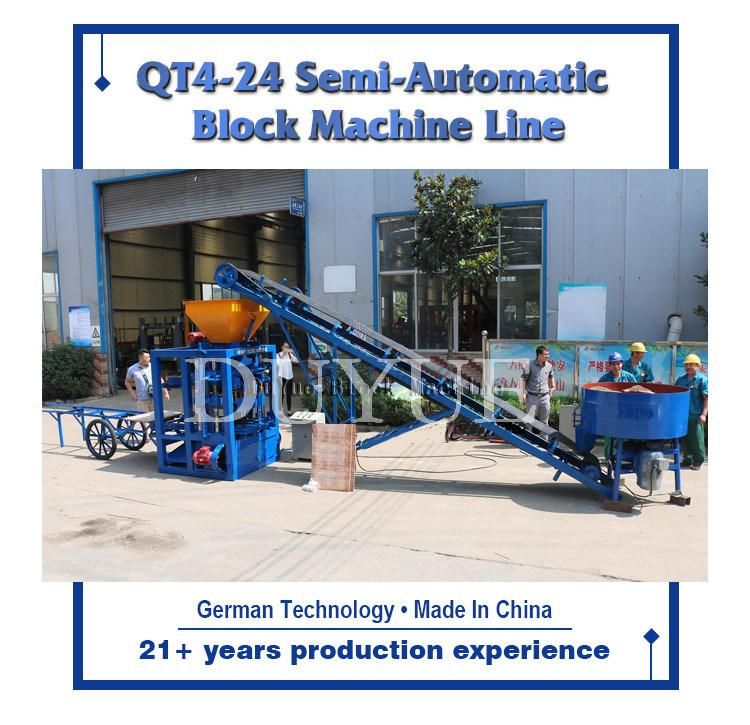

Product Description

Production description
1. Using the manual force control and jog control together, the operation is simple and efficient;
2. Using four polesoriented manner and ultralong orientation bear to ensure the precise movementof the pressure head and mould;
3. Using the ultra strong steel and special welding techniques,it is strong and of high resistancetovibration;

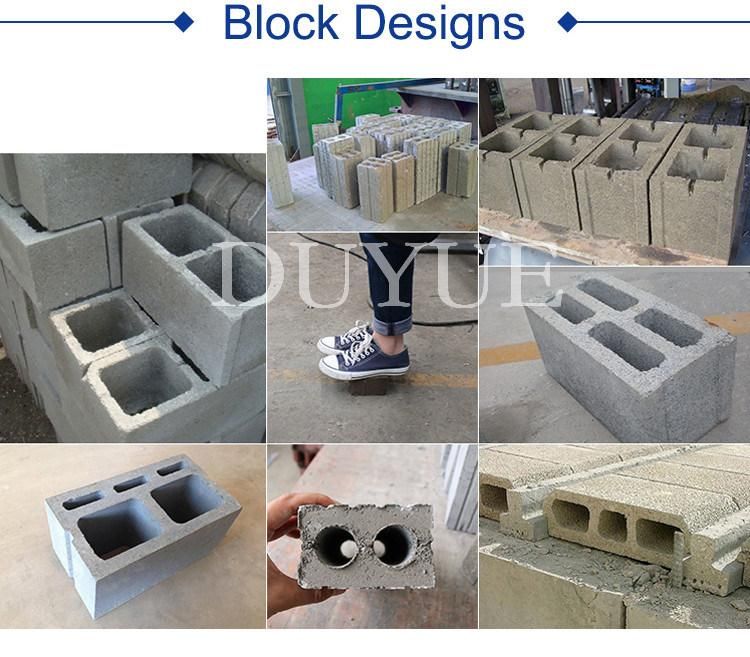

4. It is a multiuseful hollow block machine which could produce road blocks, curb stones, blocks,hollow bricks and other shapes of different specifications of concrete products via changing theblock mould;

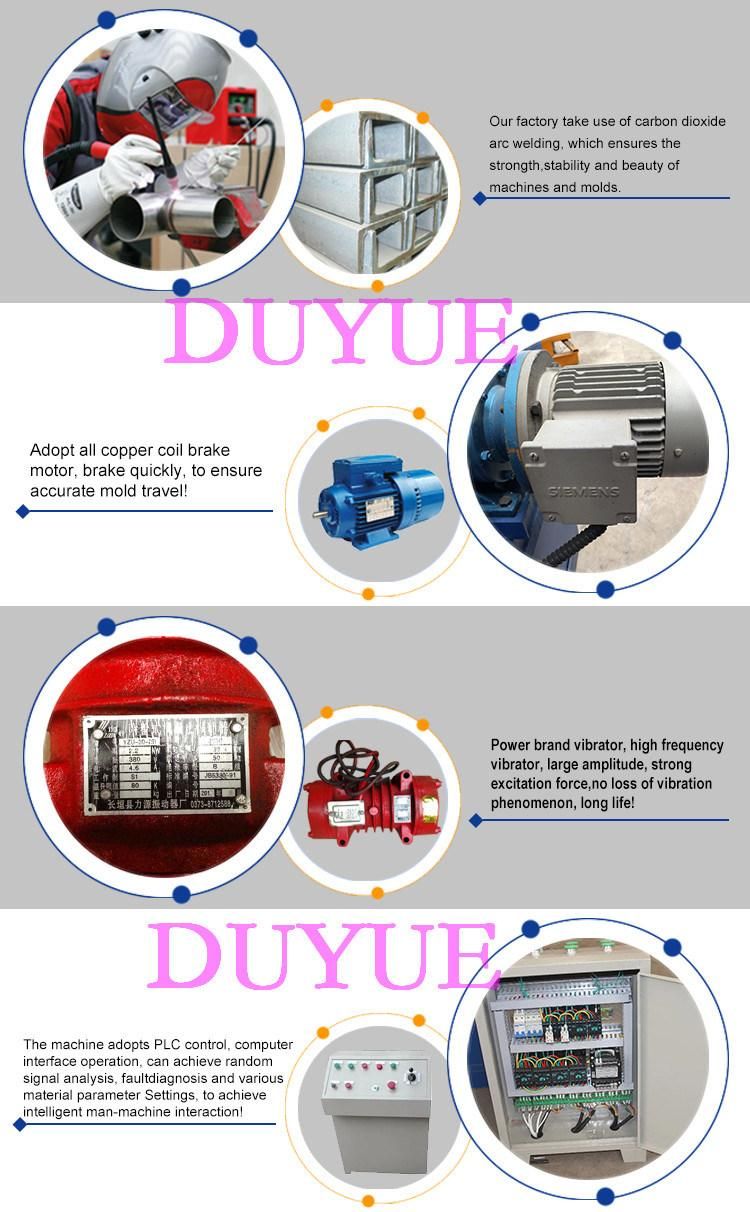

5. imported electrical appliances, sealing parts and parts of hydraulic components, the equipment'scomprehensive performance is stable and reliable;
6. Using mechanical drive, it is a collection of compact structure, easy maintenance, operationflexible and good reliability;
7. The products which produced by semi-automatic block machine are all of high strength,gooddensity, good appearance,accurate size and regular shapes;
8. The semiautomatic block forming machine can achieve high eficiency if utilizing large dosage offly ash and slag,could save you more investment and give you a fast turnover.

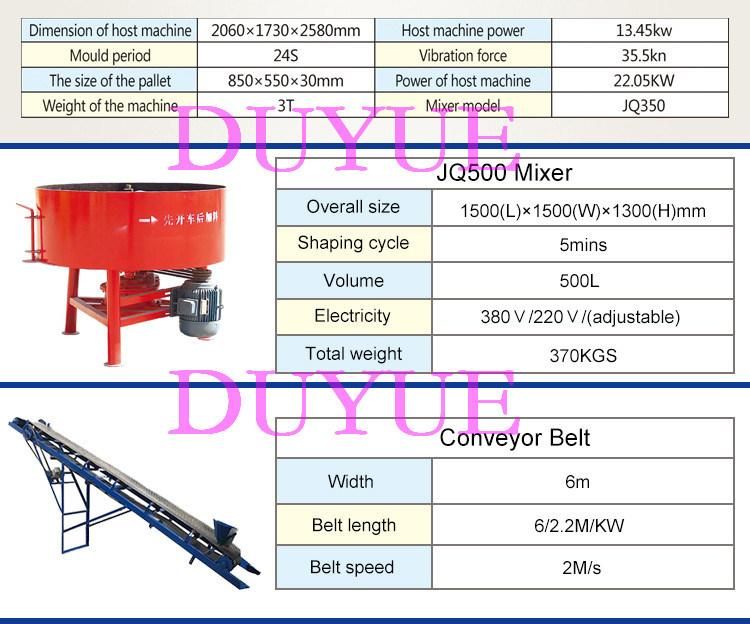

Main technical parameters

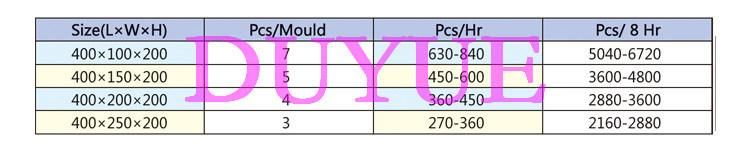

Theoretical production capacity
