• Model NO.：760
• Weight：7 Tons
• Thickness：0.16-0.2
• Width of The Plate After Forming：760
• Productivity Speed：10-12m,Min
• Drive Motor：7.5kw
• Output：2-4tons
• Control System：PLC
• Transport Package：Nude
• Specification：Galvanized
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. 760 Weight 7 Tons Thickness 0.16-0.2 Width of The Plate After Forming 760 Productivity Speed 10-12m/Min Drive Motor 7.5kw Output 2-4tons Control System PLC Transport Package Nude Specification Galvanized Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 500 Sets/Month

Product Description

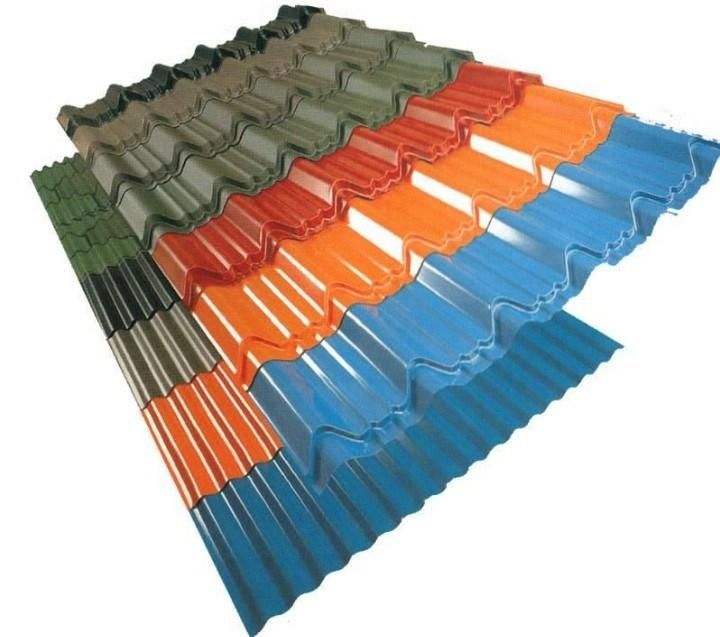

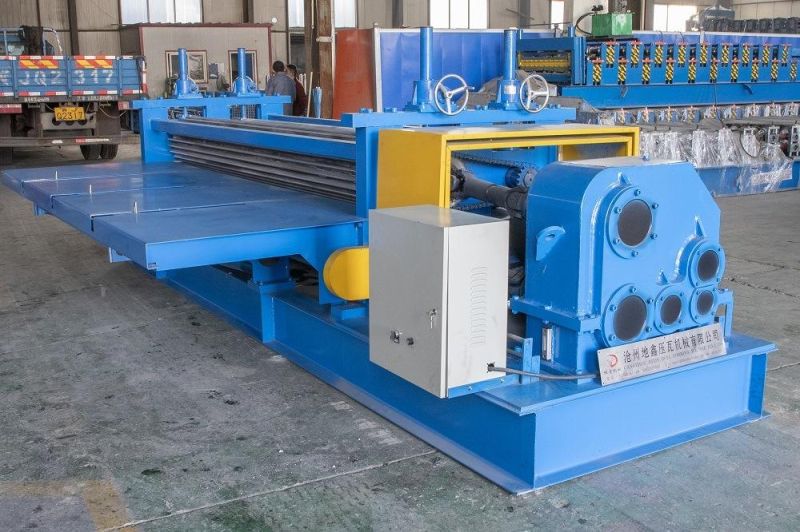

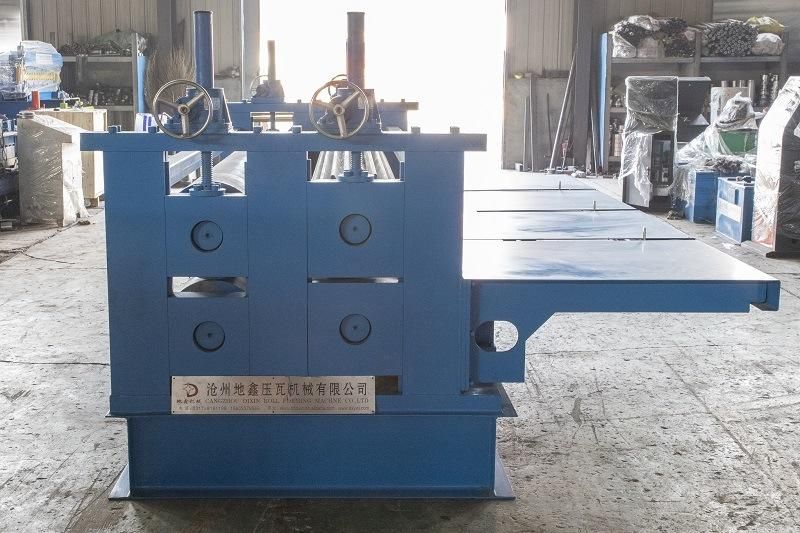

0.12-0.8mm Thickness Transverse Corrugated Color Steel Roof Tile roll forming machine

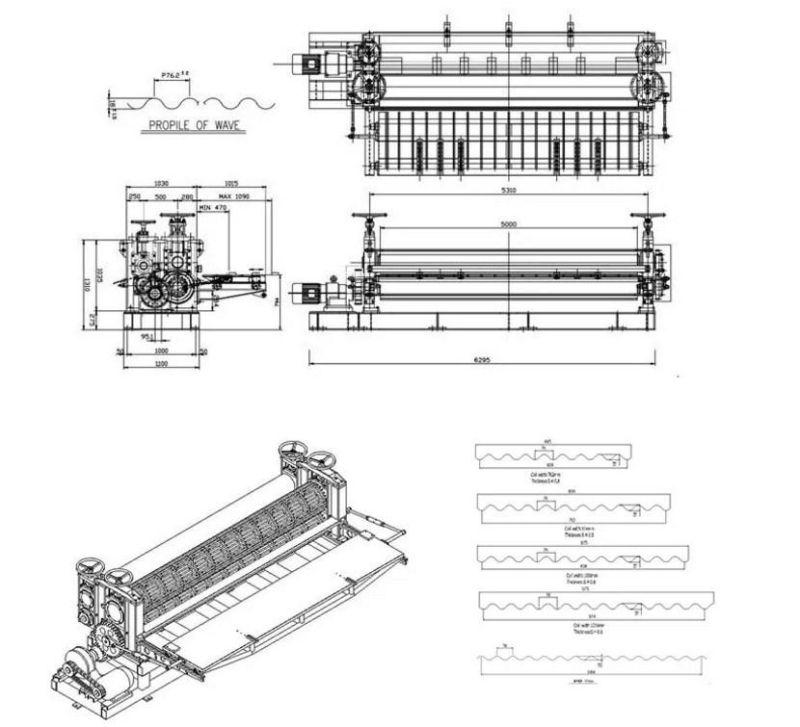

Technical parameter

(We can reasonably change the machine parameters according to your requirements)

(1) Suitable material: Full hard galvanized sheets

(2) Weight:7 tons

(3) Outline Dimensions :5400X2000X1500MM

(4) Thickness of the plate: 0.16-0.25 mm

(5) Input width of the plate:Based on detailed design

(6) Width of the plate after forming:Based on detailed sizes

(7) Productivity Speed:10-12times/min

(8) DEPTH OF WAVE: Can customize based on you need

(9) PITCH OF WAVE:Can customize based on you need

(10) DRIVE Motor:7.5KW

(11) OUTPUT:2-4 TONS PER HOUR

(12) CORRUGATION PARAMETERS:The tolerance of the width, depth, No,of waves of the roofing sheet after corrugated in accordance with JIS G3316 (1987) standard.



Working flow

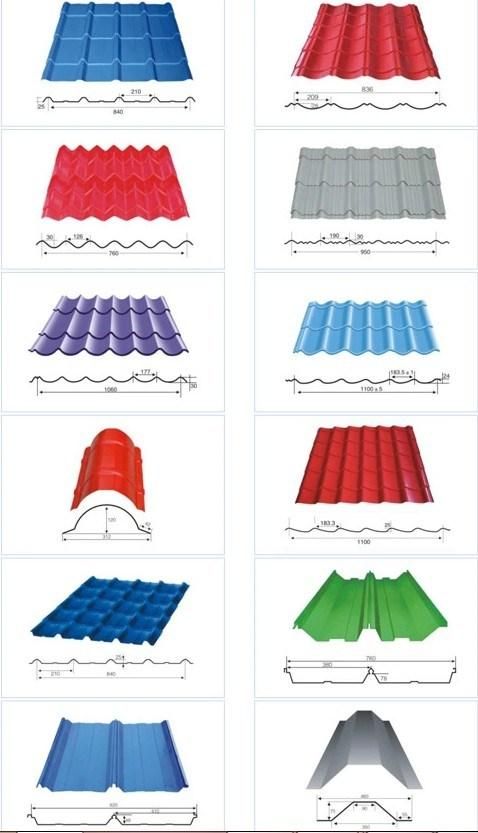

More type






Our service

1.We can produce the specialmachine,send your drawing to us,we can desgin for you.

2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100

4. Engineer available to service machinery overseas.

5. If you come to visit our factory ,we can book the room for you,car pick up to send.

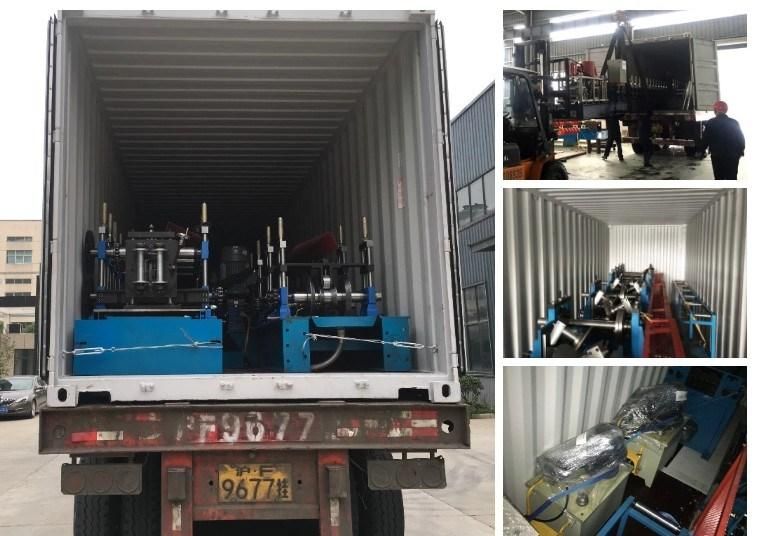

Packaging & Shipping



1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
