Automatic Aluminum Window Corner Key Cutting Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
- Voltage:380V
- Model:Ljmj-CNC-500d
Base Info
- Model NO.:LJMJ-CNC-500D
- Input Voltage:380V 50Hz
- Input Power:3.0kw
- Air Pressure:0.5~0.8MPa
- Air Consumption:120L,Min
- Spindle Speed:3200r,Min
- Saw Blade Standard:500X4.4X30xz120
- Saw Feeding Speed:0~3m,Min
- Cutting Height:120mm
- Auto Feeding Length:3~350mm
- Overall Dimension:1700X1600X1400mm
- Transport Package:Plastic Cover or Plywood Cases
- Trademark:YUEFENG
- Origin:Jinan, Shandong, China
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. LJMJ-CNC-500D Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.5~0.8MPa Air Consumption 120L/Min Spindle Speed 3200r/Min Saw Blade Standard 500X4.4X30xz120 Saw Feeding Speed 0~3m/Min Cutting Height 120mm Auto Feeding Length 3~350mm Overall Dimension 1700X1600X1400mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Jinan, Shandong, China Production Capacity 100 Sets Per MonthProduct Description

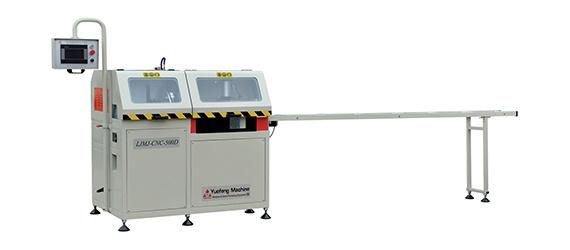

LJMJ-CNC-500D CNC Corner Connector Saw1.Used for cutting aluminum connectors.
2.It controlled by ball screw and CNC system result high efficiency.
3.Recording system record the numbers already cut.
4.Automatic feeding system, can cut over-lengthy profiles.
5.Imported carbide saw blade gives accurate processing, reliability and high durableness.
6.Clamping and feeding process adopt pneumatic control, it has features of high automation, reliability and production efficiency.
Model | LJMJ-CNC-500D |
Input voltage | 380V 50Hz |
Input power | 3.0Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 120L/min |
Spindle speed | 3200r/min |
Saw blade standard | φ500×4.4×φ30×Z120 |
Saw feeding speed | 0~3m/min |
Cutting height | 120mm |
Auto feeding length | 3~350mm |
Overall dimension | 1700×1600×1400mm |
