• Model NO.：QT4 26
• Mixer：Jq500
• Products Available：Hollow Blocks, Paving Stones, Kerbstones, Hourdis
• Shaping Cycle：25-30 Seconds
• Machine Weight：3 T
• Pallet Size：850*550mm
• Shift Capacity：70m3
• Rated Power：21kn
• Electrical Source：380V,50Hz
• Power：17.9kw
• Over Size：3600*1650*2200mm
• Factory Area：1000-1500m2
• Worker Numbers：5-6 Workers
• Belt Conveyor：6 M
• Transport Package：Nude Pack in Full Container
• Specification：235# steel for machine frame
• Trademark：CYUN
• Origin：China
• HS Code：8474802000
• Production Capacity：5760-28800PCS , Year

Basic Info.

Model NO. QT4 26 Mixer Jq500 Products Available Hollow Blocks, Paving Stones, Kerbstones, Hourdis Shaping Cycle 25-30 Seconds Machine Weight 3 T Pallet Size 850*550mm Shift Capacity 70m3 Rated Power 21kn Electrical Source 380V/50Hz Power 17.9kw Over Size 3600*1650*2200mm Factory Area 1000-1500m2 Worker Numbers 5-6 Workers Belt Conveyor 6 M Transport Package Nude Pack in Full Container Specification 235# steel for machine frame Trademark CYUN Origin China HS Code 8474802000 Production Capacity 5760-28800PCS / Year

Product Description

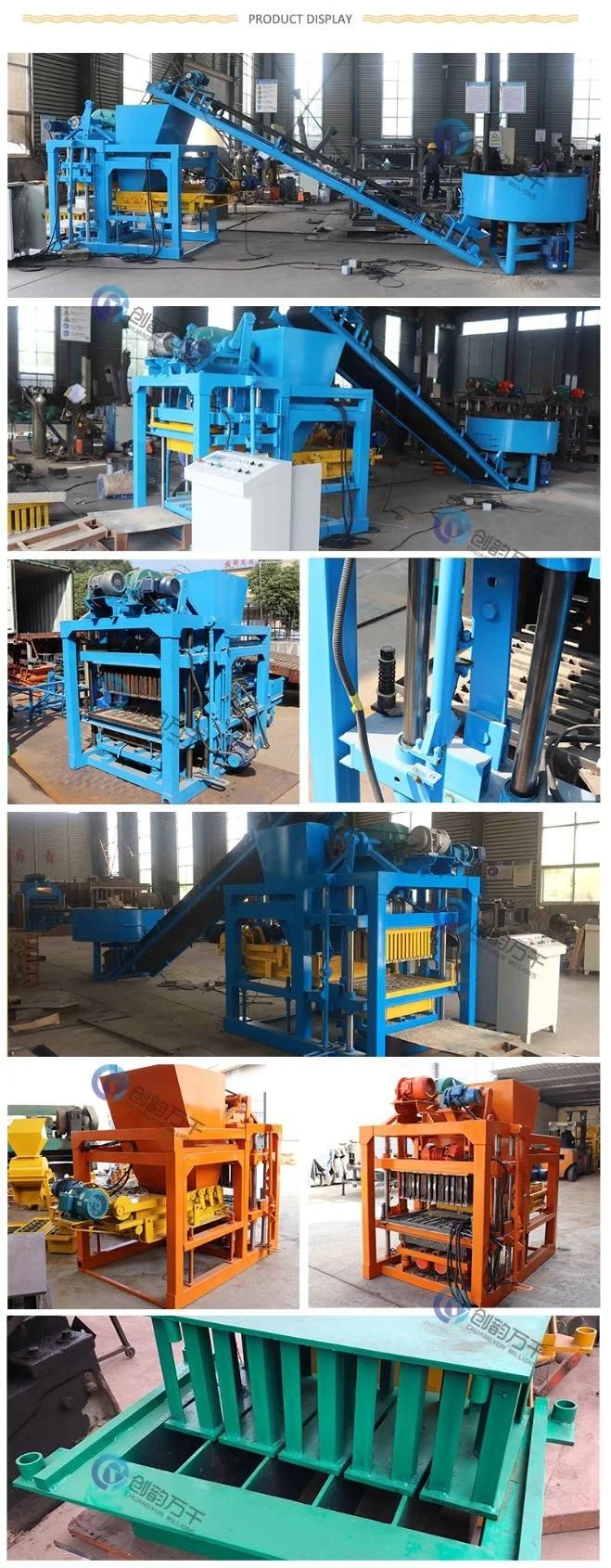

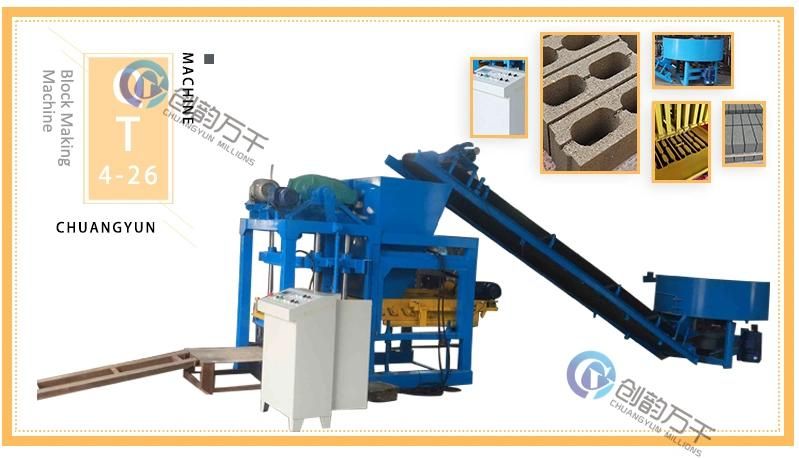

Semi-automatic block making machine for concrete production in Congo(QT4-26)

Machine description:



Main technical parameters:

Dimension of host machine	Host machine power	Mould Period	Vibration force	Pallet Size	Mixer Model	Workshop Area	Weight
1850*1880*2240mm	11.95Kw	25-30s	35.5KN	580*550*25mm	JQ350	160m2	1.51T
