• Model NO.：JYX-01
• Pump a Barrel Diameter：570mm
• Pump a Volume：200L
• Pump B Barrel Diameter：280,295mm
• Pump B Volume：20L
• Supply Gas Pressure：0.6-0.8 MPa
• Ratio Rang：7:1 - 13:1
• Max. Extruding Glue Quantity：1L,Min
• Work Pressure：0.5-0.8MPa
• Quantity of Gas：0.83,Min
• Outline Dimension：1160*1040*2640mm
• Total Weight：580kg
• Usage：Insulting Glass Production
• Function：Double Glazing Glass Production
• Application：Insulating Glass Coating Machine
• Transport Package：Standard Wooden Box Package
• Specification：JYX-01
• Trademark：TRUEPRO
• Origin：China
• HS Code：8475299000
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. JYX-01 Pump a Barrel Diameter 570mm Pump a Volume 200L Pump B Barrel Diameter 280/295mm Pump B Volume 20L Supply Gas Pressure 0.6-0.8 MPa Ratio Rang 7:1 - 13:1 Max. Extruding Glue Quantity 1L/Min Work Pressure 0.5-0.8MPa Quantity of Gas 0.83/Min Outline Dimension 1160*1040*2640mm Total Weight 580kg Usage Insulting Glass Production Function Double Glazing Glass Production Application Insulating Glass Coating Machine Transport Package Standard Wooden Box Package Specification JYX-01 Trademark TRUEPRO Origin China HS Code 8475299000 Production Capacity 200 Sets/Year

Product Description

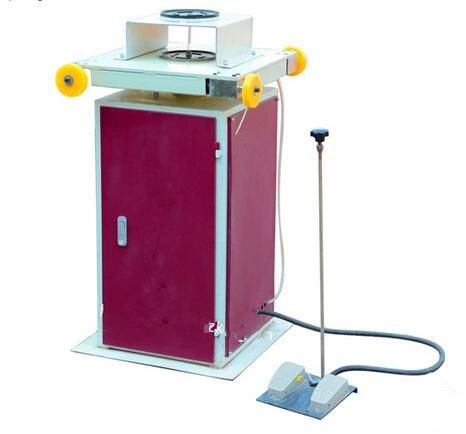

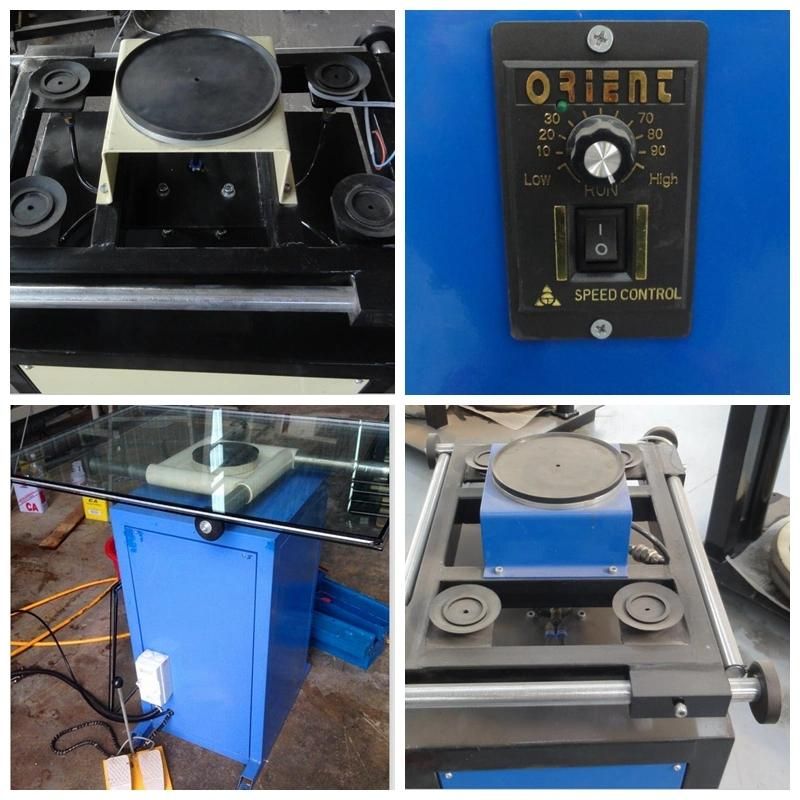

Insulating Glass Making Machinery Rotating Table for Rubber Spreading

Equipment Featrues:

1.Rotary Rubber-spreading Machine is the special equipments which seals insulating glass in the level position and
apply with Two-component Extruder.

2.This machine is easy to operate. Place the glass on the rotating Table and the glass will be absorbed by the sucker.

3.Rotating through the foot-switch control, is very easy to seal.

4.Pressed down the gas foot-switch after the completion of sealant, the sucker would be released and the glass
could be removed.

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

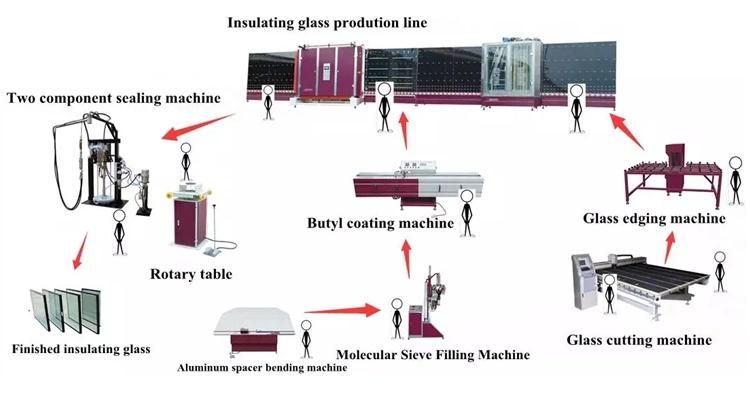

4. Insulating glass production line
