Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：Electric
  • Automatic Grade：Automatic

Base Info

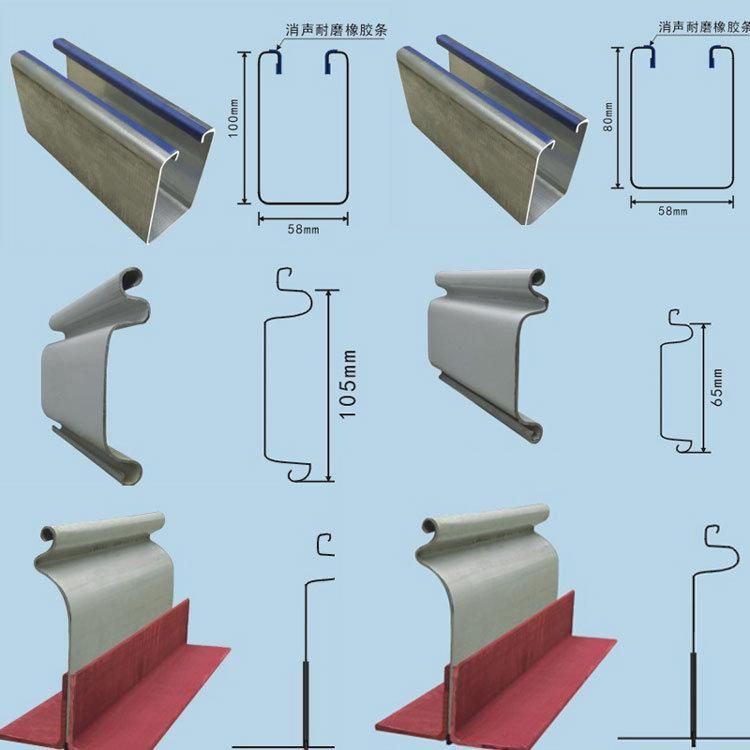

  • Product Name：Roller Shutter Door Slat Roll Forming Machine
  • Coil Material Thickness：0.8-1.2mm
  • Processing Material：Galvanized Steel
  • Roller Material：Cr12MOV
  • Formed Material：Gi,Ai
  • Equipment Operation：Automatic
  • The Size of The Roll Forming Machine：5000mmx800mmx1400mm
  • Speed：8-15m,Min
  • Diameter of Shaft：40mm
  • Motor Brand：Siemens or Guomao
  • Total Power (Kw)：8kw
  • Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
  • Trademark：Nexus Machinery
  • Origin：Cangzhou
  • HS Code：8455221000
  • Production Capacity：10

Description

No.

Item

Specification

1

 Formed Material

GI,AI

2

Equipment operation

Automatic

3

Voltage

380V 60Hz 3Phase or as your requirement

4

Thickness of sheet (mm)

0.8-1.2mm

5

Material width(mm)

As your requirement

6

Cover Width of the sheet after formed

as your drawing

7

The size of the roll forming machine

5000mmx800mmx1400mm

8

Speed

8-15m/min

9

Diameter of shaft

40mm

10

Weight of the Machine

3000-3500KGS

11

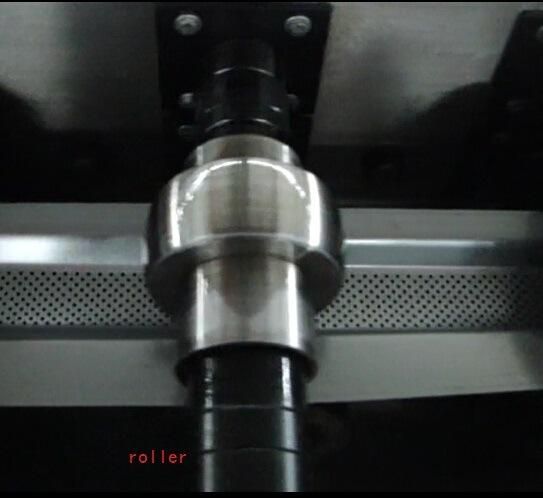

Material of rollers

C45 steel quenched and chromed

12

Motor brand

Siemens or Guomao

13

PLC

Siemens or Delta or Mitsubushi

14

Total power (kw)

8kw

15

Power of hydraulic system

4kw

16

Power of main molding core

4kw


Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine
Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine
Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine
Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine
Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine
Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine

ABOUT US:

Perforated and Unperforated Roller Shutter Door Slat Roll Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
