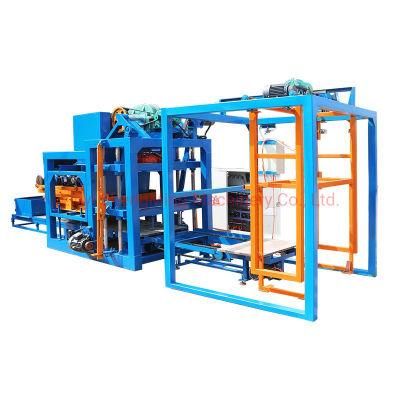

Qt10-15 Fully Automatic Concrete Hollow Block Machine Cement Brick Making Machine

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • After-sales Service：Provided
  • Warranty：3 Years
  • Certification：ISO
  • Customized：Non-Customized
  • Automatic Grade：Automatic
  • Type：Concrete Iron Molding Machinery

Base Info

  • Model NO.：QT10-15 Brick Making Machine
  • Dimension of Host Machine：5800*2100*3100
  • Weight of Host Machine：9800kg
  • Moulding Area：1196*880
  • Power of Host Machine：41.6kw
  • Viberating Force：100kn
  • Pallet Size：960*850*30mm
  • Type of All Kinds of Products：Paver, Curbstone Hollow Block, Solid, and Curbston
  • Capacity：24000PCS for 400*200*200mm Hollow Block
  • Method：Hydraulic Pressure
  • Processing：Brick Molding Machine
  • Transport Package：Suitable for Sea Transportation
  • Specification：ISO CE SGS SONCAP
  • Trademark：Raytone Machinery
  • Origin：Linyi Shandong
  • HS Code：84748090
  • Production Capacity：24000 PCS of 40*20*20cm Per Day

Description

 Main Technical Parameters of other types  QT10-15 QT8-15 QT6-15BQT5-15 QT4-15B Type Automatic Automatic Automatic Automatic AutomaticSize of Host Machine 3500*2300*2930 3500*1700*2930 3500*1700*2930 3500*1700*2930 4300*1850*2600Weight of Host Machine 9.8T 8.5T 8T 4.5T 5.4TMolding Area 1196*880 936*880 861*880 1060*630 1016*600Water Consumption 10-20T/DAY 5-10T/DAY 5-8T/DAY 5-6T/DAY 5-6T/DAYWorkshop 260M2 260M2 260M2 200M2 200M2Power of Host Machine 37KW 29.1KW 29.1KW 26.65KW 21.8KWVibration Force 100KN 60-80KN 50-60KN 45-55KN 40-50KNModel of Mixer JS750 JS750 JS500 JS500 JS500Forming Period 15-20S 15-20S 15-20S 15-20S 15-20SPallet Size 1300*900*30 980*900*25 830*940*25 1130*600*30 1010*550Voltage  380/415/440V 380/415/440V 380/415/440V 380/415/440V 380/415/440V
7.After-sale Service
We have our own technican team to do the machine installation for automatic brick machine line, and for some semi-automatic or manual block machine, normally user can operate the machine well, if technician is requreted, we can also meet the deamnd.
 And we provide 7*24 hours online service during after and before sales service.

8. FAQ
(1)Packing method ?
  Nude packing, or in plastic clothes, or in plywood box, accordingly.
(3) What kind of steel my machine and molds use ?
   Q235B for machine, Mn steel for molds. More durable.
(4) Will you send engineer to install for user?
   Yes, we have technician service team. They will supply service as per needs.
(5) Are there any spare parts together with the machine ?
  Yes, we will send spare parts together with machine, the user could use more than two years.
(6)Do you supply free technical service during later production ?
   Yes, we have online technical service in 24hours.
(7) What is the Warranty for the machine?
 For the machine,we have 1 years warranty(except the wearing part ).If any quality
problems on our side occured in this period ,we will take on the shipping cost and replacement.
