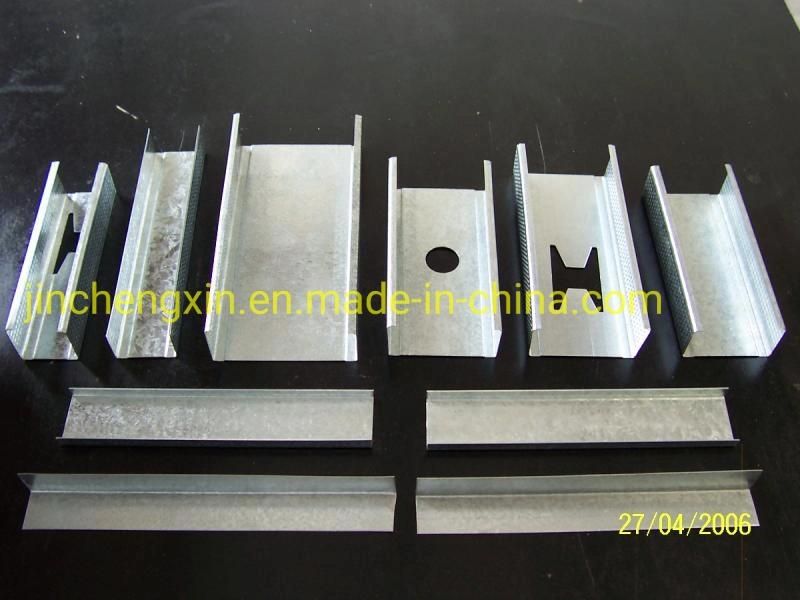

C U T Ceiling Grid Wall Angle Drywall Corner Light Keel Steel Frame Roll Forming Roof Roofing Sheet Tile Making Machine
Botou Golden Integrity Roll Forming Machinery Co., Ltd.- Tile Type:Colored Steel
- Certification:CE, ISO, ISO9001: 2000
- Condition:New
- Customized:Customized
- Usage:Stud
- Transmission Method:Machinery
Base Info
- Model NO.:28*27
- Type:Metal Roll Forming Machine
- Forming Stations:10
- Shaft:50
- Power:4kw
- Pump:4kw
- Material Thickness:0.4-1mm
- Speed of Machine:40meters,Min
- Color of Machine:Blue or as Your Request
- Control Box:PLC
- Voltage of Machine:380V
- Transport Package:According to Customers′ Request
- Specification:Jcx
- Trademark:jcx
- Origin:China Hebei
- HS Code:84552210
- Production Capacity:40 Sets Per Month
Description
Basic Info.
Model NO. 28*27 Type Metal Roll Forming Machine Forming Stations 10 Shaft 50 Power 4kw Pump 4kw Material Thickness 0.4-1mm Speed of Machine 40meters/Min Color of Machine Blue or as Your Request Control Box PLC Voltage of Machine 380V Transport Package According to Customers′ Request Specification Jcx Trademark jcx Origin China Hebei HS Code 84552210 Production Capacity 40 Sets Per MonthProduct Description

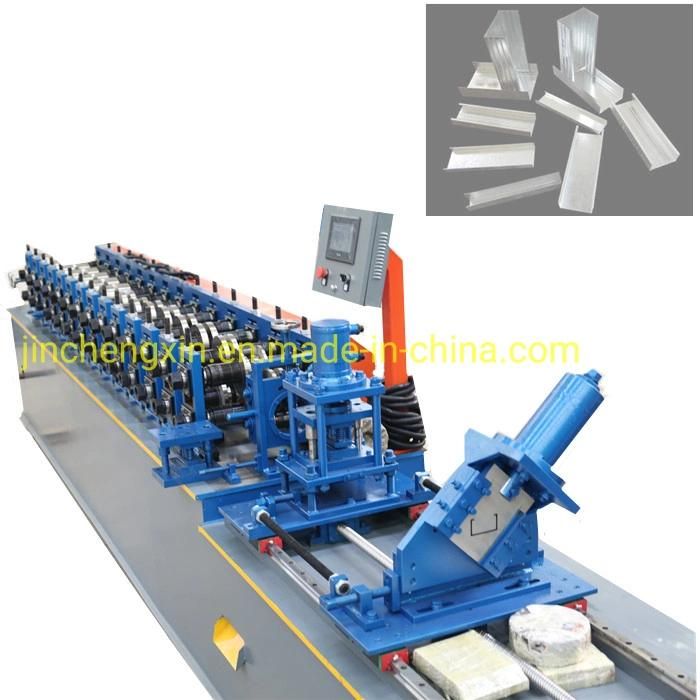

Double furring channel roll forming machineMan-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter
Technique parameters of the processing line
(1) Suitable material: colored steel or galvanized steel
(2) Thickness of the plate :0.9mm-1.5mm
(3) Output size:
(4) Productivity :40-45m/min

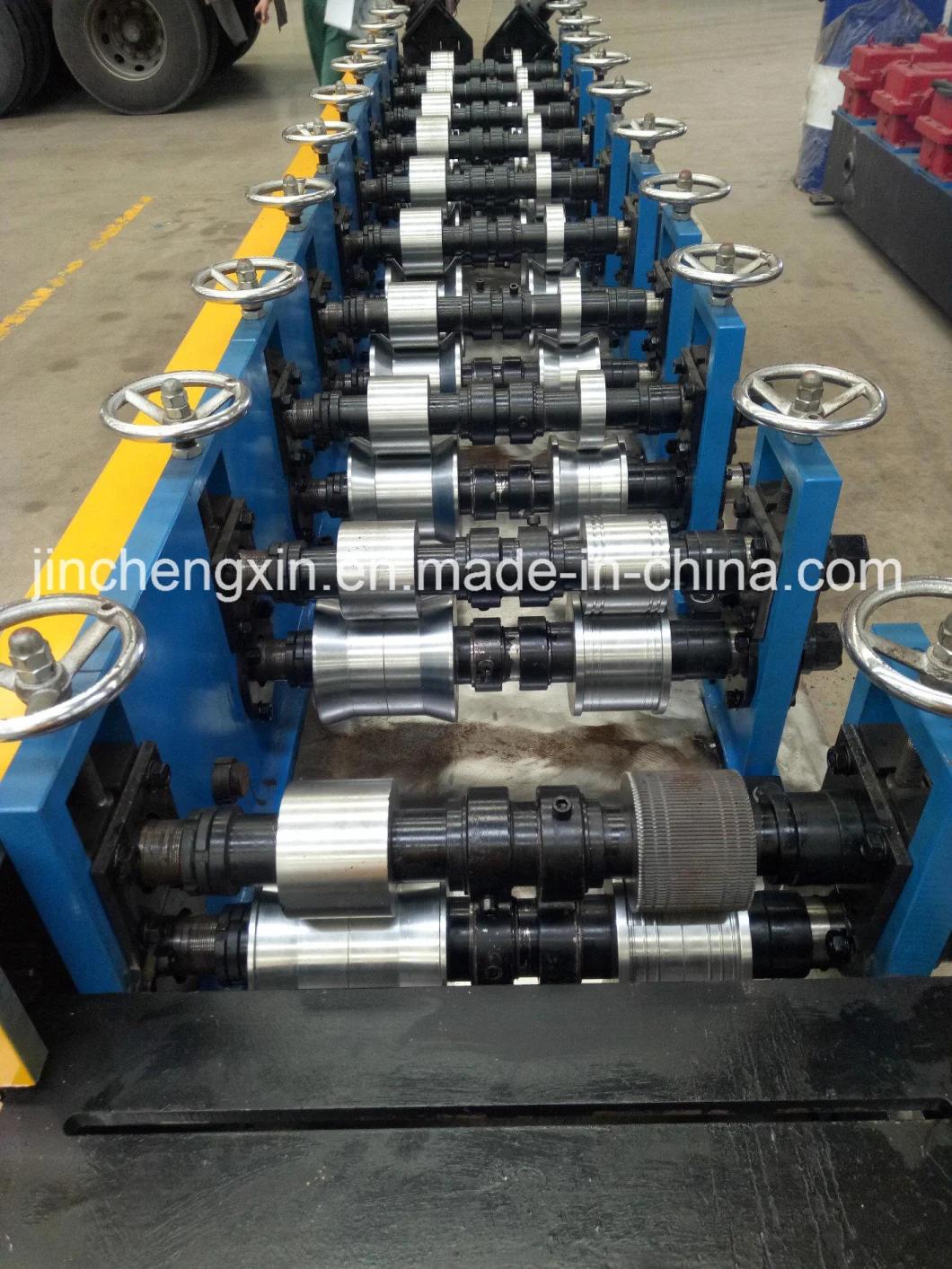

(5) Roller steps :12 rows
(6) Roller material: 45# steel Forming mold material is Cr15 heat treated HRC54-56.
(7) Diameter of active shaft:50mm
(8) Main power :5.5kw JZQ250 Reducer gear transmission
(9)Cutting system: Flying hydraulic chop saw
(10) pump power is 4kw
(11)Flying hydraulic chop saw motor: 5.5kw-2gread
(12) control system: PLC control
(13)Twist leveling
Components of line:
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |

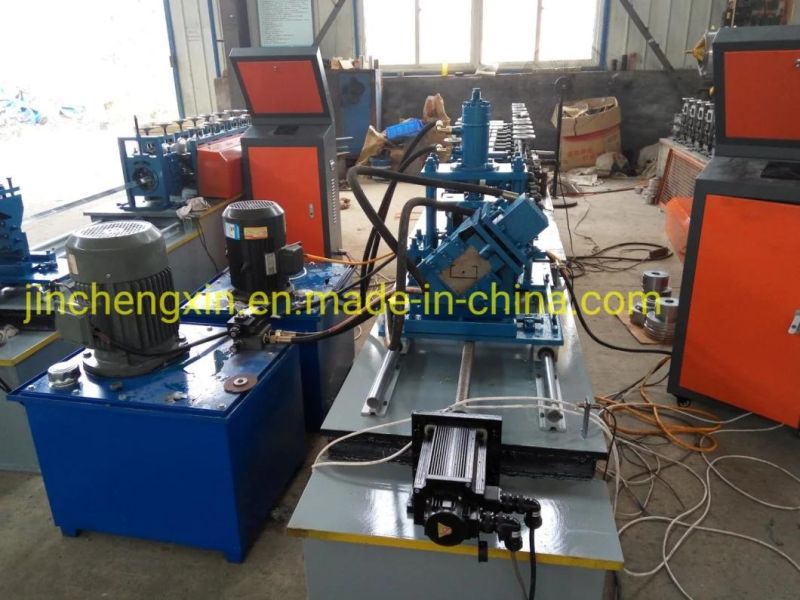

4 | Hydraulic system | set | 1 |
5 | Hydraulic fly saw Post cut | set | 1 |
6 | Output table | set | 1 |
