• Model NO.：copper roof machine
• Material：PPGI,Aluminum
• Forming Stations：18
• Power：5.5+4kw
• Voltage：380V
• Control System：PLC Control
• PLC Brand：Panasonic ,Mitsubishi
• Type：Tile Making Machine
• Method：Assembling
• Processing：CNC Processing
• Transport Package：According to Customers′ Request
• Specification：Jcx
• Trademark：JCX
• Origin：China Hebei
• HS Code：8455211000
• Production Capacity：40sets Per Month

Basic Info.

Model NO. copper roof machine Material PPGI/Aluminum Forming Stations 18 Power 5.5+4kw Voltage 380V Control System PLC Control PLC Brand Panasonic /Mitsubishi Type Tile Making Machine Method Assembling Processing CNC Processing Transport Package According to Customers′ Request Specification Jcx Trademark JCX Origin China Hebei HS Code 8455211000 Production Capacity 40sets Per Month

Product Description

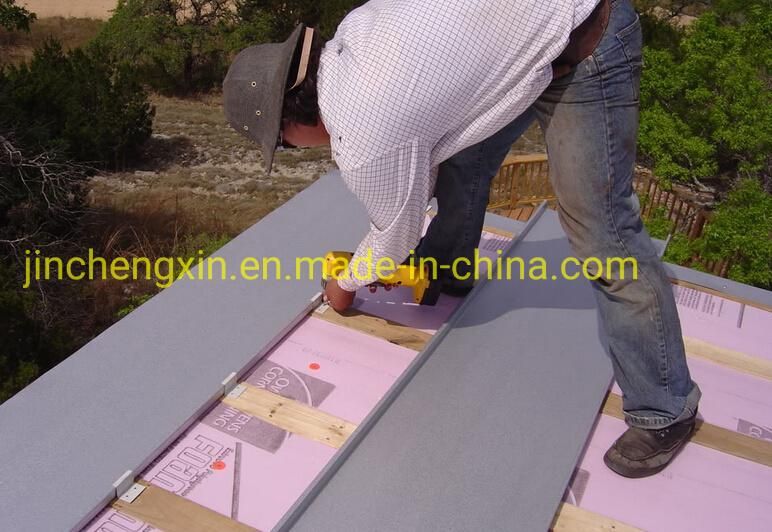

Ghana Portable Clip Snap Lock Standing Seam Roll Forming Machineour portable standing seam roll forming machine can be used at worksite,adjustable width,one inch or 1.5inch depth.With control box,and hmi,work in auto and manual way.This clip lock standing seam is with good protection of house and easy installation.TECHNICAL PARAMETERS

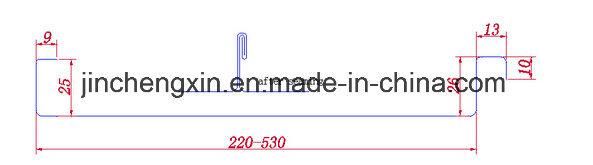

Standing seam roof panel specification:


1)Material:galvanized coil,ppgi,cooper,aluminium,al-mg-mn alloy
2) Thickness of material:0.5-0.8mm
3)Yield strength:235-340mpa)




1.Main technical conditions of the forming line:
Temperatura: -10 ºC ~ 35 ºC(Temperature:-10ºC~35ºC)
Voltage:110volt 60Hz or 220volt 60Hz(or according to customer request
Air pressure:0.6~1.2Mpa
Total Power:≈4.5kw)
Color:
Production capacity:0-15meters/min(without cutting)
Dimension (L*W*H): L≈ 1.6 m, W≈ 1.5 m, H≈ 1.2 m
1.Flow Chart of roll forming machine:)


2.Main components:

No.	Components Name	Unit Set/Pcs	Marks
1	3-4 tons manual uncoiler	1
2	Feeder	1
3	Roll Forming Machine	1
4	Electrical control system	1
5	Hydraulic Guillotin	1
6	Electric seamer	1
7	Receiving table	1
8	Bending machine	1
9	Spare parts	1
10	Technical Manual	1
11	Customized container	1

3.Photos of Machine:
Manual cutting standing seam roll former

Auto cutting standing seam roll former



4.Technology parameters:
The weight of machine is about0.8tons)
The total dimension of machine:1800(L)*1500(W)*1200mm(H)
4.1  4 TONS Manual uncoiler: 1SET

Capacity of uncoiler:3-4tons
Expansion of segment:manual
Rotation of segment:manual
Number of segment:4
Range of segment expansion:480-520mm
4.2 Feeding
Entrance and adjustable wheel
Qty: 1
4.3Main forming machine
It adopts steel wall structure with chain transmission.The machine base is made by welded steel with destressing treatment
    Coil thickness:0.5-0.8mm
Main motor type: 3 phase asynchronous motor
Main motor power: 2.2KW
Forming speed: 0-15m/min(without cutting)
Approx.6 groups rollers)
Roller :S45C with heat treatment,and surface is being hard chrome coated)
Shaft:  Shafts  of rollers are tooled by grinding machine for two times to ensure the precision of final product.
Transmission type: by gear box and chain
 Qty: 1
4.4Hydraulic System:
Material of blade: Cr12
Length measuring: Automatic encoder length measuring
Way of cutting:The main machine automaticlly stops and the cutting will take place.After the cutting,the main machine will automaticlly start
4.5Product support frame
Size:L 3m x W .0.7m
Qty:2
4.6PLC Control System
(The whole line is controlled by PLC and touch screen.The PLC system is with high speed communication module,it is easy for operation.The technical data and system parameter can be set by touch screen.)
Control the quantity & length& cutting length automatically)
The Machine will be stopped while it is cutting
Automatic Length  measurement and quantity counting (precision 3m+/-2mm)
Voltage:110volt 60Hz or  220volt 60Hz (As per buyer`s request)
4.7Auto seamer:

Qty:1
4.8 Bending machine



It adopts steel wall structure with chain transmission.The machine base is made by welded steel with destressing treatment
Coil thickness:0.5-0.8mm
Main motor type: 3 phase asynchronous motor
Main motor power:0.75KW
Approx.2 groups rollers)
Roller :S45C with heat treatment,and surface is being hard chrome coated)
Way of adjustment:  by manual way,
Transmission type: by chain
Type of curving:positive curving,negative curving, or Continuous curved
Length of sheet be curved:Continuous curved:1 meters
                                              positive curving,negative curving:2-3meters
Qty: 1
any inquiry just let me know.
