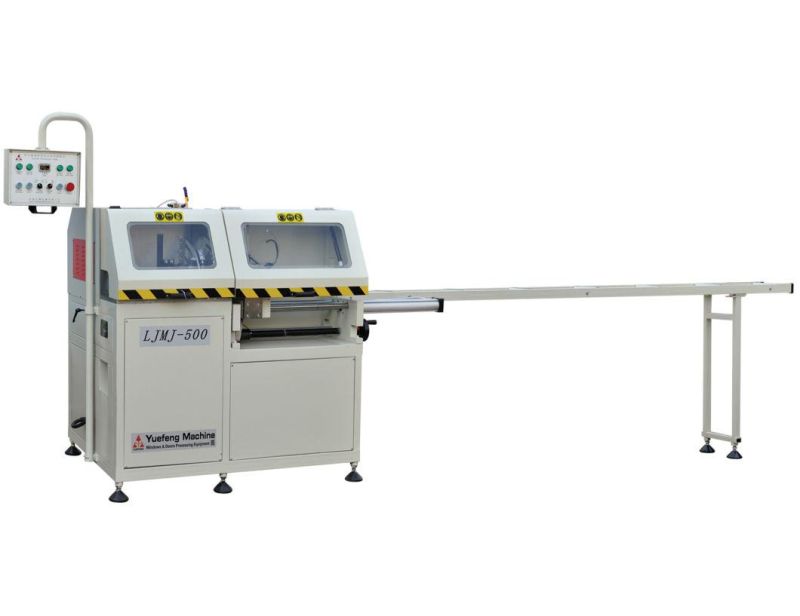

Aluminum Profile Window Making Machine Corner Connector Cutting Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Ljmj-500

Base Info

  • Model NO.：Ljmj-500
  • Input Voltage：380V 50Hz
  • Input Power：3.0kw
  • Air Pressure：0.5~0.8MPa
  • Air Consumption：150L,Min
  • Spindle Speed：3200r,Min
  • Saw Blade Standard：500*4.4-30*Z120
  • Overall Dimension：2000*1600*1400mm
  • Saw Feeding Speed：0~3m,Min
  • Cutting Height：120mm
  • Auto Feeding Length：3~400mm
  • Transport Package：Wooden Box
  • Specification：2000*1600*1400mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. Ljmj-500 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.5~0.8MPa Air Consumption 150L/Min Spindle Speed 3200r/Min Saw Blade Standard 500*4.4-30*Z120 Overall Dimension 2000*1600*1400mm Saw Feeding Speed 0~3m/Min Cutting Height 120mm Auto Feeding Length 3~400mm Transport Package Wooden Box Specification 2000*1600*1400mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

Aluminum Profile Window Making Machine Corner Connector Cutting Machine    Aluminum profile window making machine Corner Connector Cutting machine

Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting Machine

Used for cutting aluminum connectors.

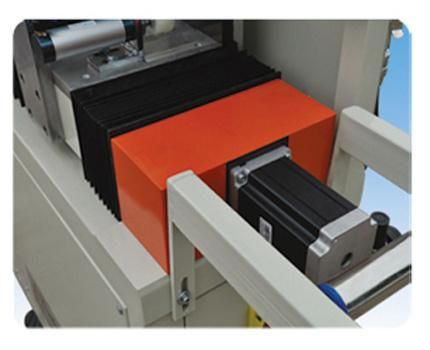

Automatic feeding system controlled by PLC, result high efficiency.
Recording system record the numbers already cut.
Imported carbide saw blade gives accurate processing, and high durableness.
It has features of high automation, reliability and efficiency.

Technical Parameter:
ModelLJMJ-500
Input voltage380V 50Hz
Input power2.2Kw
Air pressure0.5~0.8MPa
Air consumption150L/min
Motor rotation speed2840r/min
Saw blade standardφ500×4.4×φ30×Z120
Saw feeding speed0~3m/min
Cutting height120mm
Auto feeding length3~400mm
Overall dimension2000×1600×1400mm




 Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting Machine
Aluminum Profile Window Making Machine Corner Connector Cutting MachineAluminum Profile Window Making Machine Corner Connector Cutting MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
