Aluminium Window Door Fabrication CNC Copy Milling Machine

Jinan Tianchen Smart Machine Co., Ltd.

Condition：New
Certification：ISO, CE
Automatic Grade：Automatic
CNC or Not：CNC
Voltage：380V
Application：Making Aluminum Window Door

Base Info

Model NO.：LXF3A-CNC-2500
Product Name：Aluminium CNC Copy Router Milling Machine
Work Material Type：Aluminium Profile
Material′s Workable Section Size：100X100mm (Widthx Height)
Maximum Workable Length：2500mm
CNC Axis Number：3
Spindle Rpm：18000
Spindle Power：4.5 Kw
PLC：Schneider
Transport Package：Iron Pallet, Container
Specification：2800x1850x2050
Trademark：Tianchen
Origin：Jinan, Shandong, China
HS Code：84614090
Production Capacity：50 Sets Per Month

Description

Power supply380V 50Hz or as per customized valueAir supply0.5~0.8MPaAir consumption40L/minMain spindle rotating speed18000rpmSpindle power4.5kWMachine total power11kWTool chuckER25-Ø8Processing size range(for 3 surfaces in one time's clamping)100x100x2500(mm)
Working position-90°,0°,90°X way travel2500mmY way travel330mmZ way travel300mmX axis movement speed0~60m/minY axis movement speed0~30m/minZ axis movement speed0~30m/minMachine overall dimension
(LxWxH)2800X1850X2050mmWeight about 1400 KG Machine Features

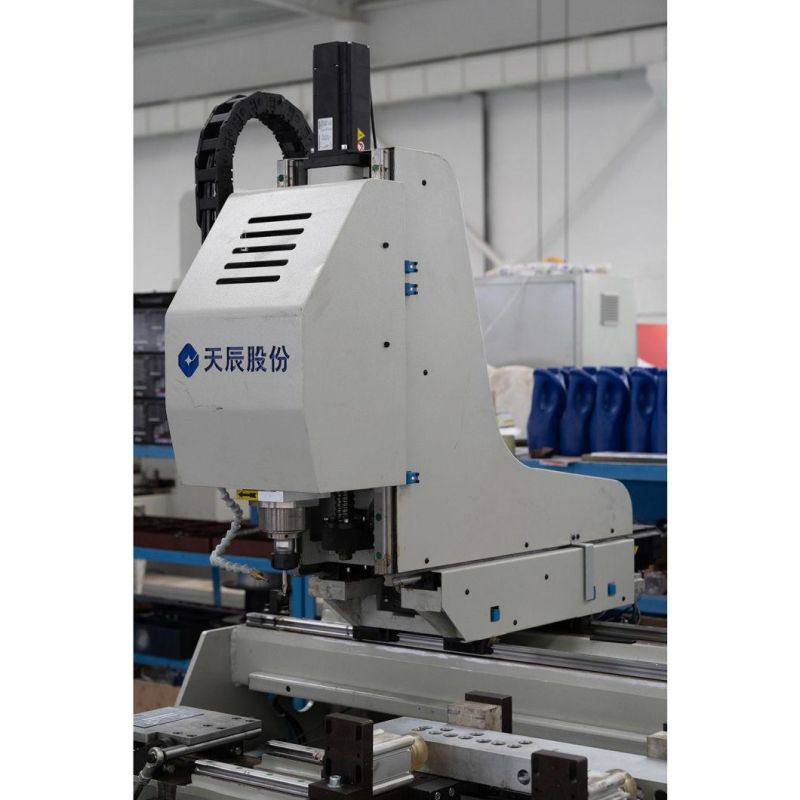

X axis is driven by rack and pinion, Y and Z axis is driven by guide rail and ball screw. All with very high precision, ensure accurate performance.

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

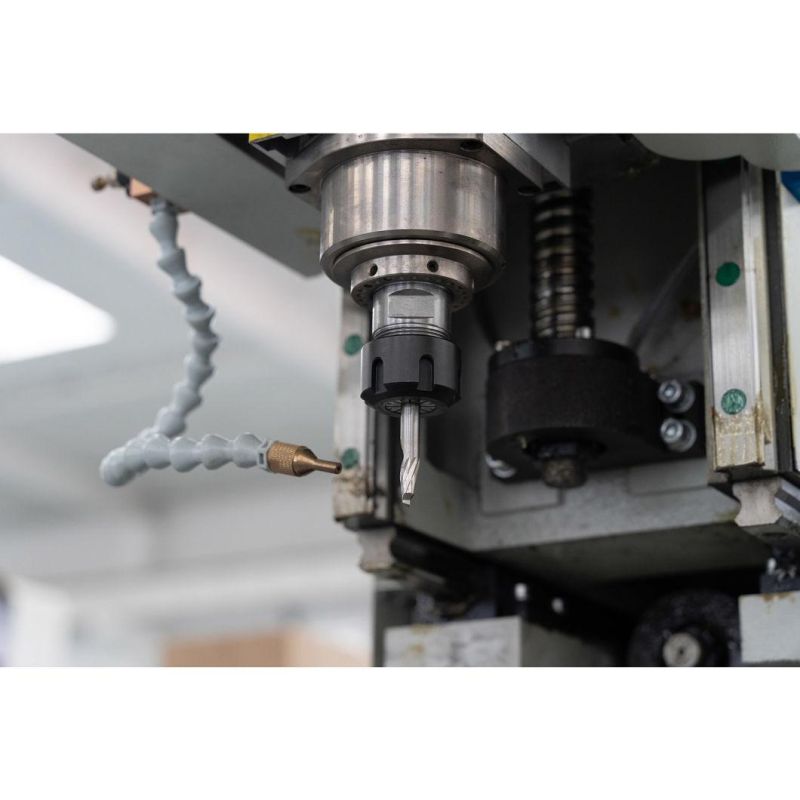

High speed motorized spindle, stable rotating, low noise, and strong milling ability.
Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine

Aluminium Window Door Fabrication CNC Copy Milling Machine
