• Model NO.：steel forming machine
• Certification：CE, ISO, Roofing Machine
• Condition：New
• Customized：Customized
• Usage：Roof, Wall, Floor, Roofing Machine
• Transmission Method：Hydraulic Pressure
• Type：Steel Forming Machine
• Processing：Brick Production Line
• Product：Tile
• Brick Raw Material：Cement
• Automation：Automatic
• Tolerance：0.5mm
• Material Thickness：0.3-0.8mm
• Cutting Blade：Cr12
• Color：Blue
• Transport Package：Nude
• Specification：CE
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. steel forming machine Certification CE, ISO, Roofing Machine Condition New Customized Customized Usage Roof, Wall, Floor, Roofing Machine Transmission Method Hydraulic Pressure Type Steel Forming Machine Processing Brick Production Line Product Tile Brick Raw Material Cement Automation Automatic Tolerance 0.5mm Material Thickness 0.3-0.8mm Cutting Blade Cr12 Color Blue Transport Package Nude Specification CE Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 20 Sets Per Month

Product Description

Metal Color Double Layer Steel Roll Forming Machine

Technique parameters
   (1) Processing material: aluzinc/galvanized steel/colored steel coil
  (2) Material thickness: 0.3-0.8mm
  (3) Effective width: 1000mm&1000mm
  (4) Feeding width: 1250mm
  (5) Main motor power: 4 kw
  (6) Pump power: 4kw
  (7) Shaft diameter: 75mm
   (8) Forming steps: upper level is 11 steps, down level 13 steps
  (9) Roller material: 45# forged steel, with hard chrome plating
 (10) Main frame: 350H steel
 (11) Medium plate thickness: 16mm
 (12) Control systerm: PLC computer control with inverter
 (13) Power supply: 380V, 3 Phase, 60Hz
 (14) 0veral sized: 8500mm*1300mm*1300mm

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

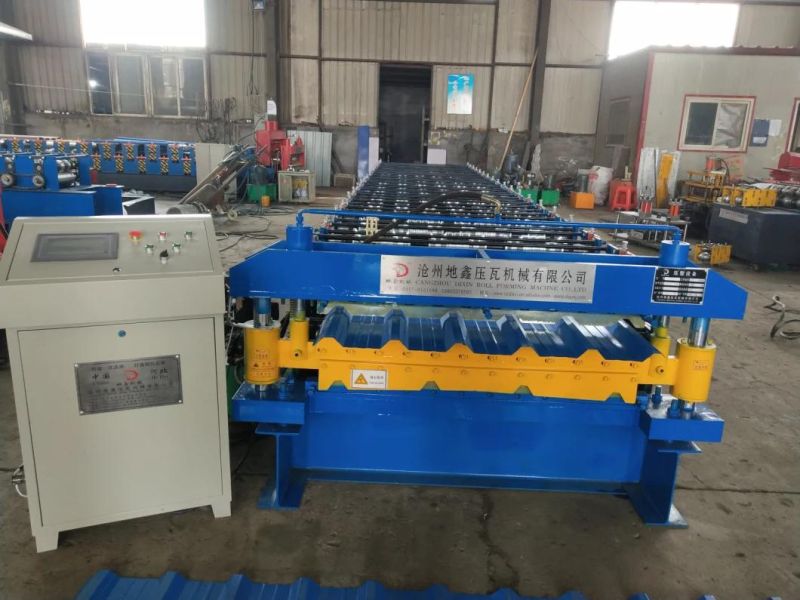

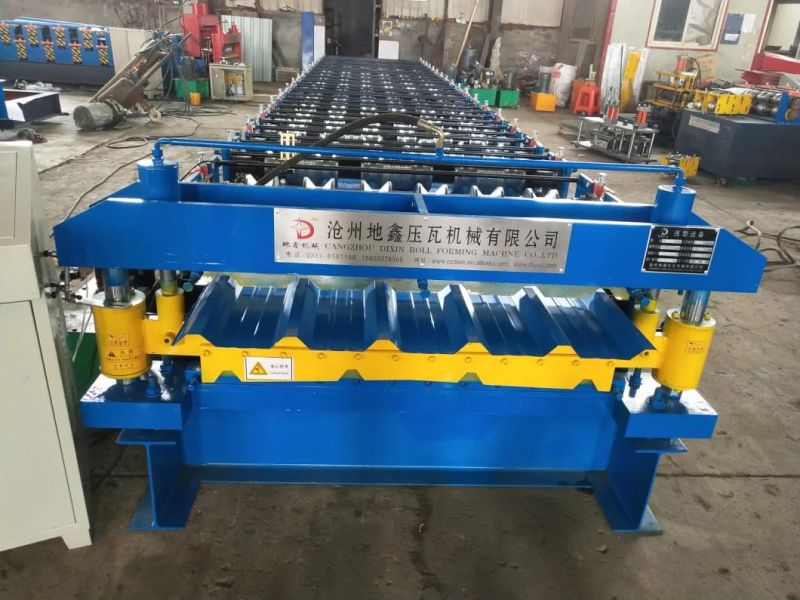

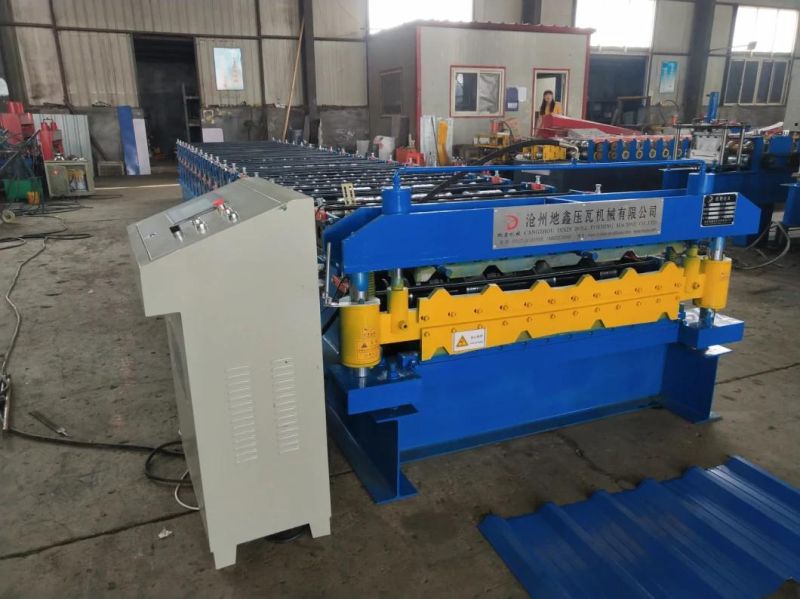

Some machine pictures for your reference








Packing and delivery
Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.
