• Model NO.：Steel Roll Forming Machine

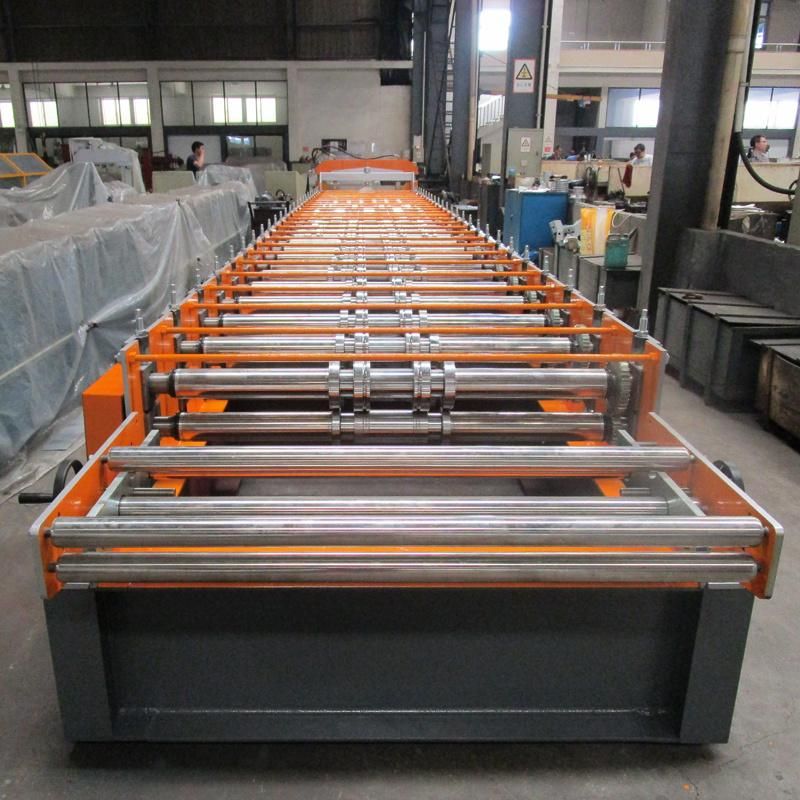

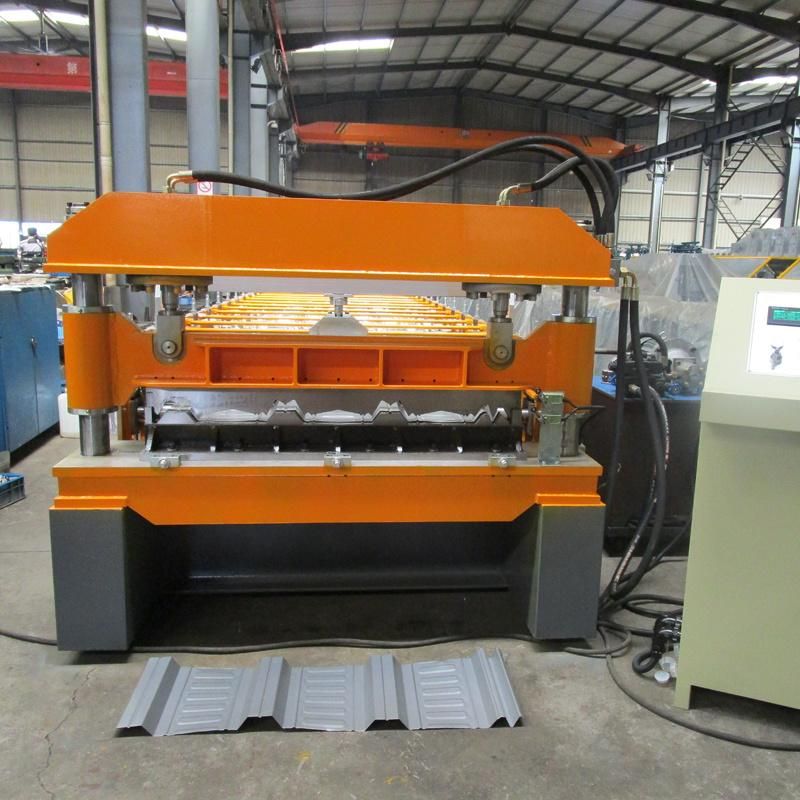

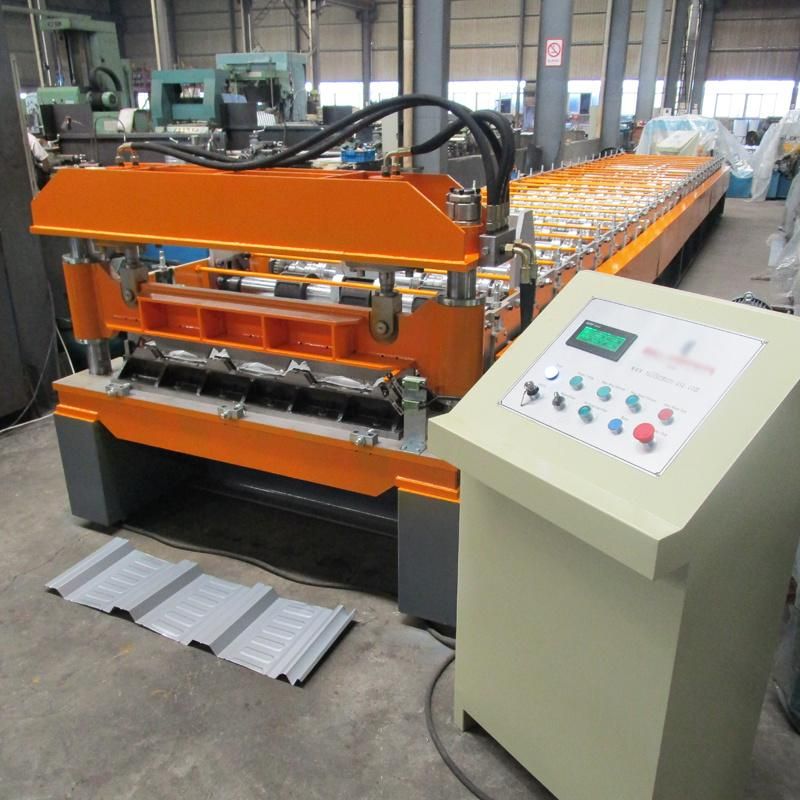

• Name：Roofing Sheet Roll Forming Machine
• Cutter Material ：Cr12 Mould Steel
• Shafts：72mm Solid Steel
• Machines Weight：About 10t
• Transport Package：1*40gp
• Specification：CE SGS BV Soncap
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235Roller material45#Chrome steelForming speed(m/min)About 20Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 11.4*1.655*1.6m (Depend on final design)
Components of machineDecoiler
(manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table






Why Choose US?

1. Customize roll forming machines since 2003.
2. Certificate: ISO 9001, CE
3. Mitsubishi PLC controller and transducer from Japan
4.12 months warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 40 countries
12.Technician overseas installing and training available
13.Professional online service team, any email or message will be replied within 8 hours.

Customer Visit:



Certificate:



 FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
Provide profile drawing & design technical support FOR FREE!
