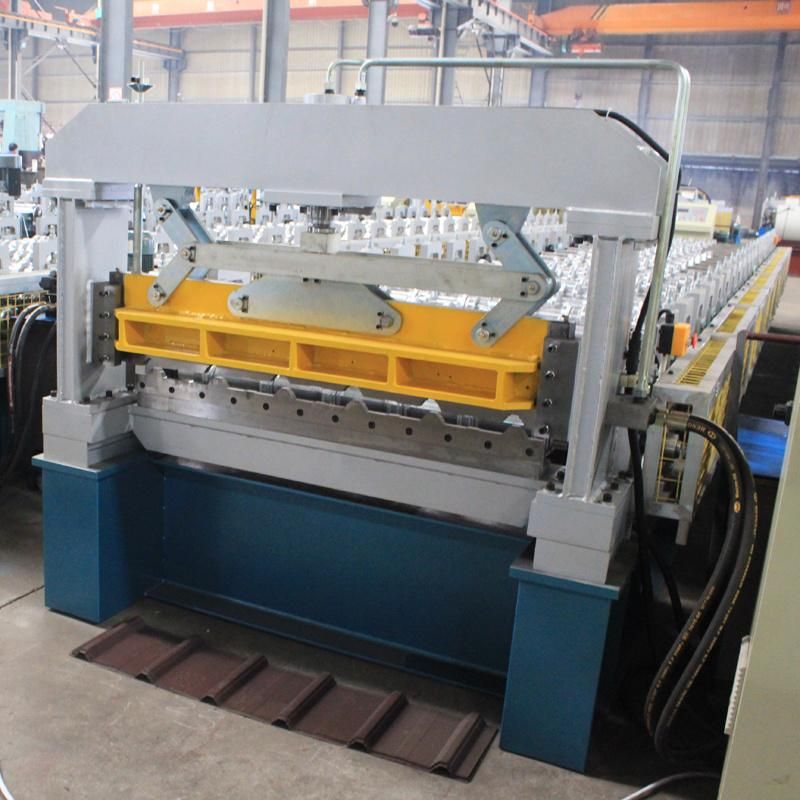

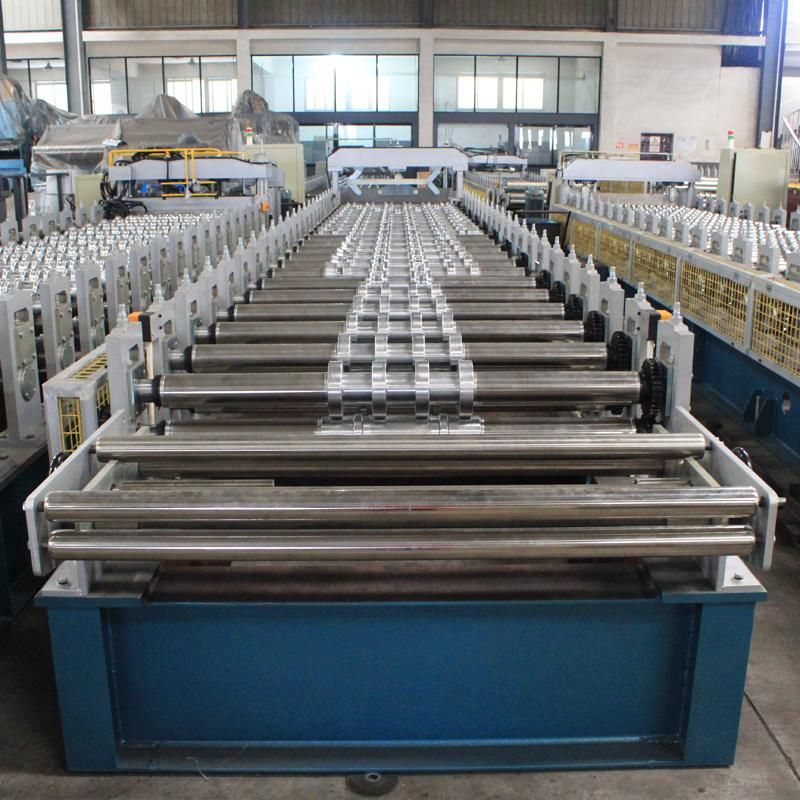

• Model NO.：Roofing Sheet Roll Forming Machine
• Name：Roofing Sheet Roll Forming Machine
• Cutter Material ：Cr12 Mould Steel
• Shafts：72mm Solid Steel
• Machines Weight：About 10t
• Transport Package：1*40gp
• Specification：CE SGS BV Soncap
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set





Why Choose US?

1. Customize roll forming machines since 2003.
2. Certificate: ISO 9001, CE
3. Mitsubishi PLC controller and transducer from Japan
4.12 months warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 40 countries
12.Technician overseas installing and training available
13.Professional online service team, any email or message will be replied within 8 hours.

Customer Visit:



Certificate:



 FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
Provide profile drawing & design technical support FOR FREE!


Contact Us:

TEL:+86-0571-82172966
        +86-13867521382
Website:cnzhongyuan.en.made-in-china.com
Factory Address:No. 228 Yongli, Nanyang Street, Xiaoshan District, Hangzhou, Zhejiang, China
