• Model NO.：roof roll forming machine
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Type：Roof Roll Forming Machine
• Warranty：2 Years
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：18mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Method：Roof Roll Forming Machine
• Transport Package：Main Body Nude in Container
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：15sets,Per Month

Basic Info.

Model NO. roof roll forming machine Customized Customized Usage Roof, Wall Transmission Method Hydraulic Pressure Type Roof Roll Forming Machine Warranty 2 Years Effective Easy Operation Motor Power 4kw Forming Station 13 Stations Medium Plate Thickness 18mm Main Frame 300h Diameter of Roller 75mm PLC Delta Brand Method Roof Roll Forming Machine Transport Package Main Body Nude in Container Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 15sets/Per Month

Product Description

roof roll forming machine from China best factory sales
Cangzhou Dixin Roll Forming Machine Co.,Ltd  which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
Mobile: 008618231723279

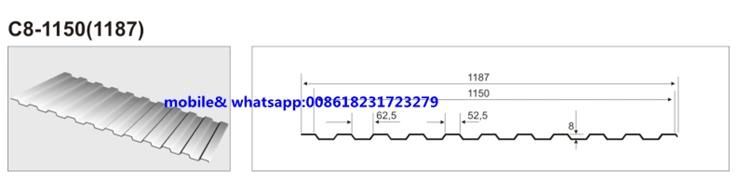

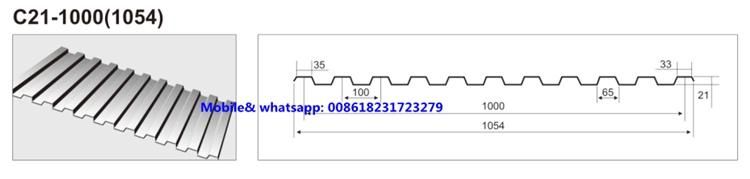

Panel Drawing
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 1150mm and 1000mm
(4) Feeding width: 1250mm and 1200
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz or customer request
(14) 0veral sized: 6000mm*1500mm*1500mm
(15)Total weight: 5 tons

2. Work flow

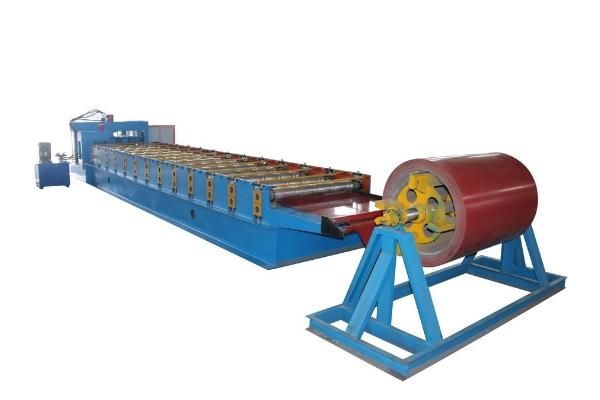

Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
24 months, and lifelong technical support service

6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

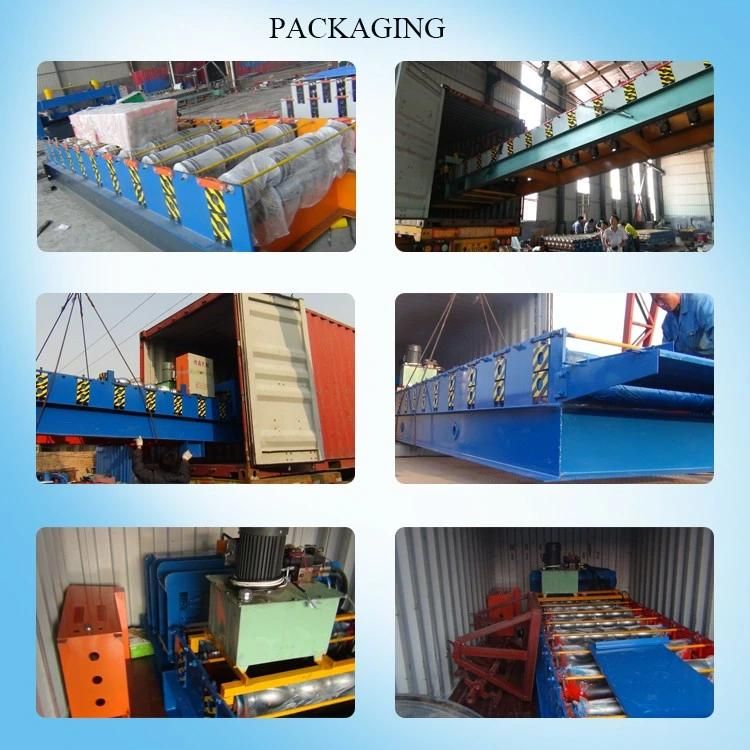

7. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

This is one of our main products, hotselling used in UK, and has been certificated by SGS, CE.

Hope further contact with you.


Advantage of our roll forming machine machine

High quality

Lower cost

Durableness

High efficiency

Reliable working

Low failure rate

Low energy consumption

Trouble free after sales service

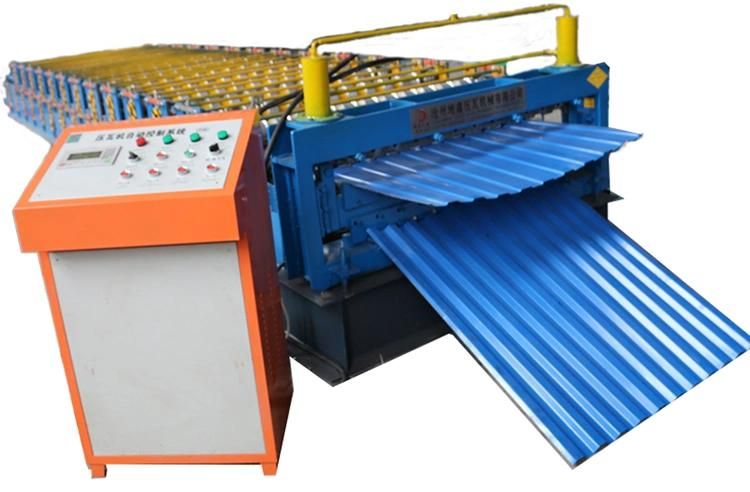

The advantages of the double deck roll forming machine
1. High efficiency
2. Lower cost
3. Long life time: 30years
4. Low energy consumption
5. PLC computer control
6. No noise, no shake
Where is your factory located ? How can I visit you ?
Dixin Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
If you want to know more infomation about roof roll forming machine from China best factory sales, contact to Bella Hao
Mobile: 008618231723279
