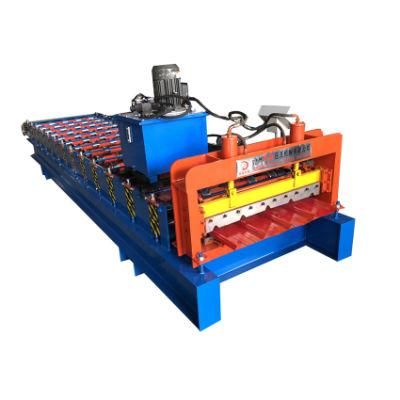

High Quality Metal Steel Double Layer Roof Tile Roof Sheet Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification：CE, ISO, Roof Roll Forming Machine
- Condition：New
Base Info
- Model NO.：roof roll forming machine
- Customized：Customized
- Usage：Roof, Wall, Floor, Roof Roll Forming Machine
- Transmission Method：Machinery
- Product Name：Roof Roll Forming Machine
- Feature：Automation
- Feeding Material：Metal Coil
- Cutting Blade：Cr12
- Forming Steps：Puper Level Is 11 Steps, Down Level 13 Steps
- Shaft Diameter：75mm
- Productivity：8-12m,Min
- Color：Green Blue
- Model Number：840&850
- Roller：High Grade No.45 Steel and 0.05 mm Chrome
- Transport Package：Nude, Covered with Plastic Film
- Specification：CE SGS ISO
- Trademark：DIXIN
- Origin：Botou, Hebei, China
- HS Code：84552210
- Production Capacity：30 Sets,Month
Description
Main parameter for1 Suitable to process Galvanized/Aluminum/Color steel sheet 2 Width of plate 1250mm 3 Thickness of plate 0.3-0.8mm 4 Rollers High grade 45# steel, with hard chrome plating 5 Forming steps 16 6 Sprocket chain 1.5 inch 7 Pump station power 4kw 8 Shaft 75mm, high grade 45# steel, heat treatment 9 Hydraulic oil pump CB-E310 10 Weight About 4.5tons 11 Productivity 8-12m/min 12 Cutting head Cr12 mould steel with quenched treatment 13 Control system TAIDA brand PLC control 14 Voltage 380V 3Phase 60Hz 15 Motor power 4kw 16 Dimension About 6.5m*1.5m*1.5m 17 Hydraulic pressure 10-12mpa
3.Equipment Components
Decoiler 1Unit
Feeding Guide 1 Unit
Roll Forming System: 1 Unit
Press&Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC control System 1 Unit
Runout Table 1 Unit
Our Serivice:
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.

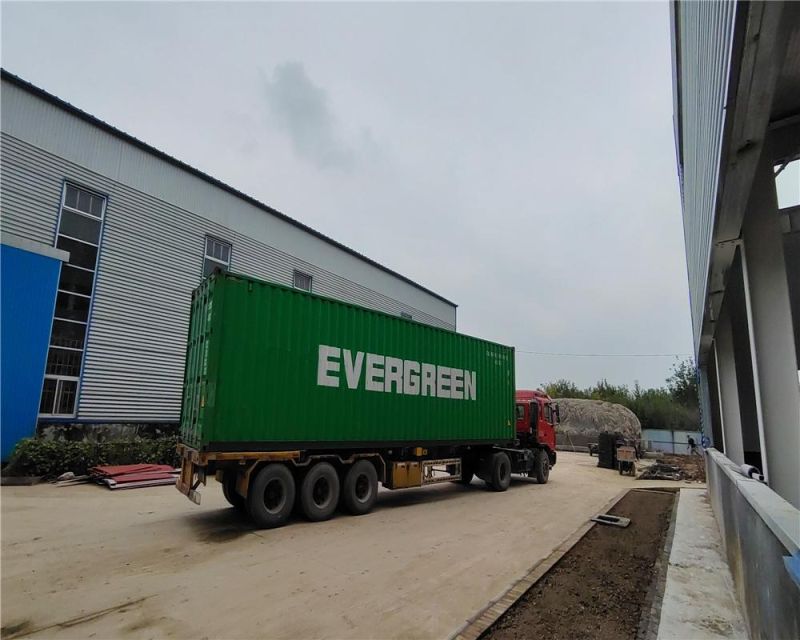

Product packaging
A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.
If u are interested in the machine,welcome to contact me
FAQ
1. Q: Are you a manufacturer?
A: Yes,we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands.
3. Q: What's the warranty for your machine?
A: We provide 2years guarantee and provide lifetime technical support.
4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system.
5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you.
8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service.
9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc.
10. Q: Any certification
A: Yes, we have CE SGS ISO certification.
