Zimbabwe Sells Well Glazed Roof Tile Roll Forming Machine Step Tile Roofing Sheet Forming Machinery
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification:CE, ISO
- Condition:New
Base Info
- Model NO.:request
- Customized:Customized
- Usage:Roof
- Transmission Method:Hydraulic Pressure
- Name:Metal Roofing Roll Forming Machine
- Width of The Plate:1000 mm
- Rollers:13 Rows
- Size:6.8*1.5*1.5m
- Main Moter Power:4kw
- Hydraulic Unit Power:4kw
- Thickness of The Plate:0.3-0.8mm
- Productivity:4m,Min
- Diameter of The Roller:75mm
- Voltage:380V 50Hz 3phases
- Transport Package:Simple Waterproof Fit for Ocean Ship, Need a 20 Gp
- Specification:Metal Roofing Roll Forming Machine
- Trademark:DIXIN
- Origin:Botou City, Hebei Province
- HS Code:84552210
- Production Capacity:20 Set Per Year
Description
Name
Dixin Factory Aluminum Metal Roofing Roll Forming Machine
Control System
PLC Delta Inverter
Power Supply
3-Phase,380V,50Hz
Main Frame
350 H-Beam
Main Power
4kw
Pump Power
4kw
Forming Speed
4 m/min
Roll Station
13 rows
Roller Diameter
75mm
Hydraulic Pressure
10-12 MPa
Forming Size
1000mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1000mm
Backboard Thickness
16mm
Chain Size
1 inch
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
6800×1500×1300mm
Total Weight
3.5T

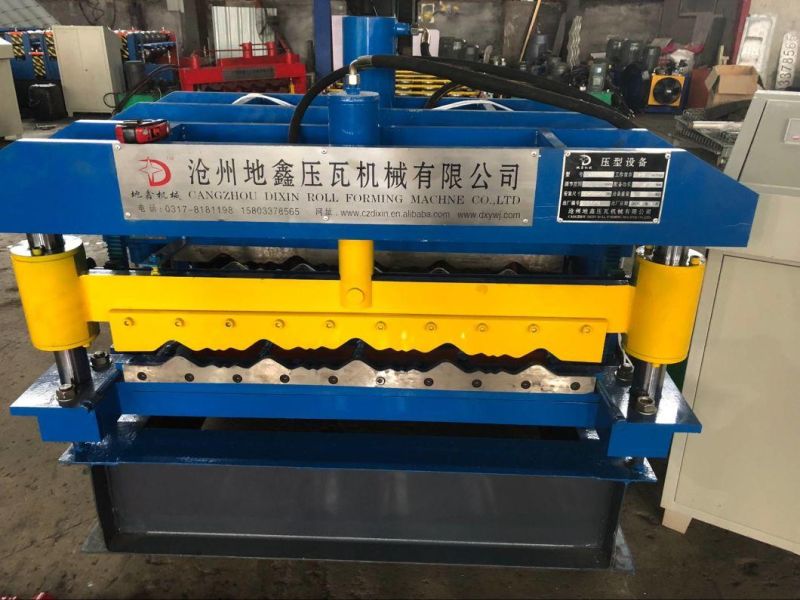

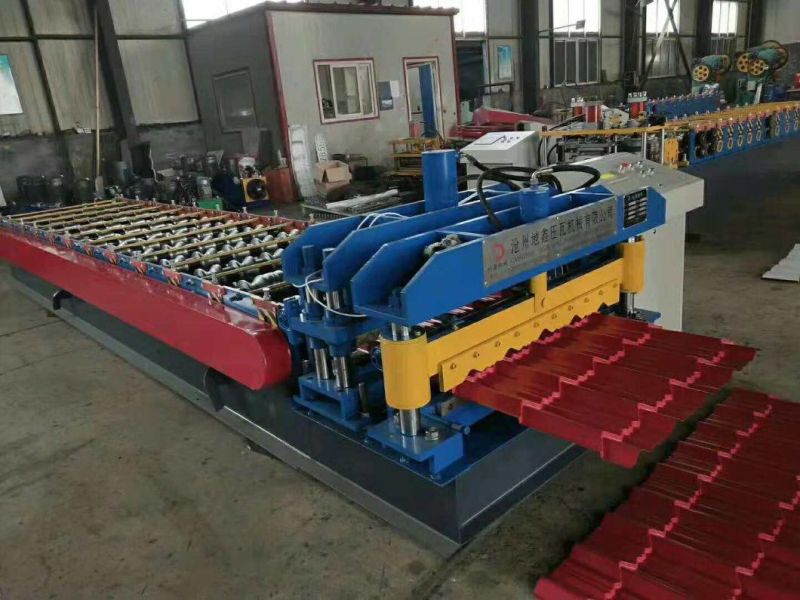

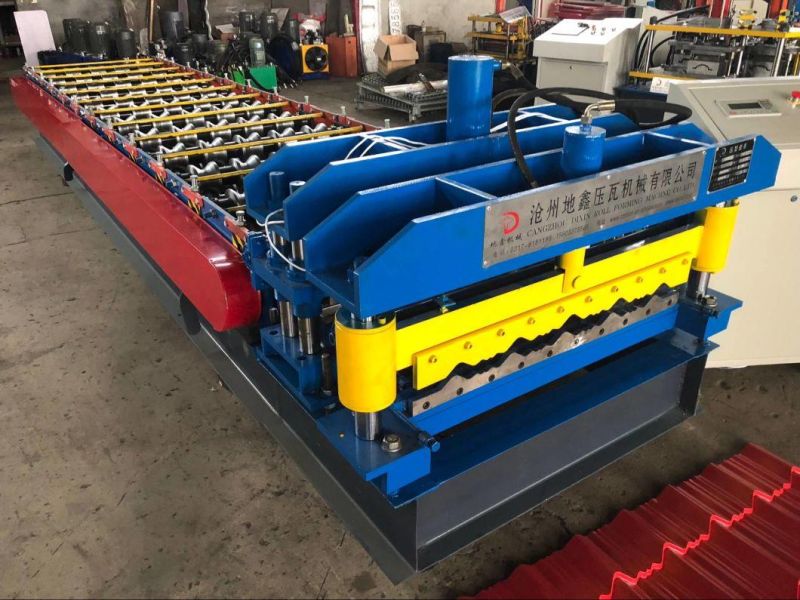

3.Machine photo for your reference
More details

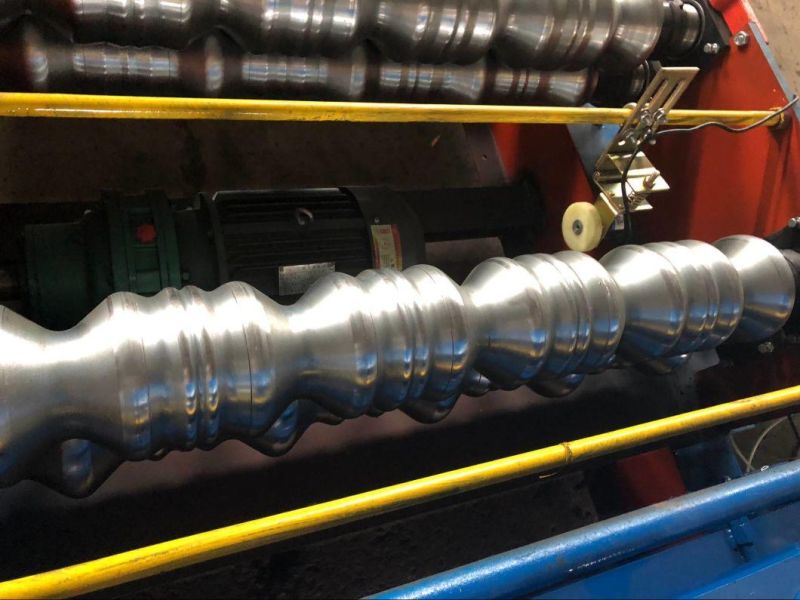

Parts of machine
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc. We can satisfy the different needs of different markets.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
Our Service
We offer the best quality ,the best price and the best customer service.
The machine is durable and easy operated.
We can design and manufacture the special type machine according to the customers' requirement.
Also we could provide technical guiding, production, installation,debugging and maintenance service to all customers.
