• Model NO.：QT5-15
• Productivity：7200 Pieces 40X20X20cm Blocks ,8 Hours
• Dimension：4200X1800X2800mm
• Pallet Size：1100X580mm
• Mixer Model：Jq500
• Processing Method：Hydraulic Pressure
• Voltage：220-440V
• Rated Pressure：16 MPa
• Vibration Force：50kn
• Host Machine Power：27 Kw
• Cycle Time：15-25s
• Workship Areas：250-300m2
• Vibration Frequency：2800-4500r,Min
• Weight of Host Machine：6 Ton
• Water Consumption：5-6 Ton,Day
• Transport Package：Standard Export Packing
• Specification：Q235B Jigang steel
• Trademark：weda
• Origin：China
• HS Code：8474802000
• Production Capacity：120 Sets Brick Making Machine ,Month

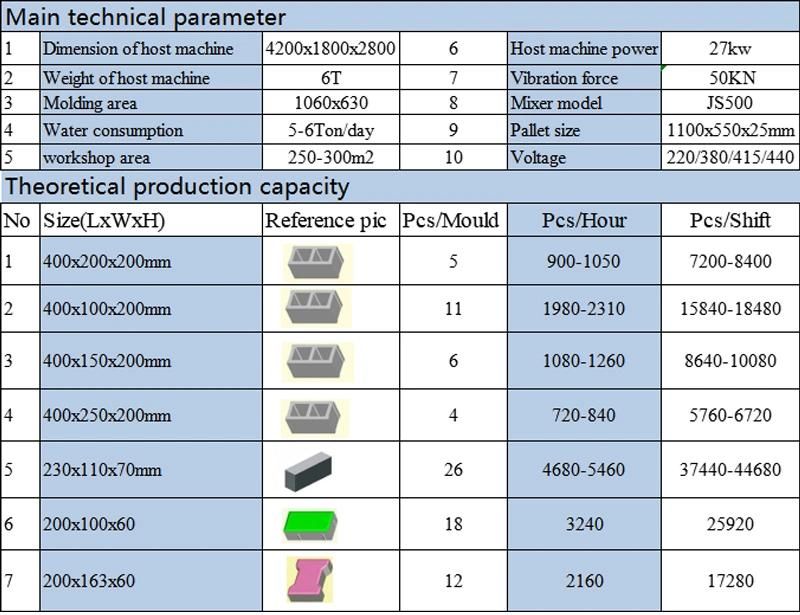

Basic Info.

Model NO. QT5-15 Productivity 7200 Pieces 40X20X20cm Blocks /8 Hours Dimension 4200X1800X2800mm Pallet Size 1100X580mm Mixer Model Jq500 Processing Method Hydraulic Pressure Voltage 220-440V Rated Pressure 16 MPa Vibration Force 50kn Host Machine Power 27 Kw Cycle Time 15-25s Workship Areas 250-300m2 Vibration Frequency 2800-4500r/Min Weight of Host Machine 6 Ton Water Consumption 5-6 Ton/Day Transport Package Standard Export Packing Specification Q235B Jigang steel Trademark weda Origin China HS Code 8474802000 Production Capacity 120 Sets Brick Making Machine /Month

Product Description

QT5-15 auto ciment homemade bricks making full set machinery industrial paver block manufacturing machine
 Features:

1) New design, simple structure, easy in installation and operation.
2) High vibration ensure high density of the finished products, suitable for stock bricks and uni pavers.
3) Reasonable raw material ratio can produce high strength standard brick, after forming, can stack immediately.

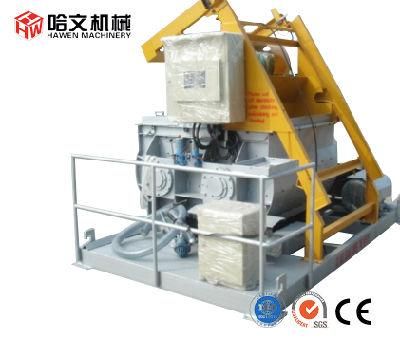

4)We can also customize any brick or block machines. Pan Mixer or JS 500 mixer which you may use for mixing









Product Description

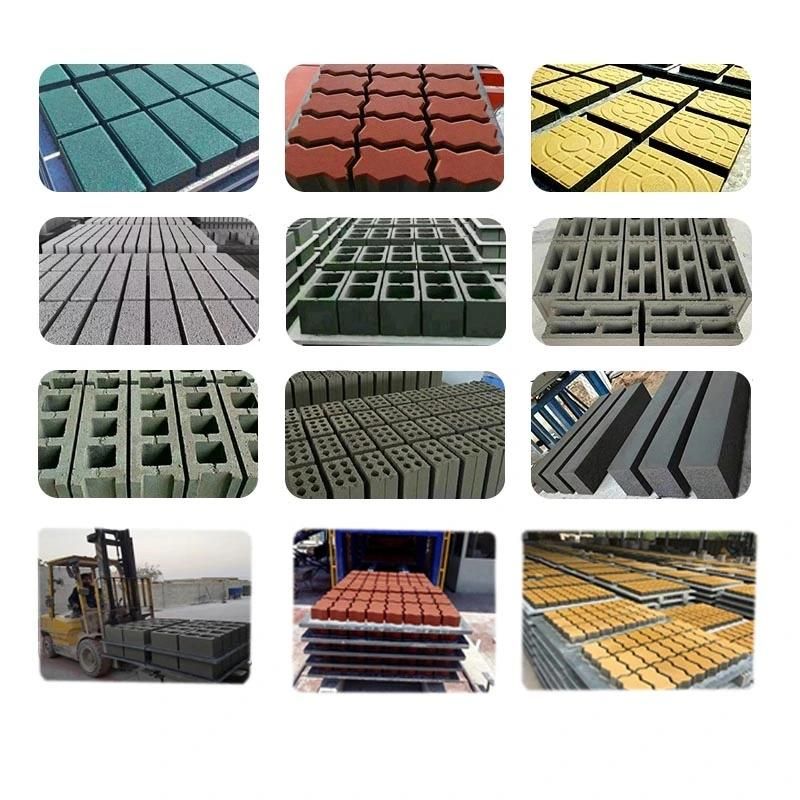

Block samples
Different shaps of colored Pavement Bricks, Cement hollows Blocks and solid brick with kerbstone blocks
production by one machine only (We can also customize any brick or block (maxi bricks mould , stock bricks mould and
hollow blocks mould)

For the block production formula as followed just for reference :


1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
2. 8-10% cement, 30% flyash, 60% sand or stone powder

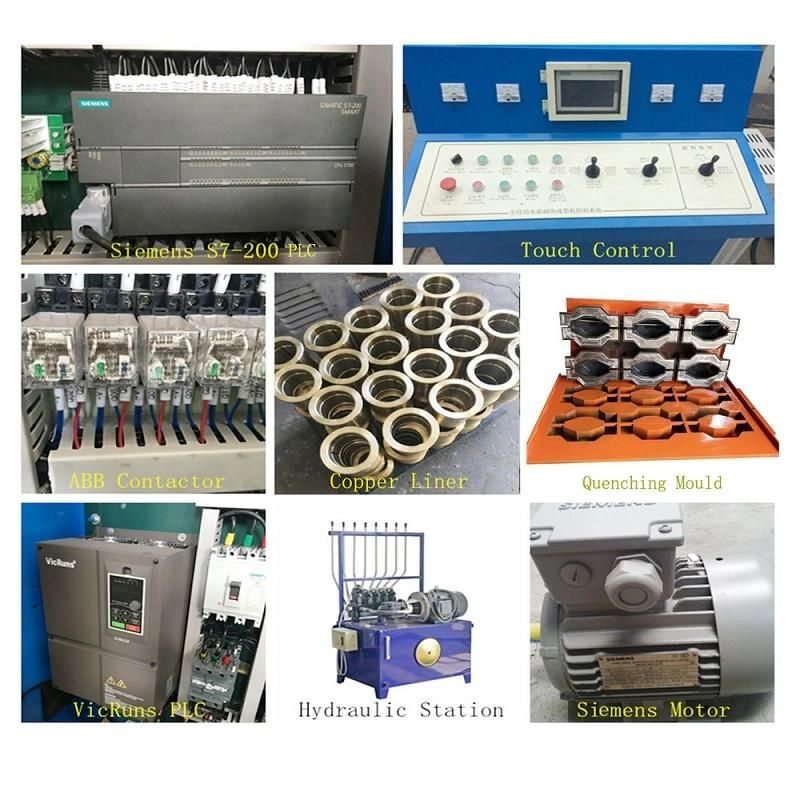

Programme PLC with motor electronic parts  :

Africa continues to embrace new building technologies that promote faster, simpler and cost-effective
construction as development continues its rapid growth.

Investing in a brick and block-making machine is a smart decision for any business that is looking to get
off the ground quickly by producing high-quality products with a low cost. For instance the
Interlock Block Making Machine a novel concept in the present construction industry. They are very
cost-effective for construction since the use of sand and cement for plastering are minimized to the maximum
extent possible. Once the initial purchase of the machine is made, you will find that the individual component
parts are surprisingly affordable, and the profit margins can be very respectable indeed once you have everything
worked out.

Of course, finding a suitable place to buy a brick and block making machine is not always easy, and it is
safe to say you cannot pick one up from your local hardware store.

Four our machine is a good choice for you, as we use below electronic parts to ensure the quality.

• The Block making machine production process is controlled by PLC and fitted with the remote control device.for PLC
control system,we usually use Japan Mitsubishi or Germany Siemens Brand
• The electricity motor for Cement Block Machine, we use Germany Siemens motor, for other parts, we use CE motor.
• about the switches,we will use French or China CHNT

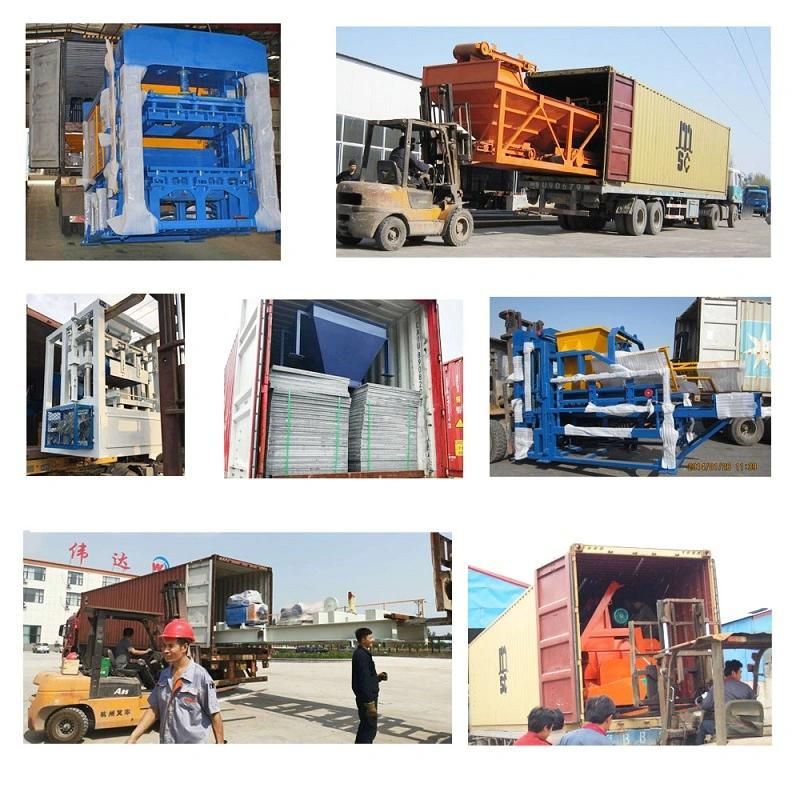

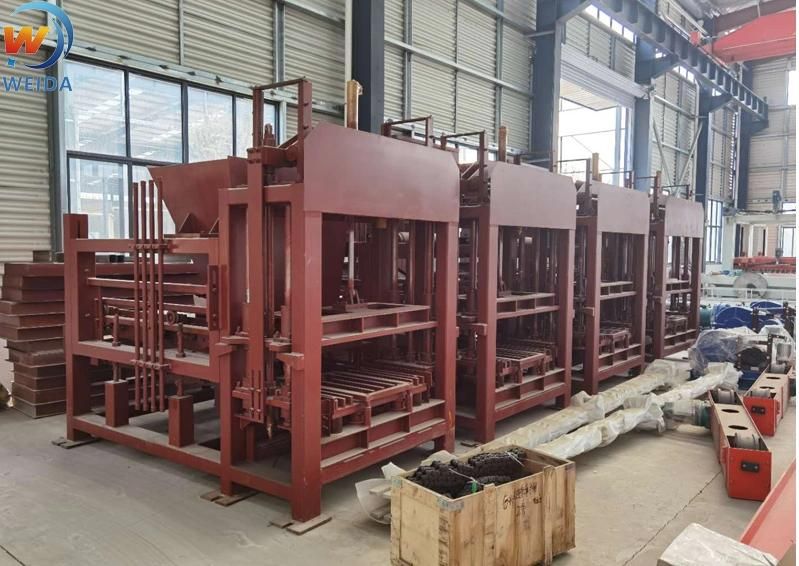

Cement Block Machine loading photos

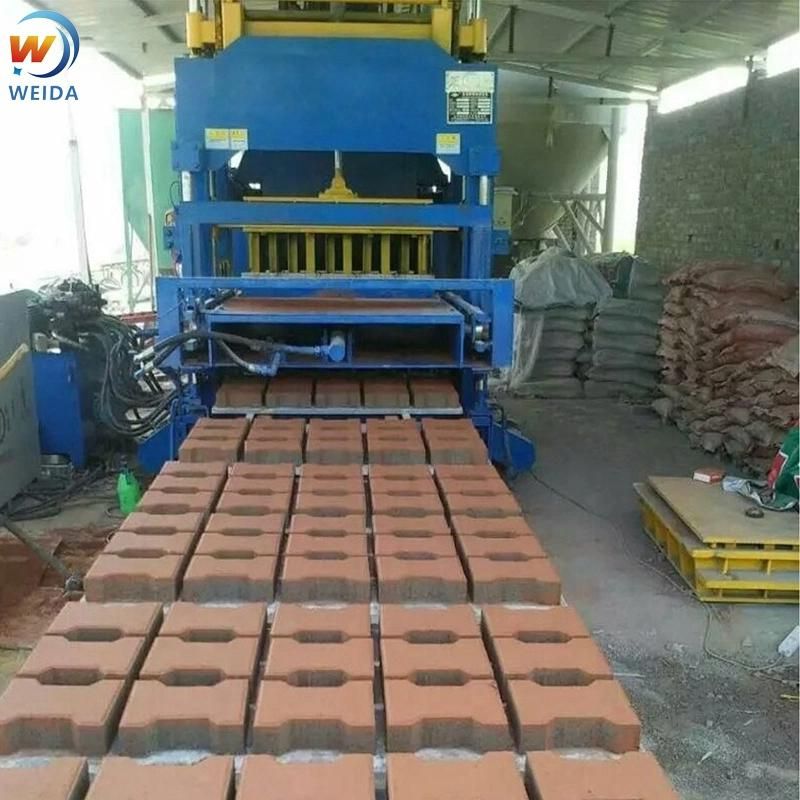

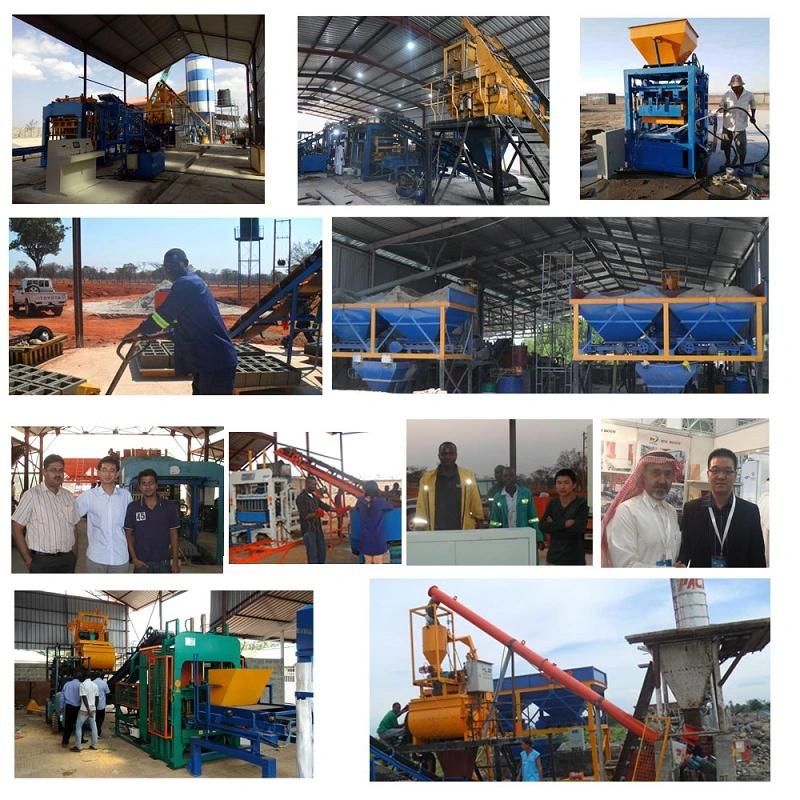

Pavement Cement Block Machine in the client production site
• Rakes in several rows to make sure raw concrete materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demolding synchronizer avoids damage to cement blocks.
• The vibration system for concrete curbs contains two-part,one is up-mold vibration box ,
it is an electric motor to supply the power for the up-mold vibration box. And the down mold,
there have one big vibration. when the scatter material work finish ,
the hydraulic power with the two vibration force will assure the good density of Hollow Cement Block Machine,
solid pavers blocks and concrete kerbs..etc

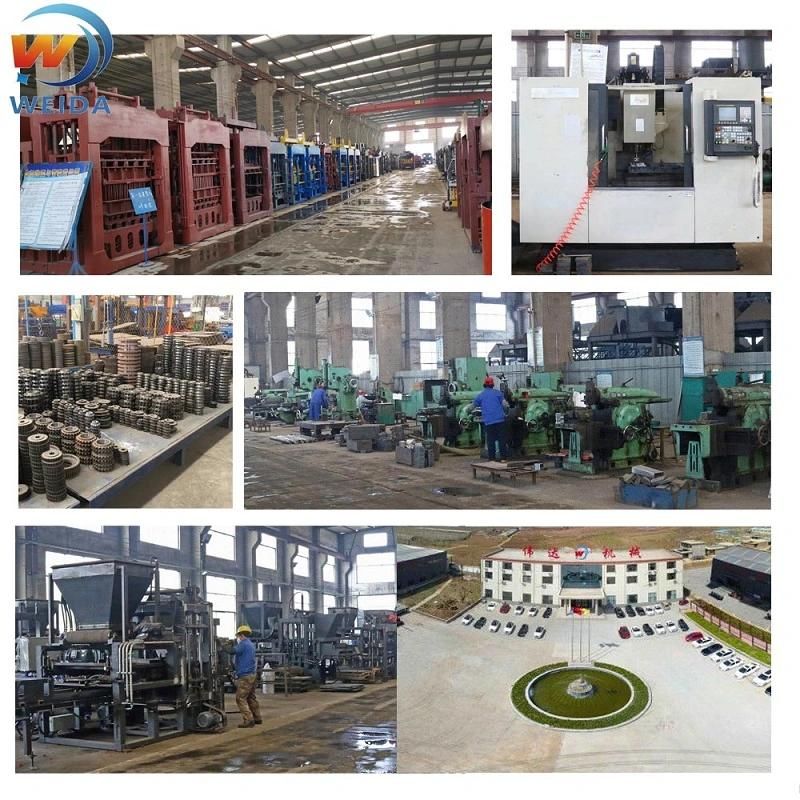

Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province,
China.With RMB 16 million investment and 53,000 square meters area, We are always developing
good and realiable Cement Block Machine, AAC block machine...etc with other
Construction machinery with international standards to meet clients demands(people-oriented,
leading technology, winning quality, and serving user ). We had exported to more than 100 countries.
We have more than 60 technician to ensure superior installations and after sale service to
assist clients to install the machine and perfrom the proper training abroad.

We warmly welcome customers from all over the world come to visit our factory and discuss
long term cooperation.
we are 24 hours service on you!

Thank you !
