Zinc Steel Sheet Slitting and Cutting Machine Hydraulic Cutting Machine
General Industry Tech Hebei Developing Co., Ltd.- After-sales Service：Video Techenical Support
- Warranty：2 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Usage：Cutting and Slitting
- Transmission Method：Chains
- Name：Cutting Machine Slitting to Strip Machine
- Width：1300 Max
- Thickness：0.2-1.5mm
- Main Power：7.5kw
- Hydraulic Power：5.5kw
- Speed：8-15m,Min
- Flatting Rollers：up 5, Down 6
- Flatting Rollers Diameter：70mm
- Feeding Rollers：110mm
- Slitting Rollers：100mm

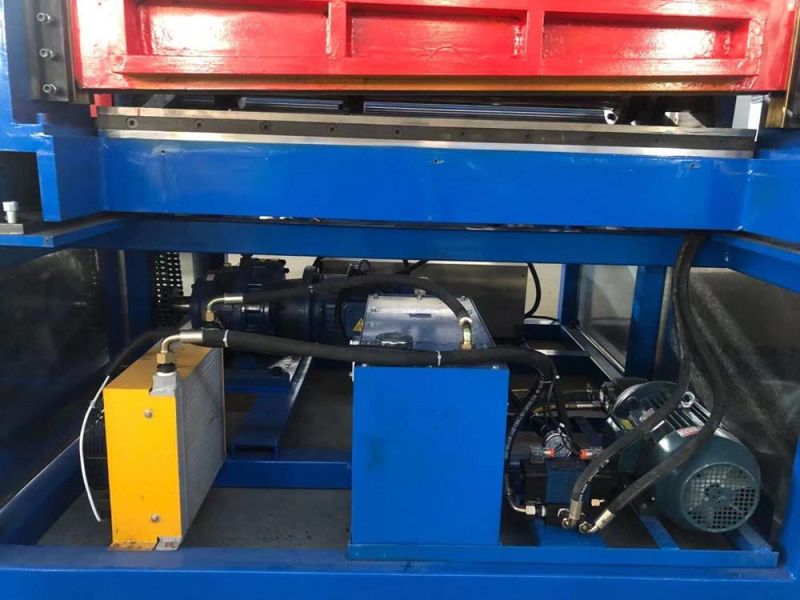

- Cutting Type：Hydraulic Cutting
- Brand：Ztrfm
- Automatic：Yes
- Roller Material：45# Steel
- Technical Support：Yes
- Transport Package：Standard Packing
- Specification：5800*1300*1500mm
- Trademark：ZTRFM
- Origin：Botou, Hebei, China
- HS Code：8474801
- Production Capacity：300 Sets,Year
Description

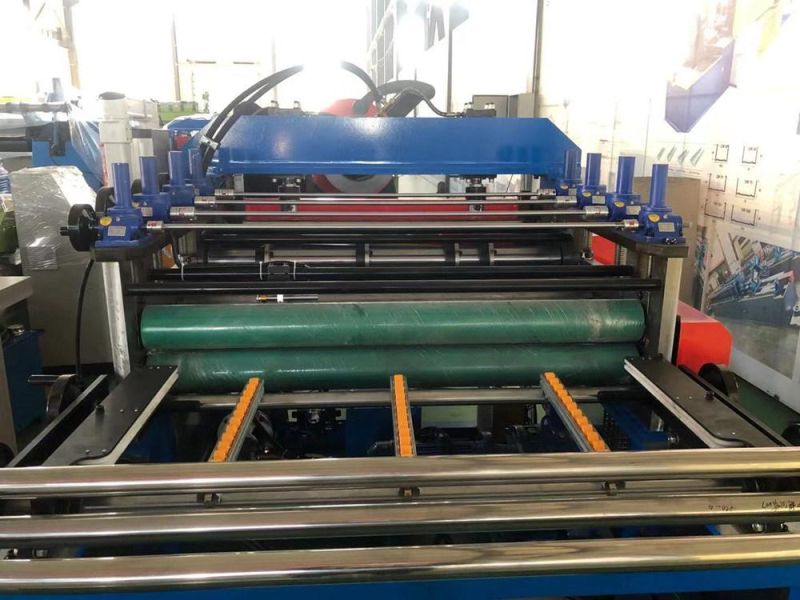

GCr12 chromed and quenched for good hardness and using Working FlowUncoiling---feeding material---clamping device---leveling device---slitting material---cutting to length---product collect table Machine feature of metal cutting to length machine:
* Heavy machine, can make it stable when running and improve machine service life.
* Leveling gap can be adjust by electric type.
* PLC system can control the main speed and cutting length.
* Clapming device ensure the coil will not off tracking before the levleing device.

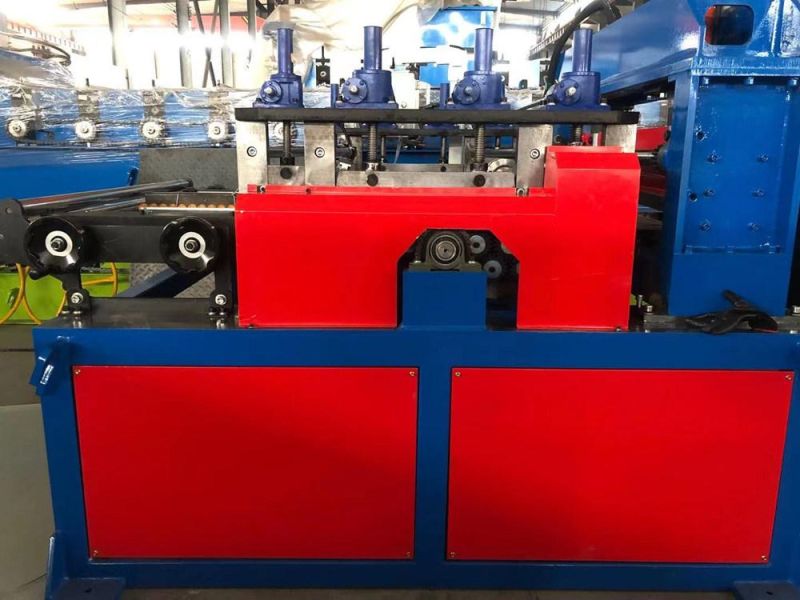

* Leveling device designed with 6 upper rollers and 7 downer rollers to ensure the leveling result.
Products description

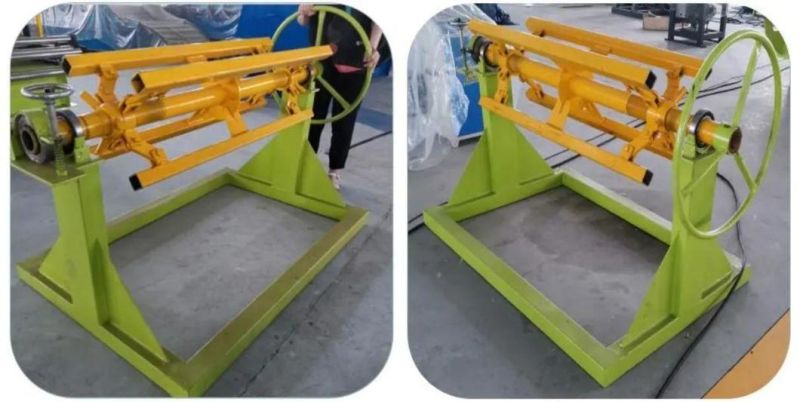

1.Manual Decoiler work type: manualusage: to support the coil and make the uncoiling capacity: 5 tonsinner diameter: 450-550mmcoil width: 1250mm
2.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. Machine frame: 350H steel welded Machine structure: middle plate Flatting Roller: up 5, down 6Roller material: 45# steel withquenched treatment and hard chroming Motor power:7.5 kw Speed: 0-20m/min Transmission: By chains Voltage: 380V,50HZ,3Phase
3.PLC control stationPLC brand: Delta from Taiwan Frequency converter brand: Delta from Taiwan Encode: Omron Function: Automatic control the length,quantity and batch
Feedback from customers:
FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
