• Model NO.：seam lock roofing machine
• Color：Blue
• Control System：PLC Computer
• Effective Width：840,900mm
• Coil Width：1250mm
• Sheet Thickness：0.3-0.8mm
• Pump Power：3kw
• Main Moter Power：5.5kw
• Middle Plate：14mm
• Chain：1 Inch
• Roller：High Grade 45# Steel

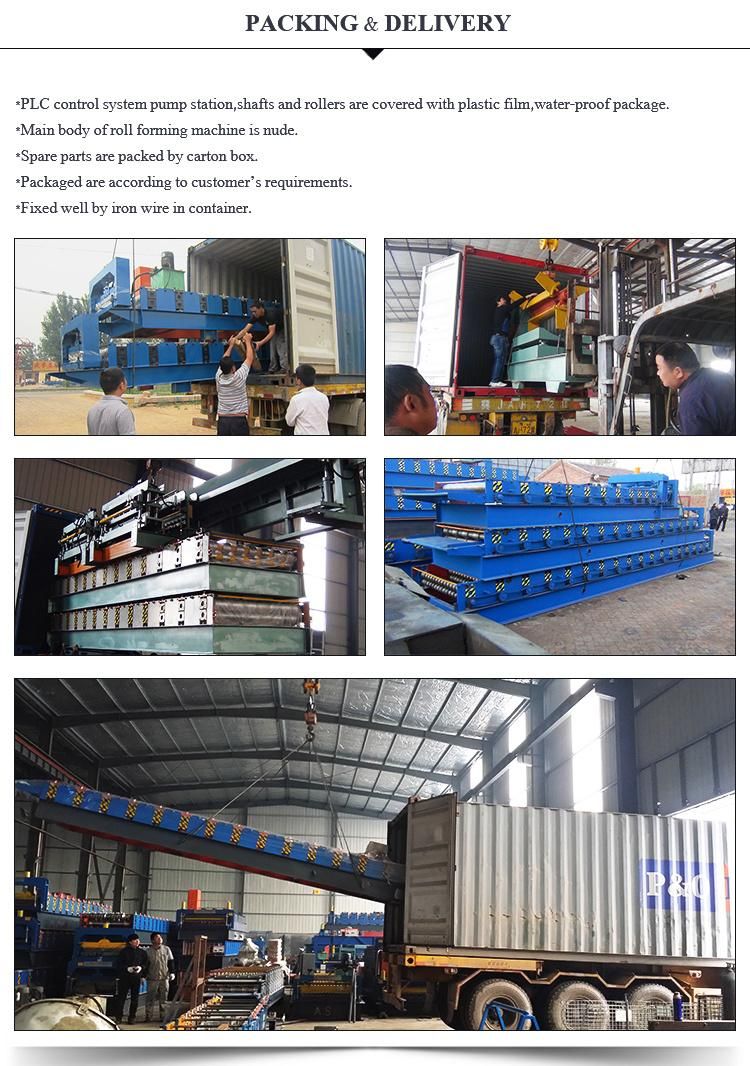

• Transport Package：Nude, Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

No.Main parameter for standing seam metal roof making machine1Suitable to processGalvanized/Aluminum/Color steel sheet2Width of plate1250mm3Thickness of plate0.3-0.8mm4RollersHigh grade 45# steel, with hard chrome plating5Forming steps166Sprocket chain1.5 inch7Pump station power4kw8Shaft75mm, high grade 45# steel, heat treatment9Hydraulic oil pumpCB-E31010WeightAbout 5.0 tons11Productivity18-25m/min12Cutting headCr12 mould steel with quenched treatment13Control systemTAIDA brand PLC control14Voltage380V 3Phase 60Hz15Motor power4kw16DimensionAbout 6.8m*1.5m*1.5m17Hydraulic pressure10-12mpa18Index error of length±1mm19The temperature range of working line-35-50°Above all the parameters can be changed exactly according to customer's requirements.


FQA
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
