• Model NO.：zh18,860
• Feature：Double Layer Roll Forming Machine Two in One Doubl
• Suitable Material：PPGI Gi
• Thickness：0.3-0.8mm
• Width：1250mm as Custom Profile
• Voltage：380V
• Speed：30m,Min
• Rollers：45# Steel as Customer Require
• Motor：5.5kw
• Control：PLC Delta
• Cutting：Hydraulic , Electric
• Key Selling Points：Easy to Operate
• Cutting Blade：Cr12 MOV
• Delivery Time：40 Days
• Warranty：2 Years
• Transport Package：Plastic File
• Specification：7.8X1.5X1.7M
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. zh18/860 Feature Double Layer Roll Forming Machine Two in One Doubl Suitable Material PPGI Gi Thickness 0.3-0.8mm Width 1250mm as Custom Profile Voltage 380V Speed 30m/Min Rollers 45# Steel as Customer Require Motor 5.5kw Control PLC Delta Cutting Hydraulic / Electric Key Selling Points Easy to Operate Cutting Blade Cr12 MOV Delivery Time 40 Days Warranty 2 Years Transport Package Plastic File Specification 7.8X1.5X1.7M Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

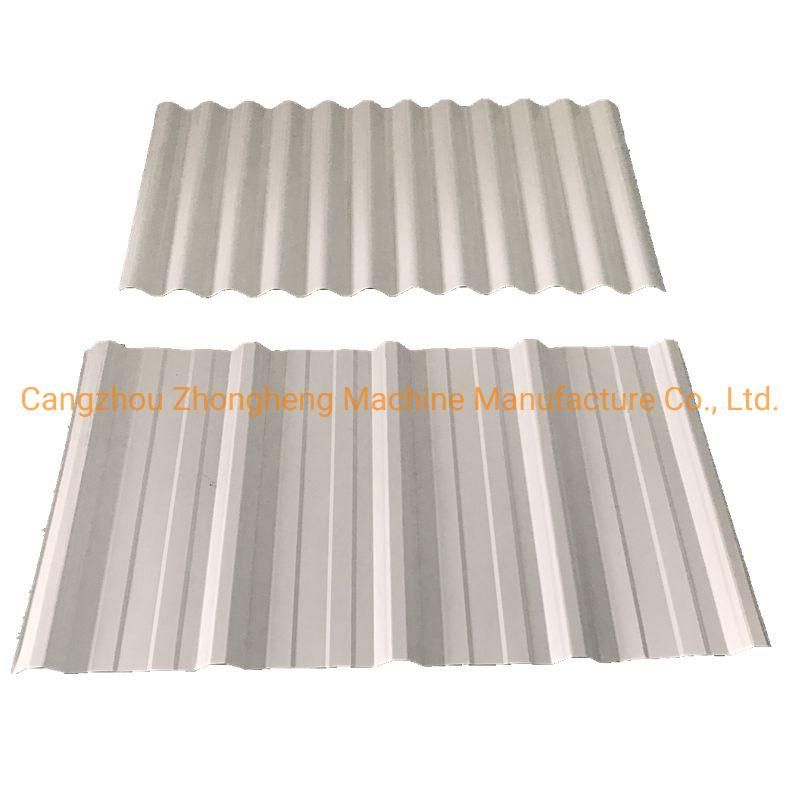

Colored PPGI /Aluzinc /Aluminum and Galvanized Coils Metal Double Deck Layer Two Profiles Ibr Trapezoidal Corrugated Iron Roof Sheets Roll Forming MachinesThis is Double Layer Roll Forming Machine Two in One Double Deck Roof Machine, suitable for ss304 material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world .


Colored PPGI /Aluzinc /Aluminum and Galvanized Coils Metal Double Deck Layer Two Profiles Ibr Trapezoidal Corrugated Iron Roof Sheets Roll Forming Machines

  Description




Two in one double deck roofing panel roll former PPGI roofing sheet making machine  Parameters

Length of the main part	About10500*1650*1500mm
Weight of main part	About 4.5 tons
Voltage	380V/50HZ/3Phase (as customer`s request)
Roller fixer	Middle plate welded
Frame	350H steel welded
Middle plate thickness	20mm/18mm/16mm/14mm/12mm
Drive mode	Chain Drice//Gear Drive
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel
Diameter of shafts	Φ80mm(depend on different design)
Number of rollers:	14/18 rollers
Main power	5.5kw
Cutting&Hydraulic	Double guide pillar
Hydraulic motor power	3kw, 4kw
Hydraulic Pressure	10-12MPa
Cutting  drive	Decelerating motor + Chain drive  gear all by high-frequency
Control System	PLC system: Mitsubishi, Panasonic,Dental,Siemens,Schneider
Feeding Material width	Better as your drawing or from our designer
Feeding Thickness	0.3-0.6mm
Effective width	Better as your drawing or from our designer
Productivity	8-12m/min
Package of machine	Waterproofing membrane, standard export packing

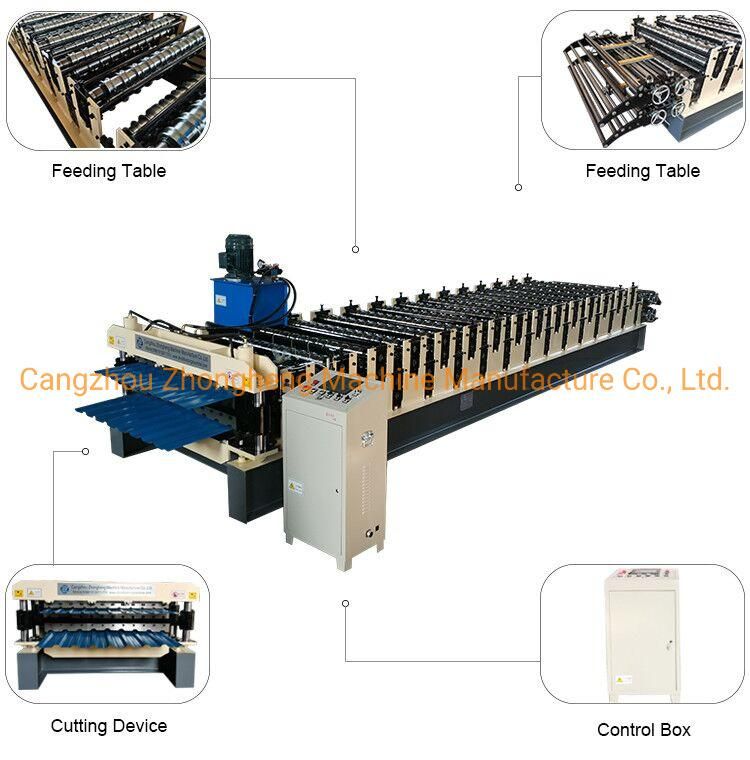

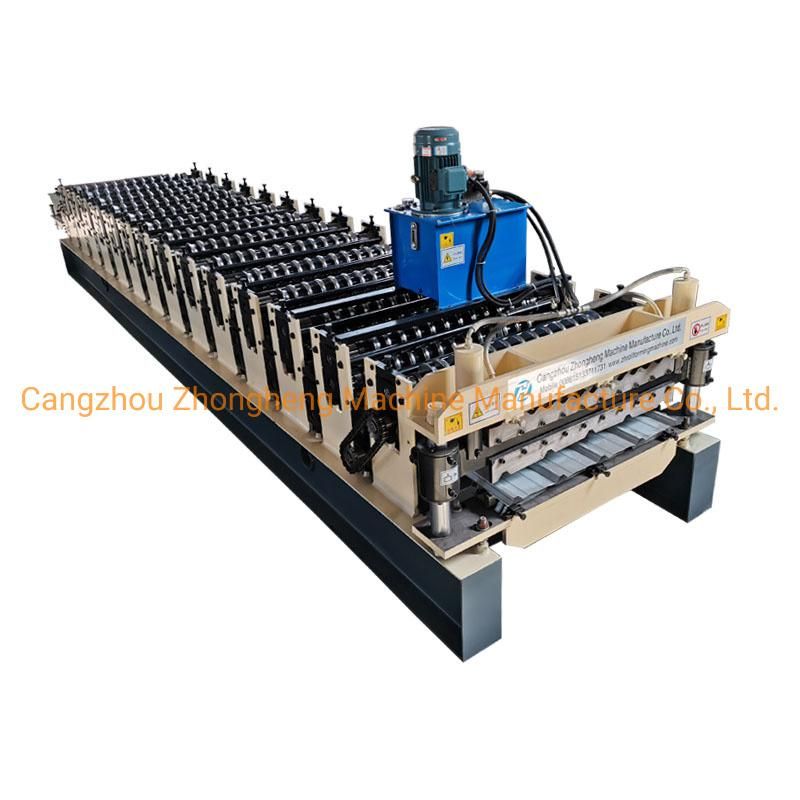

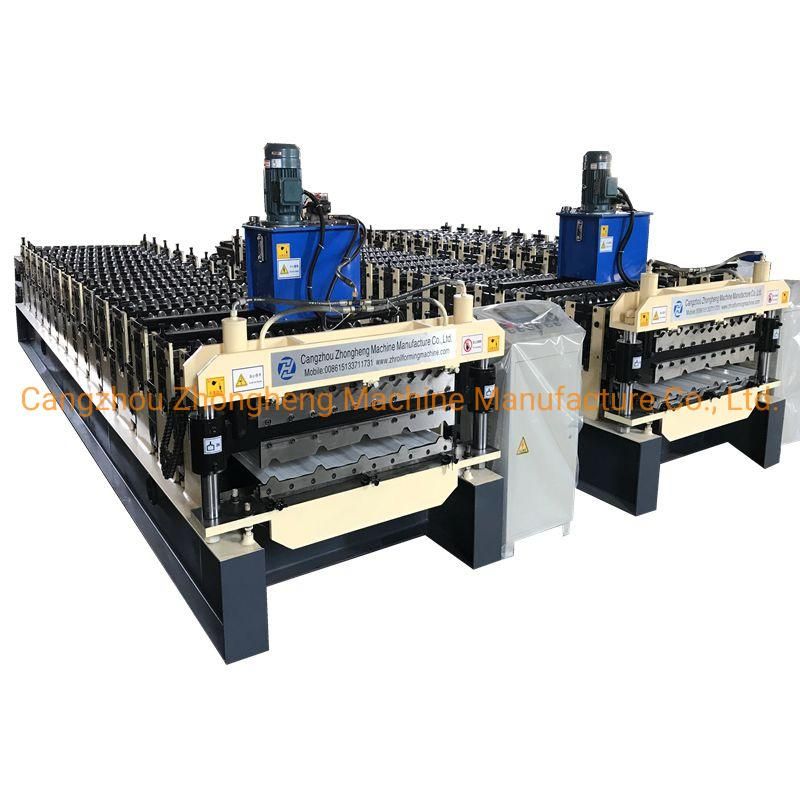

Detailed Photos


Packing and Shipping

1. Double Layer Forming Machine/Roll Forming Machinery/Double Sheets Roll Former need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

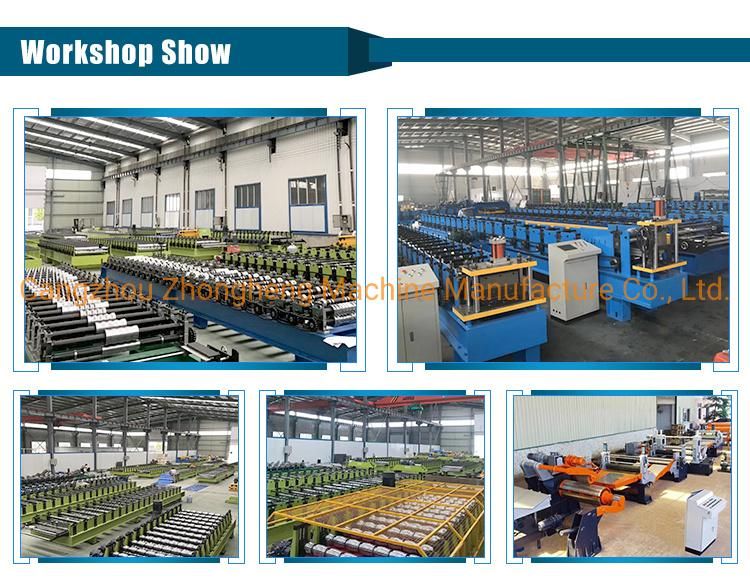

Company Introduction




FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
