Building Material Making Machinery

62 Pieces Slitting Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • After-sales Service:Whole Life After Sale Service
  • Warranty:Whole Life After Sale Service
  • Tile Type:Colored Steel
  • Certification:CE
  • Condition:New
  • Customized:Customized

Base Info

  • Usage:Roof, Wall
  • Transmission Method:Electric
  • Feature:62 Pieces Slitting Machine
  • Suitable Material:PPGI Gi
  • Thickness:0.3-3mm
  • Width:500-1500mm as Custom Profile
  • Voltage:380V
  • Speed:60m,Min
  • Motor:30kw
  • Control:PLC Delta
  • Cutting:Hydraulic , Electric
  • Key Selling Points:Easy to Operate
  • Cutting Blade:Cr12 MOV
  • Delivery Time:40 Days
  • Transport Package:Plastic File
  • Specification:0.3-3mm
  • Trademark:ZH
  • Origin:Hebei, China
  • HS Code:8455221000
  • Production Capacity:20 Sets Per Month

Description

1Loading coil Car2Decoiler 5Ton -15Ton for Option3Straightener Device (Optional)4Head Shear /pinch roll/5Bridge/loop pit6Side guide7Mail Slitter8Side Guide& scrap winder9Bridge/Loop pit10Separator&Tension station11Recoiler and support Arm12Unloading coil car13Hydraulic system14Electronic controller(PLC , Control table)

2.Parameter:

a.Raw Material data:

Material thickness:0.2-3.0mm

Material width:400-1500mm

Coil I.D.: Φ508mm/Φ610mm

Coil O.D.: ≤Φ1600mm

Coil weight:15 tons max

b.Finished Product:

Coil I.D.: Φ508mm

Coil O.D.: ≤Φ1600mm

Coil weight:15 tons max

Narrowest strip width slit into: 20 mm

Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)

Slitting Bur: 0.05 minimum, 5% of the trip thickness

Rocker: plus or minus 1 mm/m or less

Recoiling Looseness(mm) : ≤2 mm

Pcs of Slitting(Max) : 25 PCS

Line working speed: 60m/min max

Total power: Approx.120kw

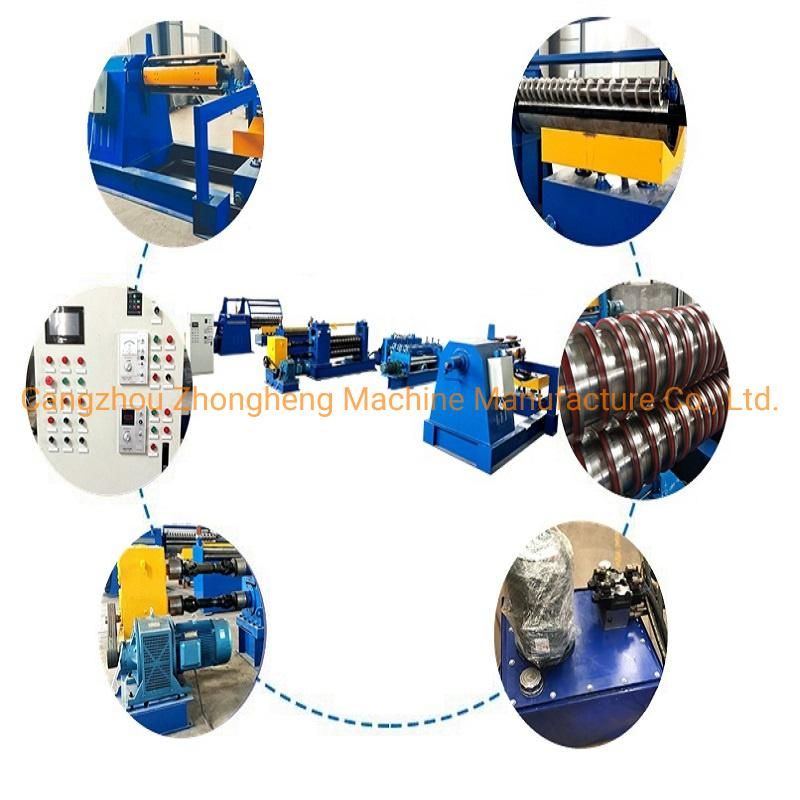

3.Detail of description of slitting line:
62 Pieces Slitting Machine


 A steel factory need to buy several lines for different requirements or big capacity. the narrow coils/rolls are widely used in Steel Pipe Factory, Steel Structure Factory, Storage System Manufacturing Factory, combined with Roll Forming Machine, Power Punch Machine, Pipe Mills.

1.Function: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.

2.Advantages: Convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.

3.Structure: Compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.

4.Material can be processed: galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc.

5.lndustries can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.

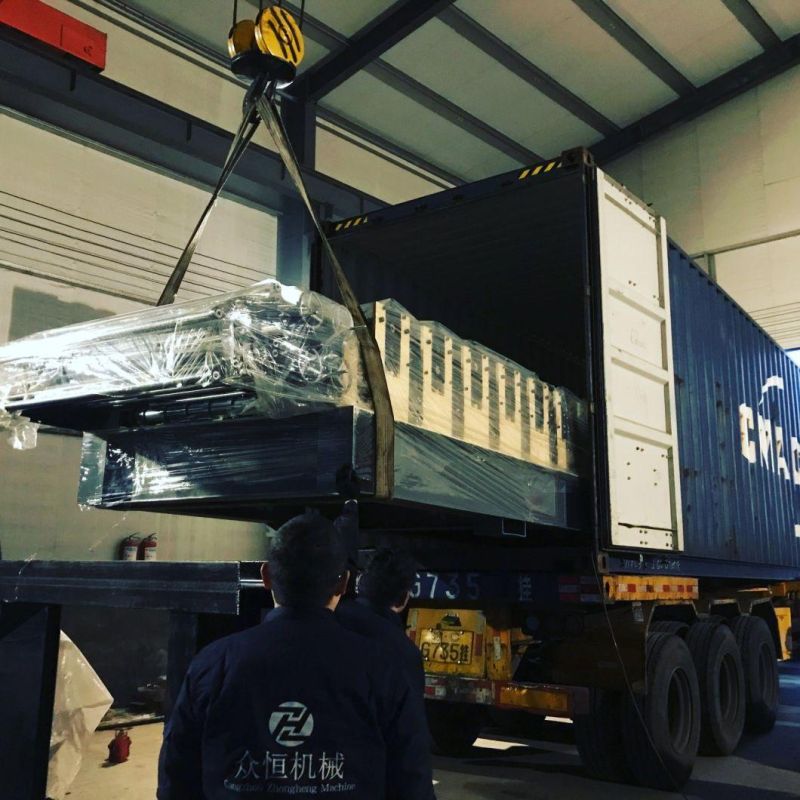

Packing and Shipping

1. Galvanized Carbon Steel Metal Coil Slitting Machine Line need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
62 Pieces Slitting Machine

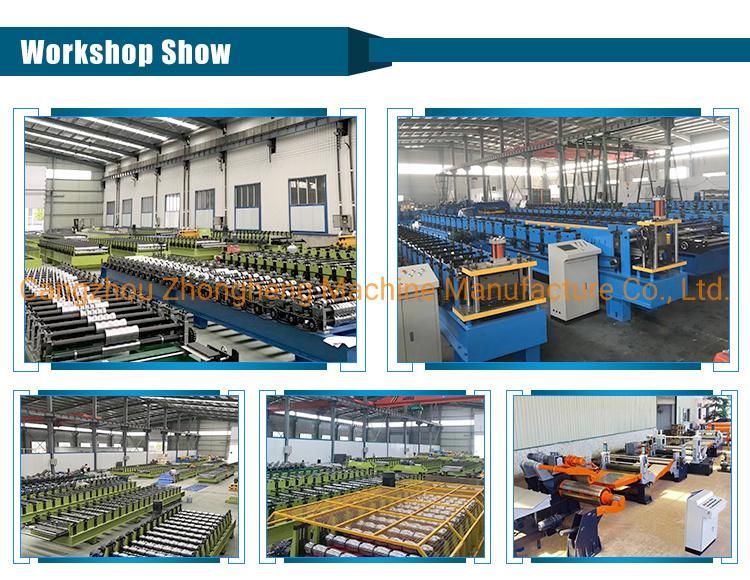

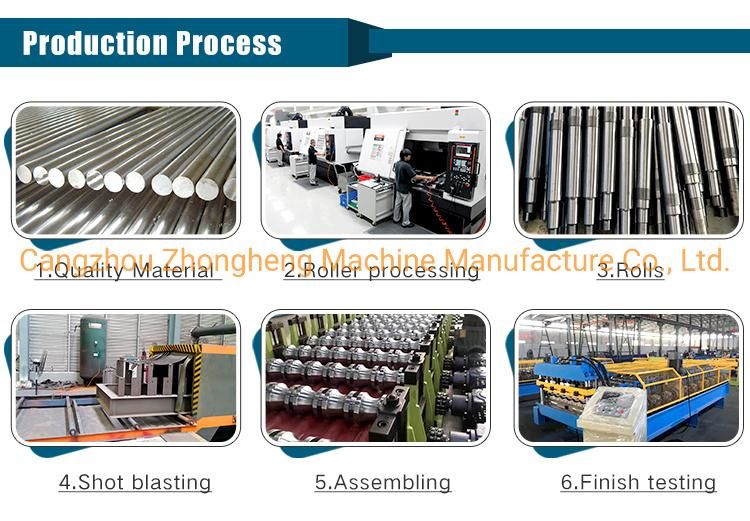

Company Introduction


62 Pieces Slitting Machine
62 Pieces Slitting Machine
62 Pieces Slitting Machine


FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
62 Pieces Slitting Machine
