Roof Sheet Roll Forming Machine/Galvanized Steel Making Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty:1 Years
- Tile Type:Colored Steel
Base Info
- Model NO.:as profile
- Certification:CE
- Condition:New
- Customized:Customized
- Usage:Roof, Wall
- Transmission Method:Machinery
- Mode:1050-210-25 Roof Sheet
- Feeding Width:1250 Mm
- Finial Product:1050-210-25 Ibr Roof Sheet
- Main Motor:4 Kw
- Pump Motor:4 Kw
- Shaft Diameter:75mm
- Forming Steps:13 Rows
- Main Frame:300 H,U Steel
- Forming Speed:8-12 M,Min
- Machine Size:6500mm*1450mm*1400mm
- Transport Package:Waterproof Package
- Specification:DX 1250-1050-210-25
- Trademark:DIXIN
- Origin:China, Hebei
- HS Code:84552210
- Production Capacity:38 Sets Per Month
Description
Basic Info.
Model NO. as profile Certification CE Condition New Customized Customized Usage Roof, Wall Transmission Method Machinery Mode 1050-210-25 Roof Sheet Feeding Width 1250 Mm Finial Product 1050-210-25 Ibr Roof Sheet Main Motor 4 Kw Pump Motor 4 Kw Shaft Diameter 75mm Forming Steps 13 Rows Main Frame 300 H/U Steel Forming Speed 8-12 M/Min Machine Size 6500mm*1450mm*1400mm Transport Package Waterproof Package Specification DX 1250-1050-210-25 Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 38 Sets Per MonthProduct Description
Roof Sheet Roll Forming Machine/galvanized steel making machineDetails of Parameters
1. Configurations: Manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system
2. Processing material: Aluminium sheet/galvanized steel sheet/color steel sheet
3. Material thickness: 0.3-0.8mm
4. Effective width: 1050-210-25 mm
5. Feeding width: 1250 mm
6. Main motor power: 4kw
7. Pump power: 4 kw
8. Shaft diameter: 75mm
9. Forming steps: 13 steps
10. Main frame: 300H steel
11. Medium plate thickness: 14 mm
12. Control system: PLC computer control with inverter
13. Power supply: 380V, 3 Phase, 60Hz
14.0veral sized: 6500mm*1450mm*1400mm
15. Total weight: About 3.0 tons
16. Roller material: High grade NO. 45 forged steel, with hard chrome plating
17. Shaft material: High grade NO. 45 carbon wrought steel
18. Cutter material: Cr12 mould steel with quenched treatment.

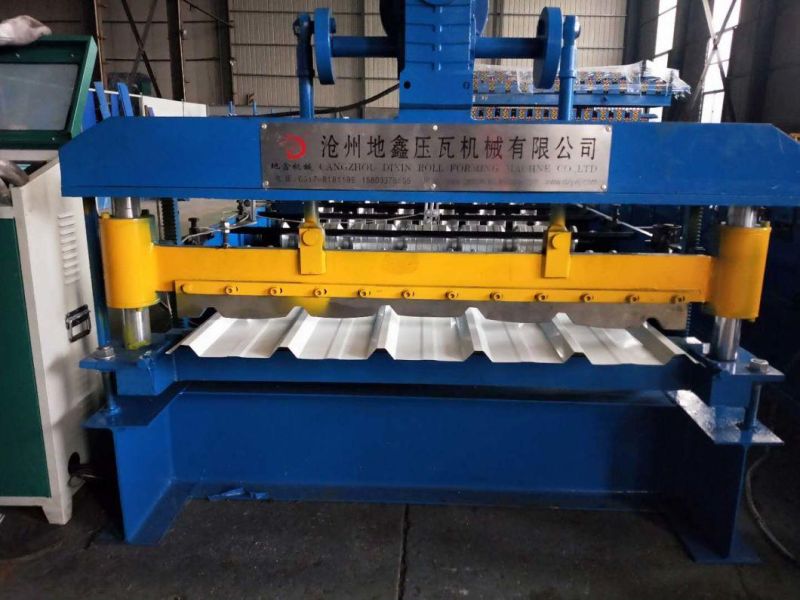

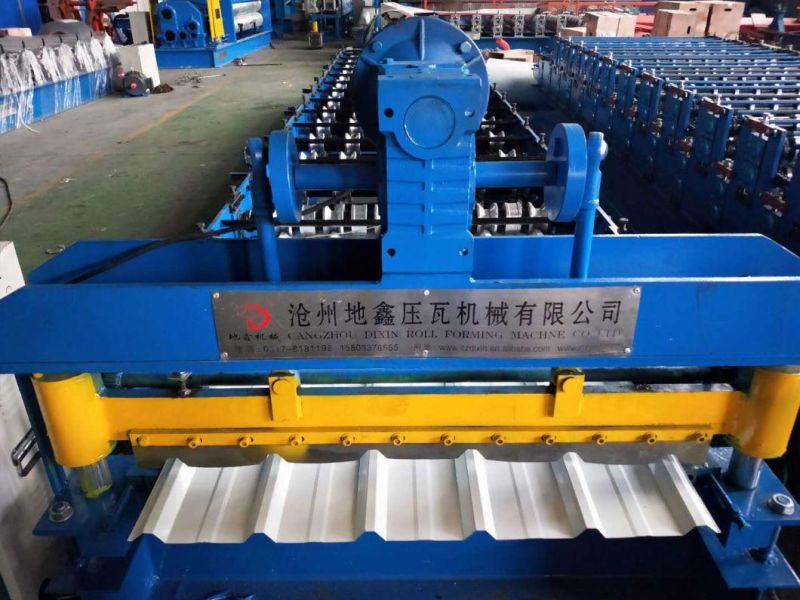

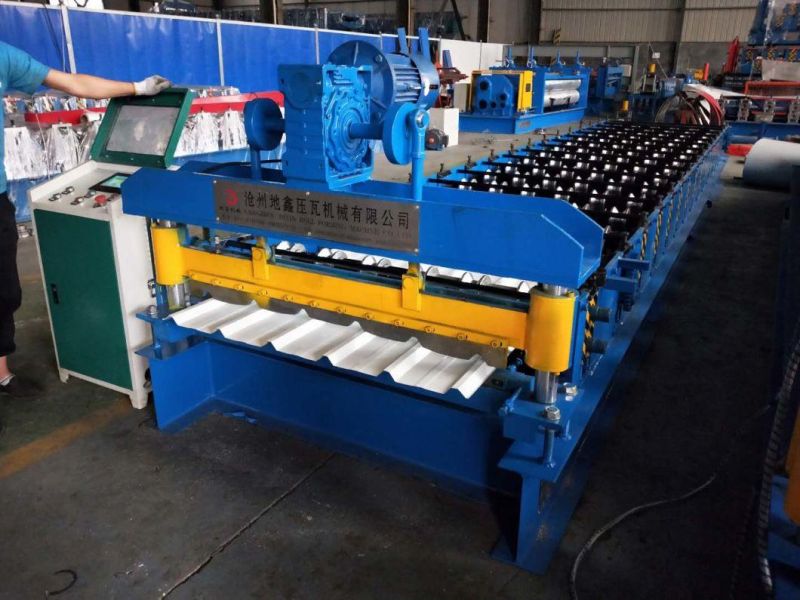

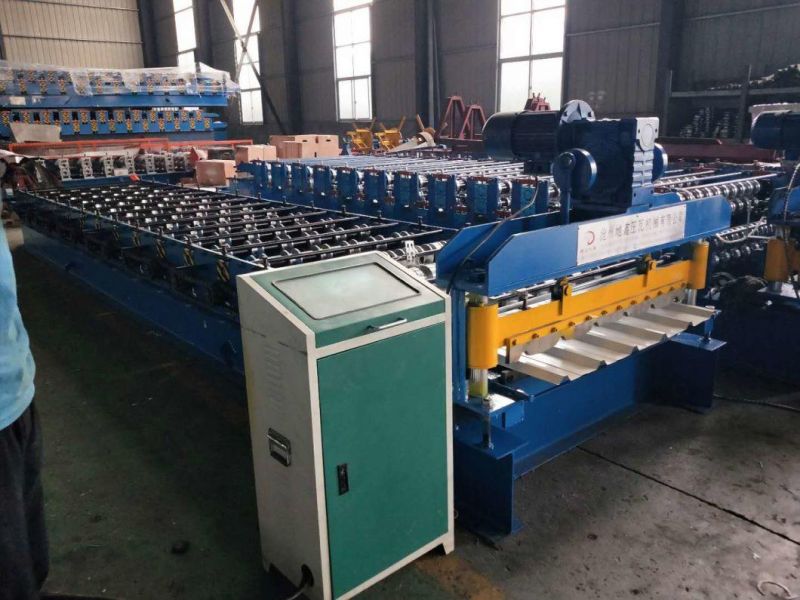

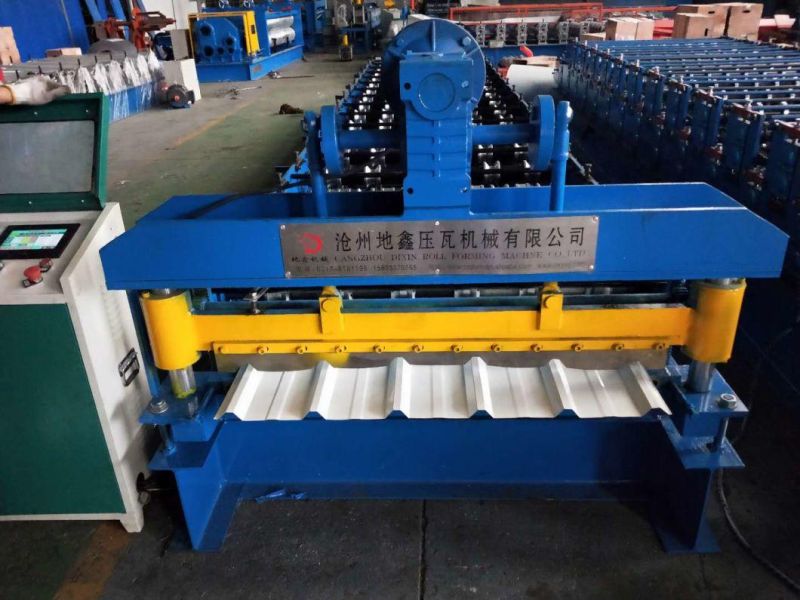

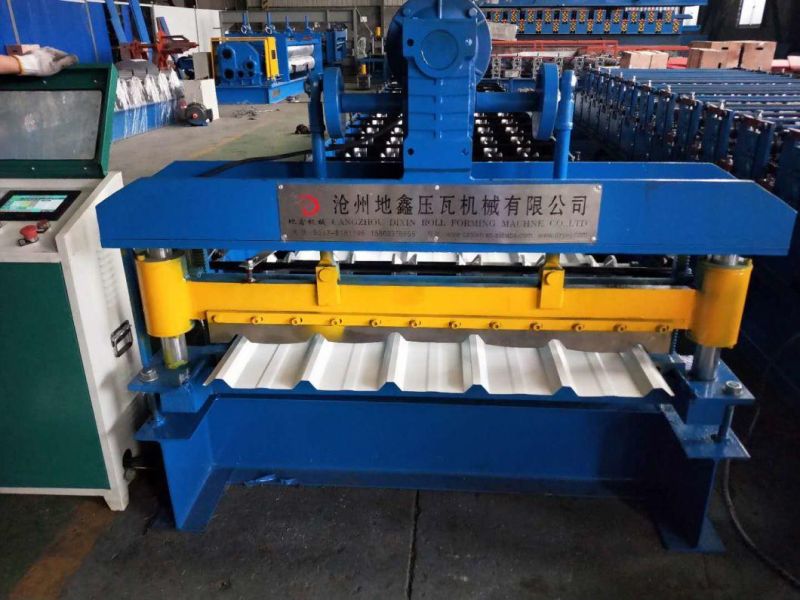

Some machine photos for your reference.
Consist of/Whole production line
Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table
Package:
15 forming steps in a 40 foot container
13 forming steps in a 20 foot container
1 | Direct manufacturer Since 2008 |
2 | Golden customer evaluation and complete after-sale service |
3 | CE,SGS,BV,TUV-- |
4 | Custom design to satisfy trader,factory or personal use |
5 | Environmental protection production line ,no harm to environment and animal |
6 | Easy communication and feedback,professional advice for free |
7 | Engineer service in your factory available and economic |
