Automatic Piping Fabrication Production Line
Nanjing Auto Electric Co., Ltd.- Condition：New
- Customized：Customized
- Application：Industry
- Type：Pipe Production Line
- Automatic Production Line：Comprehensive
- Flexible Production：Lean Production
Base Info
- Model NO.：AUTO Fixed Type
- Production Scope：Product Line
- Rhythm：Flow Production Line
- Automation：Automation
- Transmission Type：Flexible
- Certification：ISO, Ce, Lr, ABS
- Transport Package：Packed in Container
- Specification：SGS, ISO9001: 2008
- Trademark：NAEC
- Origin：China
- HS Code：85153190
- Production Capacity：200 Sets,Year
Description
It has features as following:
1. Suitable for pipe diameter: 2~60"
2. Suitable for Pipe SCH:3~80mm
3. High speed and accurate cutting processing efficiency and effect
4. Multi-types of bevel type, including single V, double V and J type
5. Motorized multi-function fitting-up guaranteeing fitting-up accuracy
6. Conveyor handling system improving handling efficiencence
7. TIG/RMD-MIG/MAG/FCAW/SAW welding process available
8. Automatic pipe welding rate: Up to 80%
9. Be matched with production management software
Configuration:
| 1 | Pipe Cutting & Beveling All-in-one Machine |
| 2 | High Speed Band Saw Cutting Machine |
| 3 | High Speed CNC Pipe End Beveling Machine |
| 4 | Two / Multi- Axis CNC Flame/Plasma Cutting Machine |
| 5 | Multi-function Pipe Fitting-up Station |
| 6 | Conveyor Handling System |
| 7 | Automatic Pipe Welding Station (different types available, 8" type, 24" type, 32" type, 48" type, 60" type) |
NAEC is dedicated to be pipe spool fabrication expert. Out system design capability is able to minimize user's manpower consumption of one unit Dia. Inch fabrication work. Our design ability can be as low as 0.142 manhour/D.I. It means the comprehensive productivity under automatic fabrication mode can achieve up to 15 times higher than that under traditional manual mode.
Our solution covers fabrication of different materials, such as C.S, S. S, Alloy steel, Duplex S. S. etc, from pipe dia. 2" to 60". Besides our automatic welding station can do automatic TIG/ RMD-MIG root pass and TIG/ RMD-MIG/MIG/ SAW fill and cap pass.
We not only provide effective pipe spool fabrication solution, but also provide fast build up workshop solution, raw material prefabrication, finished spools Non-destructive testing solution, which can speed up the whole production construction cycle and guarantee project quality.
Based on the above ability, our pipe spool fabrication system has been recognized worldwide and been used by many famous contractors all over the world due to the high efficiency and good quality production and mostly manpower saving advantages. We have strong confidence in providing professional solution for your pipe spool fabrication workshop.

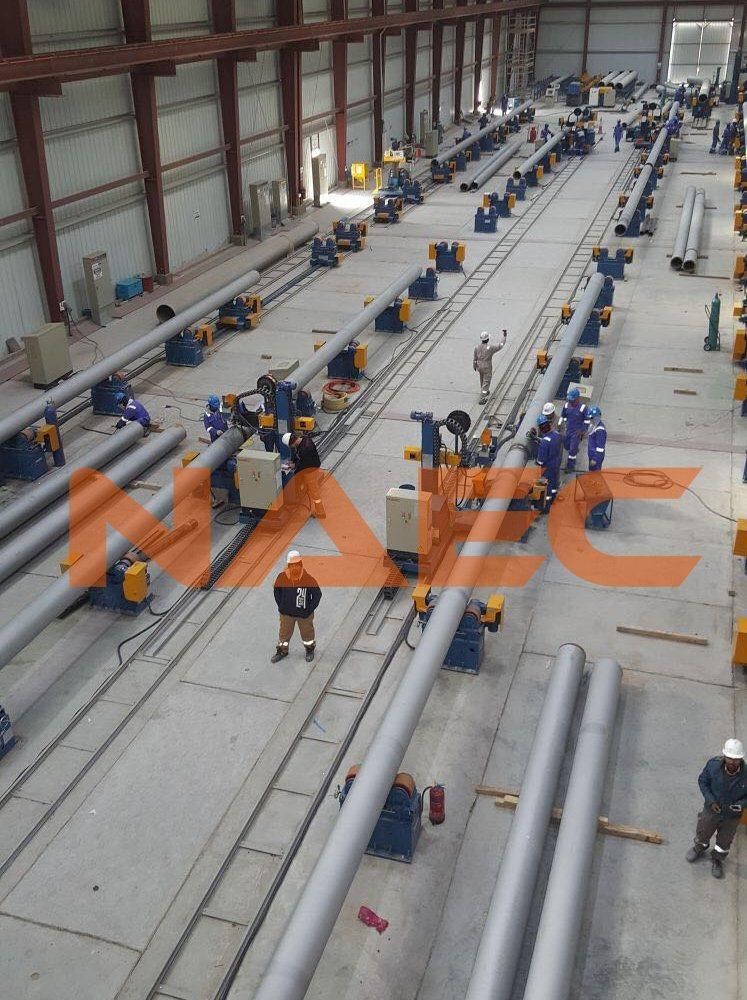

There are two types of pipe spool fabrication system: fixed type and containerized type. Fixed type is more suitable for heavy work load fabrication, and can get higher automation rate. Containerized type is more suitable for on site fabrication.
Welcome to visit our headquarter in Nanjing, China. For more information please contact us. Thank you!
