• Model NO.：request
• Customized：Customized
• Usage：Roof, Wall
• Transport Package：Nude
• Specification：7500*900*1400mm
• Trademark：dixin
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

No.

main parameter of gutter roll forming machine

1

Suitable to process

Color steel plate, galvanized sheet, aluminum coils and etc.

2

Width of the feeding material

According to the profile

3

Rollers station

18 rows

4

Thickness of feeding material

0.3-0.8mm

5

Power

4+4kw

6

Size

8500*800*1500mm

7

Productivity

8-12m/min

8

Diameter of shaft

52mm

9

Weight

About 4.8 T

10

Voltage

380V 50Hz 3phases

11

Rolling material

Carbon Steel 45#

12

Material of the cutting plate

Cr12

13

Wall thickness of main forming machine

16mm steel plate

14

Main structure of the machine

300 H steel

Processing technique and deployment
Processes: manual decoiler --- feeding table --- Roll forming machine --- PLC system --- Hydraulic system --- Post cut

Main components

1.manual uncoiler2.main forming machine3.Computer control cabinet4.power and pump station5.hydraulic cutting

 1) Color ,Size,Profile can be customized
2) We accept various of payment terms,like:T/T,L/C,Trade Assurance etc
3) If you visit our factory,we can pick you up at station/airport
4) Short delivery time,aroung 20 days after received your deposit.

Installation and training:
If buyers visit our factory and check the machine,we will teach how to install and use the machine and also train your workers/technican face to face.Without visiting,we will send you manual and video to teach you install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


PLC Control System:

Adopts PLC control technology, frequency adjust speed technology realize the automatic production

Provide good man and machine screen, which can set the batches, plate length and quantity

Operation type: button+Screen

Using encoder to calculate the number and measuring the length


Hydraulic pump station

It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job


Decoiler type:Manual Decoiler

Manual Expansing and tension

Passive uncoil

Coil I.D:508mm

Coil Width:1250 Max

Weight Capacity of Decoiler:5 ton


Output table

It is used to load the finished sheet. This kind is convenient for shipment.

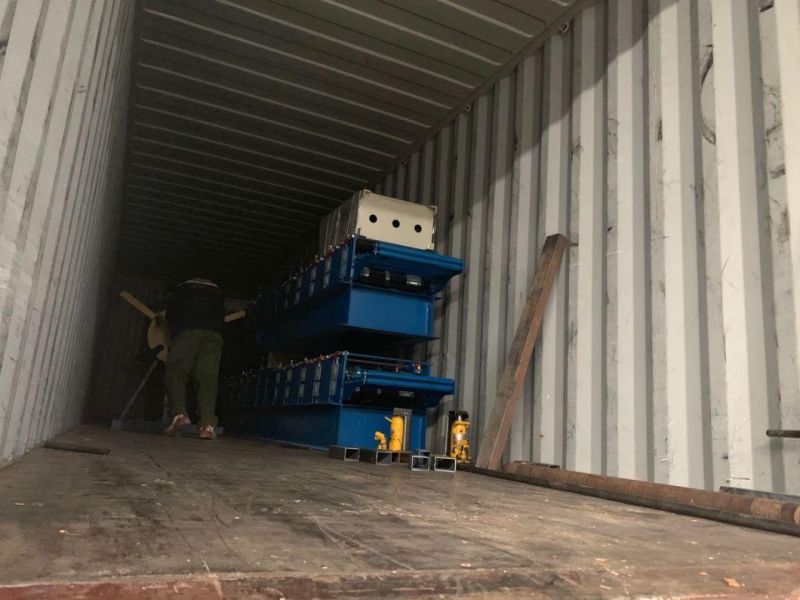

Shipping and packing details

1. Standard pack: main machine is naked, and the computer control system is packed by wooden box.

2. or Packing according to customers' needs

3. We have professional technician for loading Guaranteed the goods load into container without any damage.

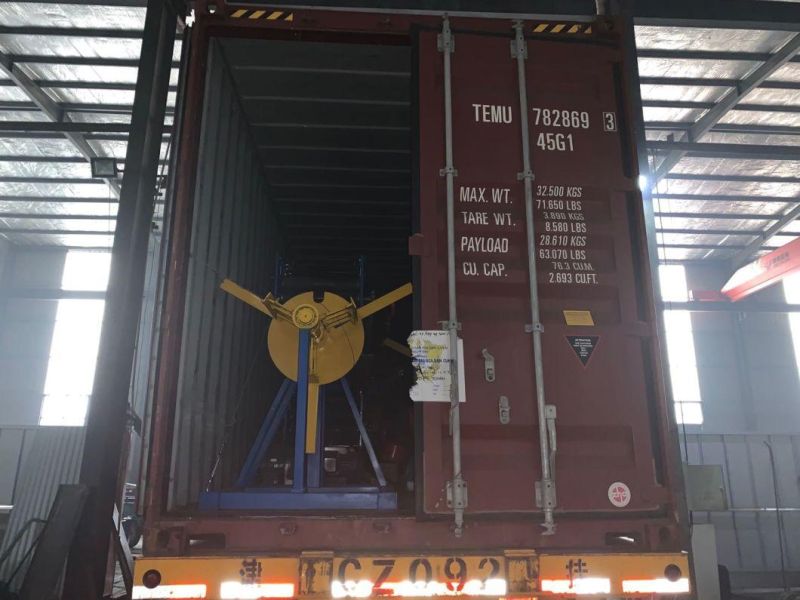

4. Transportation : Machines need one 20 or 40 feet container.






Pre sale service

1. Offer you all detailed technical parameter of machine

2.We can make profile drawing for you according to your picture

3.Welcome visit our factory before order ,we can pick you up at Beijing /tianjin airport

After sales service

1. Operation manual and opearation viedo is available

2.Engineer after sales service is available

3.We can teach clients how to operate the machine without training charges

4.One year after sales service for free and whole-life technical service support



Zambia customer come for inspection





Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

Please contact Bella Tel/ :008618231723279
