Building Material Making Machinery

WPC PVC Foam Board Machine Line

Wuxi Boyu Plastic Machinery Co., Ltd.
  • Product Type:Extrusion Molding Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Double-Screw
  • Certification:CE, ISO
  • Condition:New

Base Info

  • Model NO.:BYSJ
  • Customized:Customized
  • Type:Sheet Extruder
  • Plastic Processed:PVC
  • Feeding Mode:One Feed
  • Assembly Structure:Separate Type Extruder
  • Screw:Twin-Screw
  • Engagement System:Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Transport Package:PVC Film
  • Specification:CE SGS
  • Trademark:BOYU
  • Origin:Wuxi
  • HS Code:8477209000
  • Production Capacity:30 Machine Lines ,Month

Description

Basic Info.

Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PVC Film Specification CE SGS Trademark BOYU Origin Wuxi HS Code 8477209000 Production Capacity 30 Machine Lines /Month

Product Description

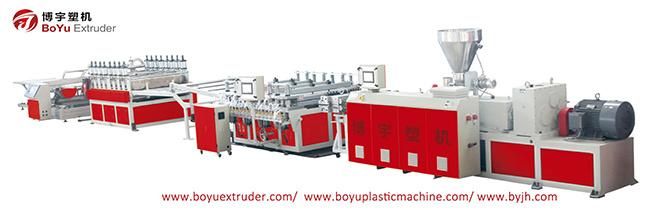

                              WPC PVC Foam Board Machine Line



WPC PVC Foam Board Machine Line



I.Main Designing Parameter of production line
No.ItemsData
01Operation Conditions380V/3 phases/50Hz, DC24V.
02Raw MaterialPVC powder, calcium carbonate, wood flour, auxiliary chemicals
04Main material proportionPVC: CACO3= 1:3
05Product specificationsWidth:1050mm/1350/1850/ 2500 for optional
Thickness: 2- 40mm
06Extrusion line modeSJSZ 80/156 conical twin screw extrusion line
07Quality standardTwin screw standard JB6492-2001
Electricity standard: GB5226.1-2008/IEC  60204-1:2005
08Machine Fabrication CertificateCE /UL
09Electric components certificateCE /UL /CSA

II.Equipment composition list of production line
 2.1  SJSZ80/156 twin screw extruder        one set
 2.2   Material mixing and feeding system  1 unit
2.3  PVC Foam extrusion module                 1 set (3-22mm thickness )
2.4  Mat setting machine                             1 set
2.5   Cooling roller brackets                         1 unit
2.6   8 Pairs (16 roller) traction machine     1 set
2.7   Plank Shearing machine                       1 set
2.8    Edge trimming device                          1 set
2.9   Stacking Machine                                  1 set
2.10  Electric Control System                        1 unit

III.Advantages of BOYU WPC Production Machine Line :
1.PLC Computer automatic control system
2. Adopted International famous brand for all electric components
3.Synchronization control system to ensure main extrusion speed can synchronous  with haul-off speed to avoid board break occurring
4.Screw fracture prevention control system ( A software system to control and adjust the screw running speed)
5.Auto board stacking system (save labors)
6.Anti blocking mold system
7.Vacuum loading and dust collector system

IV.Pre-sale service:
1.To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: WPC Foam Board Machine...
2.The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

V.After-sale service:
1. Making pre-shipment trial inspection for customers.
2.To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
3.To direct technology aspect of relevant use according to customers' requirements
4.To provide technical training for clients' employees.
5.To be responsible for maintenance service, door-to-door service under the necessary circumstance.

VI. BoYu's Advantages
WPC PVC Foam Board Machine Line

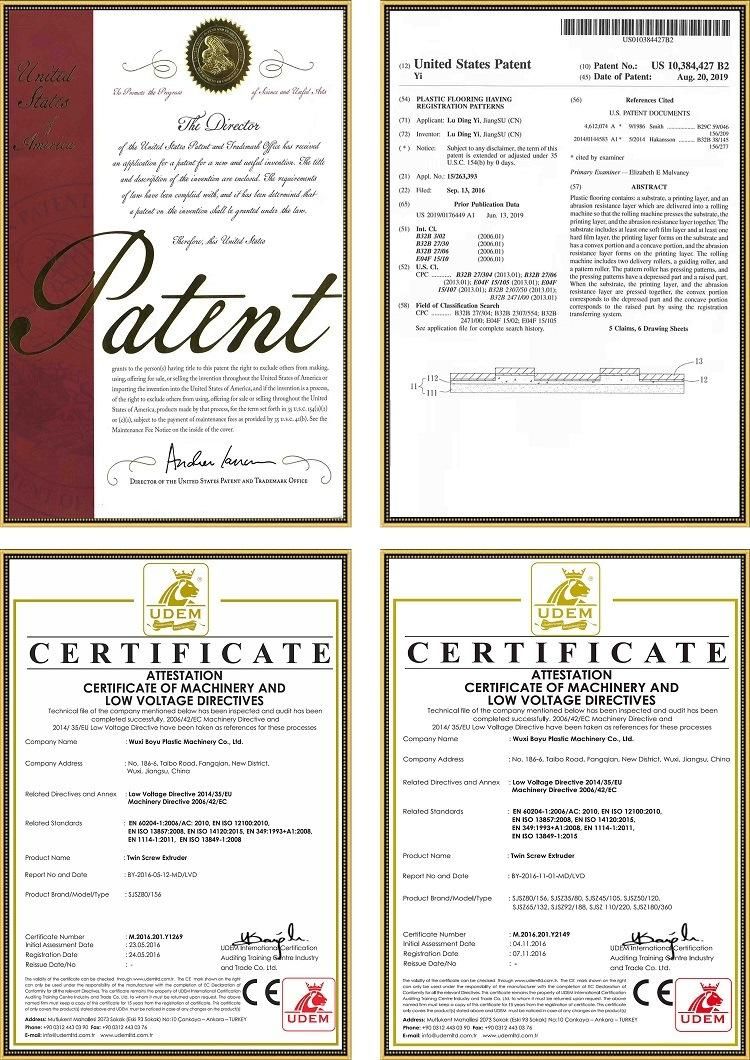

VII. BoYu's Certificate and Patents
WPC PVC Foam Board Machine Line

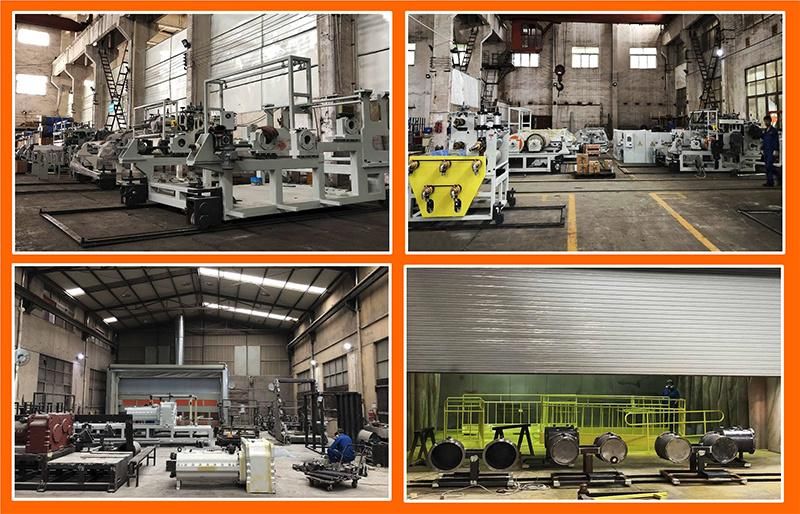

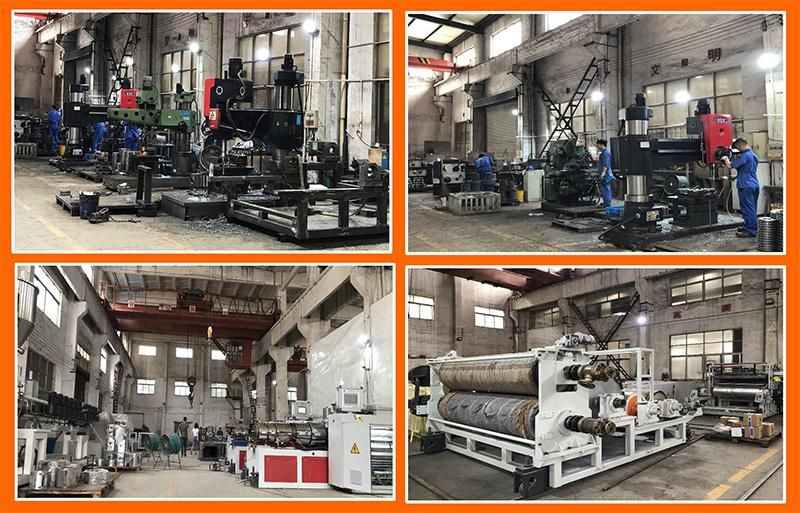

VII. BoYu's production workshops

WPC PVC Foam Board Machine Line
WPC PVC Foam Board Machine Line
