• Model NO.：800,840mm
• Condition：New
• Customized：Customized
• Usage：Roof
• Transmission Method：Hydraulic Pressure
• Shaft for Rollers：Processed with Cylindrical G
• Forming Speed(M/Min)：About 8-12
• Cutting Mode：Automatic Hydraulic Cut to Length
• Cutter Material：Cr12 Mould Steel
• Thickness：0.3-0.8mm
• Roller Material：45# Steel, Coated with Chrome
• Main Motor Power(Kw)：4 Kw
• Type：Roll Forming Machine
• Method：Steel
• Transport Package：Standard Export Package, Water-Proof Package
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20 Sets Per Month

.Weight capacity of decoiler4.8T2.Appearance Size(L*W*H)8800*1400*1500MM3.Raw material /feeding sheet material colored steel & galvanized steel4.Roller material45# high grade steel5.Shaft material45# high grade steel  6.Kind of drivechain drive7.Cutting systemautomatic hydyaulic cutting8.Cutting blade materialCr 12  high grade steel9.Frame material350 H-high grade steel10. Control systemtotally automatic PLC control system with touch screen11.Total power 5.5+4 kw12.Roller stations Both 13 rows13.Speed of production Q tile 2-4m/min ,IBR sheet 8-12m/min14.Thickness of colored steel0.3-0.8mm15.Feeding width1000mm16.Effectiv width800mm,840mm15.Frame material350 H-steel

3.Components of production line

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set

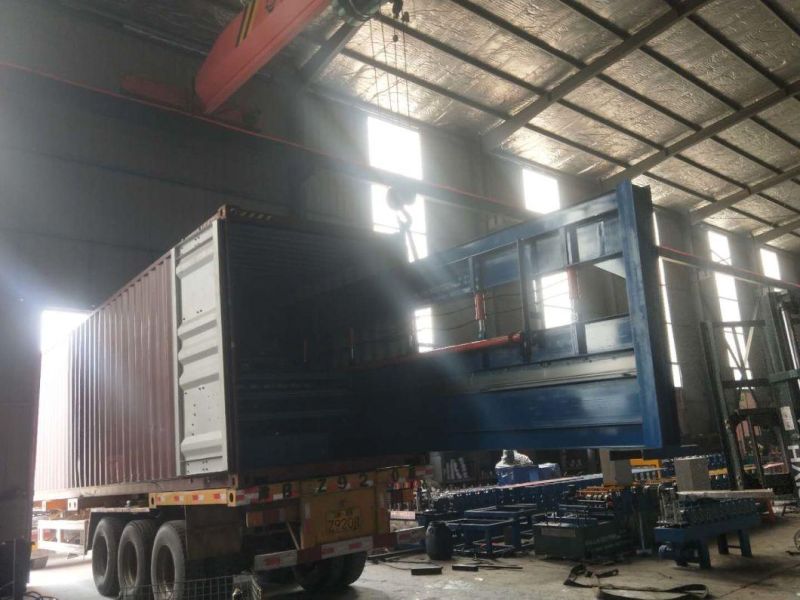

4.Packing and shipping

a. Need one 20 or 40 ft container, according to your final drawing.

b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is

    covered with anti-rust oil.

c. Spare parts in carton box.

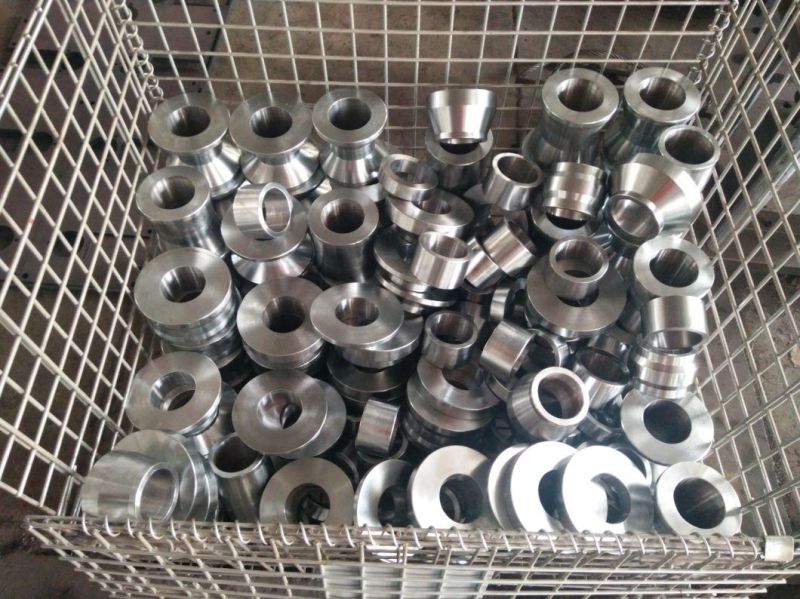

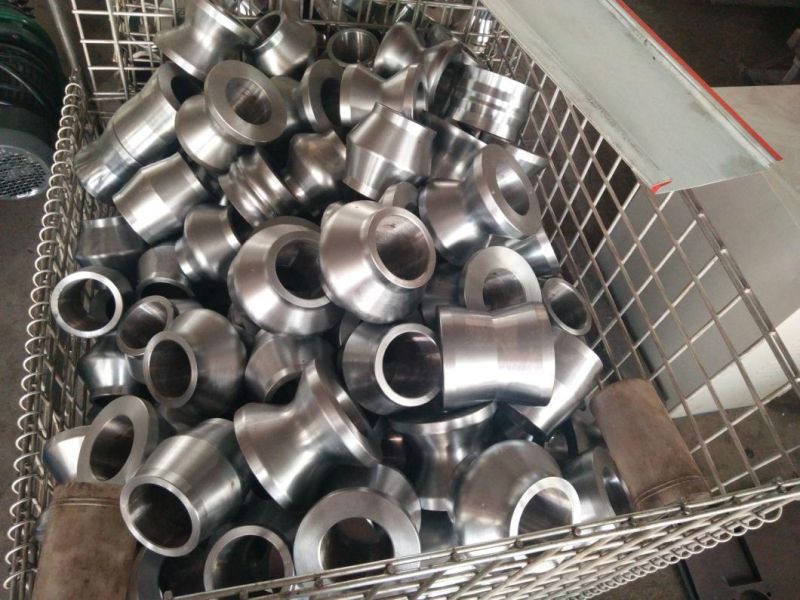

5.Some materials pictures for your reference.




6.Customers come for inspection
These two customers are from Zimbabwe. Their company has ordered four machines from us. This is our first cooperation,So they come to visit the factory and inspect the machines,And see how we put the machines in the container.



      FAQ:

1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.

2. Do you provide training for my workers?

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.

3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.

4. What is included in the machine?

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.

a. Put the machine on the flat level ground.

b. Inject gear oil and hydraulic oil.

c. Connect 3 phase electric wire.
