• Model NO.：Double deck
• Certification：CE, ISO, ISO9001: 2000, CE, SGS
• Condition：New
• Customized：Customized
• Usage：Roof
• Transmission Method：Hydraulic Pressure
• Product：Deck Steel Sheet Forming Machinery
• Method：Steel
• Processing：Steel
• Brick Raw Material：Steel
• Automation：Automatic
• Tolerance：1.0mm
• Shaft：75mm
• Color：Blue
• Middle Plate：18mm
• Transport Package：Standard Export Package, Water-Proof Package
• Specification：CE
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20 Sets Per Month

1.Processing material

aluzinc/galvanized steel/colored steel coil

2.Material thickness

0.3-0.8mm

3.Feeding width:

1220mm

4.Effective width

As drawing

5.Main motor power

4kw

6.hydraulic pump power

4kw

7. Shaft diameter

75mm

8.Forming steps

13steps/13 steps

9.Main frame

350H Steel frame

10. Side plate thickness

16mm

11.Roller material

45# forged steel, with hard chrome plating

12.Control systerm

Delta PLC control system with touch screen

13.Cutting blade material

Cr12.

14.Working speed

Glazed tile about 2-4m/min, rib design About 10-15m/min

15. Transmission way

1 inch chain drive

16. Machine size (mm)

About 7200*1500*1500mm

17. Machine weight

About 6 ton

18.Power supply

220v,3phase,50hz or accodring to customer request

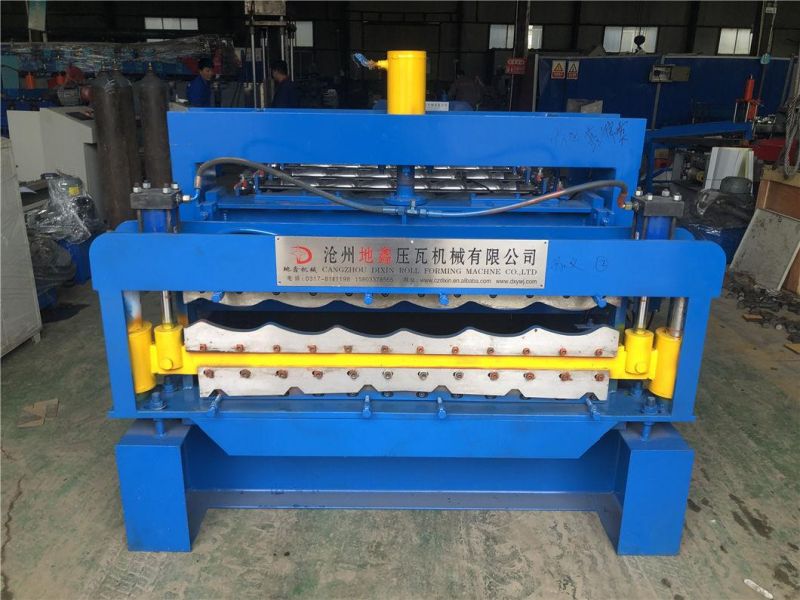

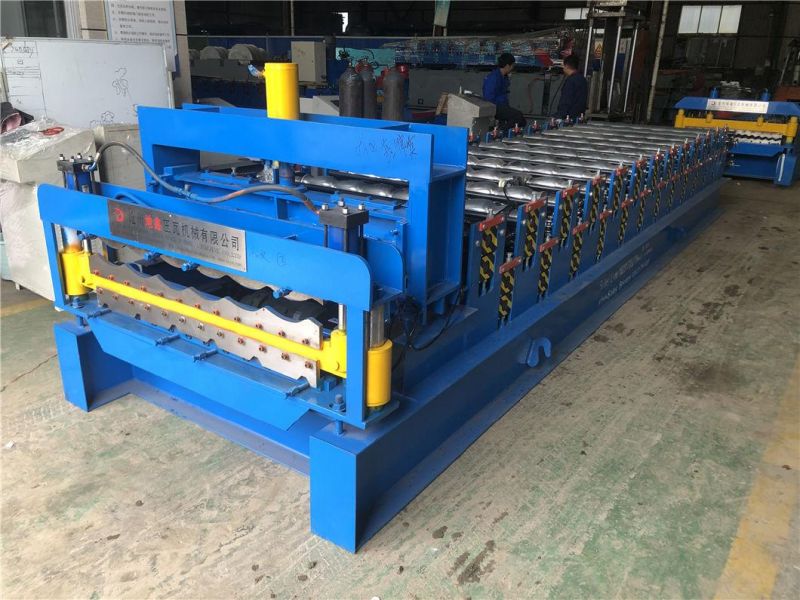

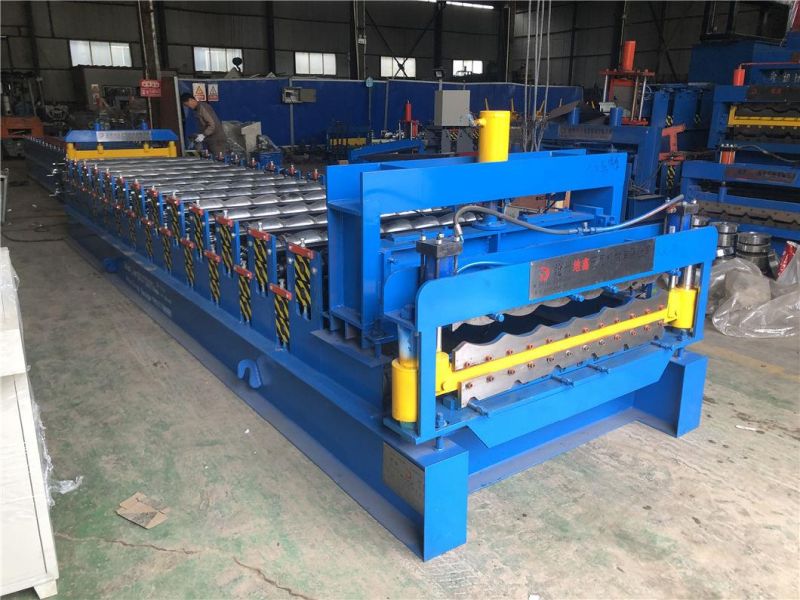

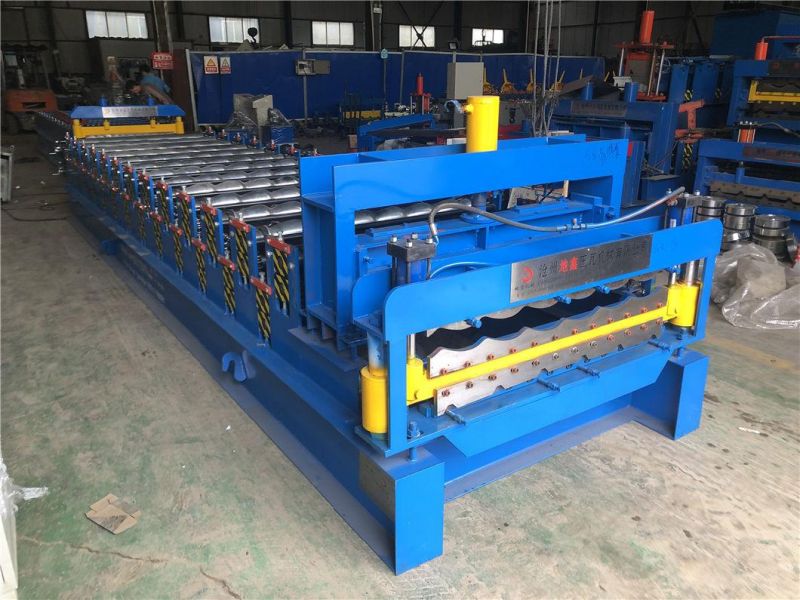

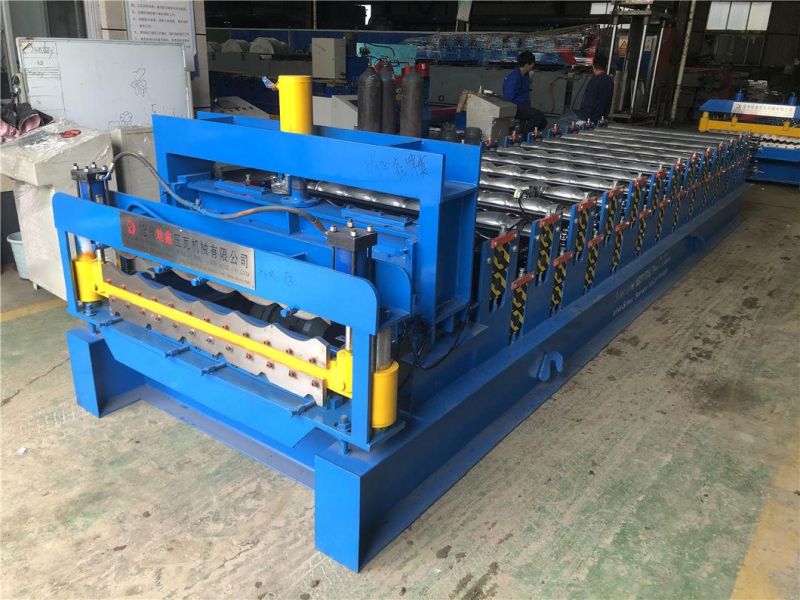

Some machine pictures for your reference.



2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
12 months, and lifelong technical support service

6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 50 USD/day for salary.

7. Package
A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.



Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler.



 Q: How to visit your company?

A:a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

    b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



 Q: What can you do if the machine broken?

A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
