• Model NO.：80-350
• Product Name：Purlin Adjustable Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：High Grade No. 45 Forged Steel
• Shaft Material：High Grade No. 45 Carbon Wrought Steel
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Diameter of Shaft：70mm or as Your Requirement
• Forming Steps：12 Rollers
• Productivity：15-25m,Min
• Hydraulic Station Power：22 Kw
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Model NO. 80-350 Product Name Purlin Adjustable Roll Forming Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material High Grade No. 45 Forged Steel Shaft Material High Grade No. 45 Carbon Wrought Steel Cutting Blade Cr12 Mould Steel with Quenched Treatment Diameter of Shaft 70mm or as Your Requirement Forming Steps 12 Rollers Productivity 15-25m/Min Hydraulic Station Power 22 Kw Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

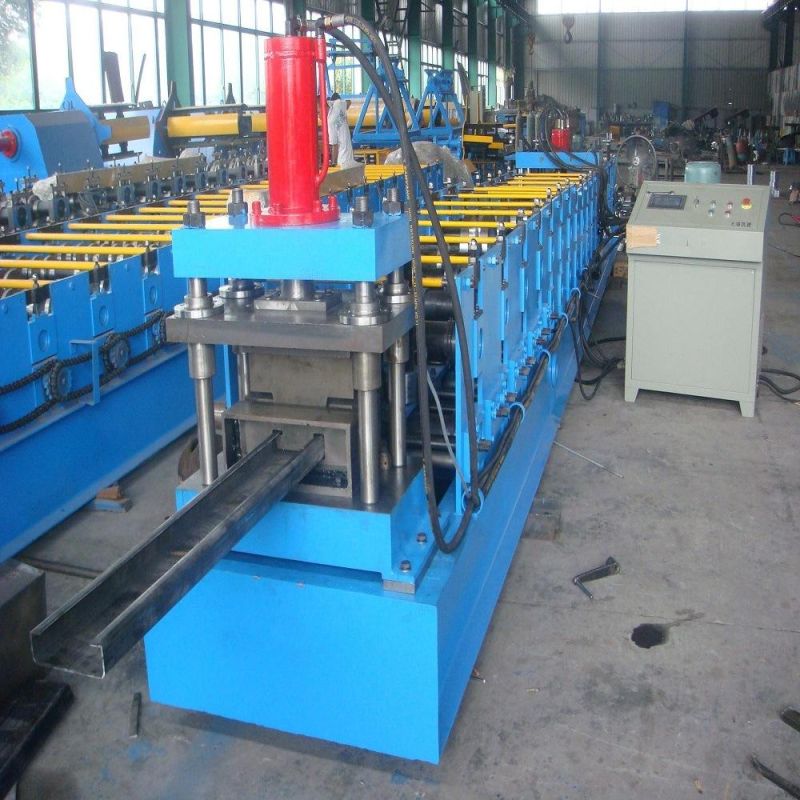

Purlin Adjustable Roll Forming Machine C Z Purlin Machine

This machine is used to make steel C Z purlins for buildings.

Many sizes of purlin can be produced on one machine.

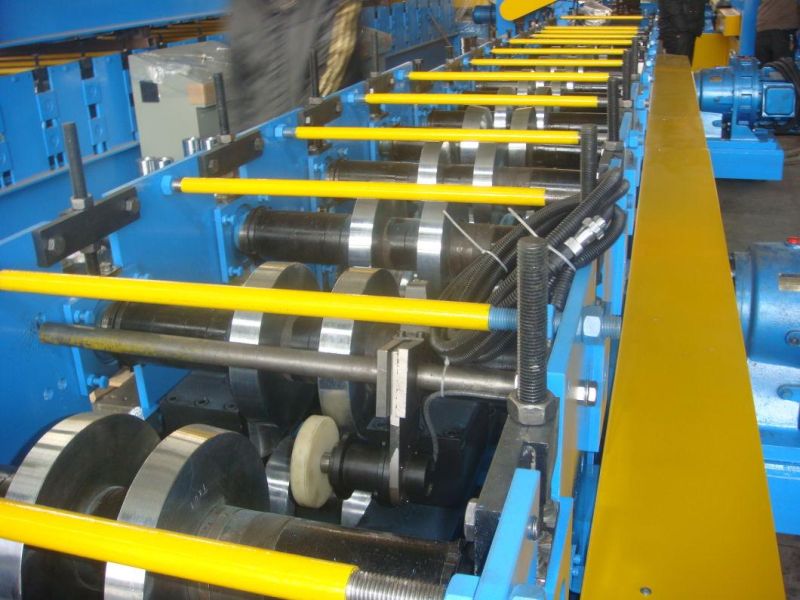

The line mainly consist of uncoiler , coil sheet guiding device ,flattening device ,roll forming system ,

punching equipment ,cutting equipment , hydraulic station ,PLC controlling and support table


Echnical parameters :

Raw material
material spec: sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet: 1.0-3.0 mm
material expand width:175-465mm

Machine details
roller material:High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material:High grade NO. 45 carbon wrought steel
cutting blade:Cr12 mould steel with quenched treatment
diameter of shaft:70mm or as your requirement
forming steps:12 rollers
productivity:15-25m/min
hydraulic station power:22 KW
hydraulic pressure:10-12MPa
controlling system:famous PLC computer control
material of  cutting table:Cr 12 mould steel with quenched treatment
appearance size:6100mm*1150mm*1510mm
hydraulic oil:40# hydraulic oil
Electric tension:380V 50 Hz 3 Phase or as your requirements










ABOUT US:




FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
