• Model NO.：CLXD-200
• Rotary Speed：2800r,Min
• Air Pressure：0.5-0.8MPa
• Worktable Dimension：500*350mm
• Milling Cutter Height：70mm
• Dia. of Milling Cutter：110-200mm
• Machine Dimension：850*740*1280mm
• Weight：300kg
• Transport Package：Wooden
• Specification：Saw blade diameter 200mm
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLXD-200 Rotary Speed 2800r/Min Air Pressure 0.5-0.8MPa Worktable Dimension 500*350mm Milling Cutter Height 70mm Dia. of Milling Cutter 110-200mm Machine Dimension 850*740*1280mm Weight 300kg Transport Package Wooden Specification Saw blade diameter 200mm Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

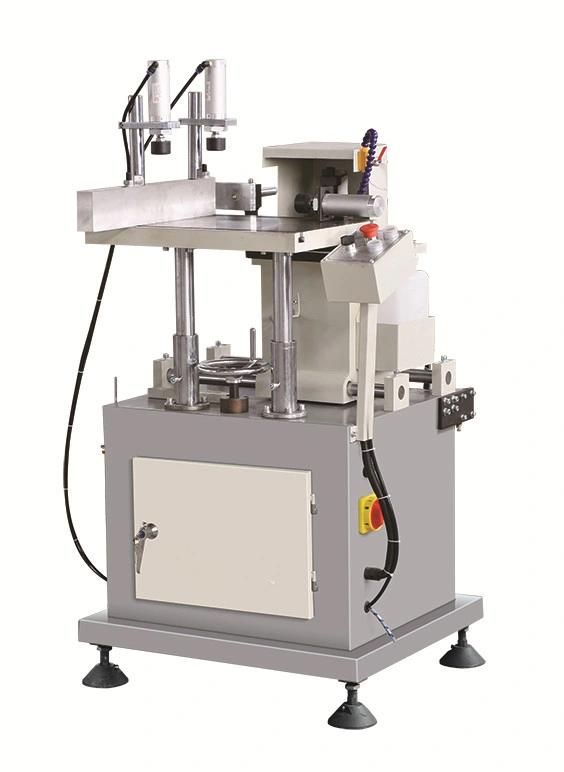

     Aluminum window profile end milling machine with 3 cutters


Machine feature:

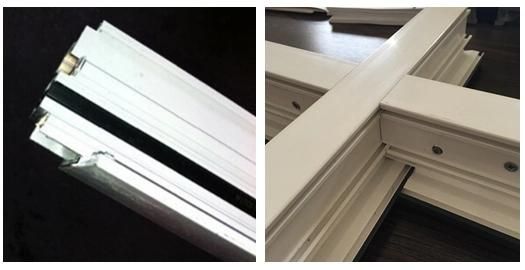

♦ For end milling of transom and door frames in aluminum and PVC profile.
♦ Automatic feeding. Standard pneumatic cylinder. Optional hydro-pneumatic cylinder.
♦ Two vertical clamping ensure stable positioning.
♦ Cutter easily changing for various profile.
♦ Various angle mullion milling for arch window or other special shape window.
♦ Hand wheel for different height adjustment.
♦ Safety covers on the milling cutter.
Parameter:

Model	CLXD-200
Input Voltage	380V 50Hz or customer specification.
Input Power	1.5 (kW)
Main-shaft Revolution	2800(r/min)
Air Pressure	0.6~0.8(MPa)
Diameter of main shaft	32mm
Diameter of milling cutter	110-200mm
Worktable journey	0-320mm
Worktable dimension	500*350mm
Motor adjustable journey	0-80mm
Turning angle of location board	0-55°
Ma.processing tenoning size	70*45*200mm
Dimension	850*740*1280mm
Weight	300kg

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
