• Model NO.：HX
• Raw Material：PPGI
• Usag：Steel Construction
• Roller Material：45#Steel Chrome Plated
• Shaft Material：70mm,75mm(Depend on Different Design)
• Control System：PLC
• Color：Blue
• Thickness：0.3--0.8mm
• Application：Construction Panel
• Main Frame：350h Steel
• Operate Style：Semi
• Lanuage：Chinese,English
• Motor Brand：China Famous Brand
• Function：Color Stone Roof Tile
• Cutting System：Automatic Hydyaulic Cutting
• Profiles：One Profile
• Transport Package：Container
• Specification：5CBM
• Trademark：HX
• Origin：China
• HS Code：84552210
• Production Capacity：5000set,Month

Basic Info.

Model NO. HX Raw Material PPGI Usag Steel Construction Roller Material 45#Steel Chrome Plated Shaft Material 70mm/75mm(Depend on Different Design) Control System PLC Color Blue Thickness 0.3--0.8mm Application Construction Panel Main Frame 350h Steel Operate Style Semi Lanuage Chinese,English Motor Brand China Famous Brand Function Color Stone Roof Tile Cutting System Automatic Hydyaulic Cutting Profiles One Profile Transport Package Container Specification 5CBM Trademark HX Origin China HS Code 84552210 Production Capacity 5000set/Month

Product Description

Features:
1. Types available: electric decoiler,mandrel decoiler
2. Adopts hydraulic expand/loosen and hydraulic driving system
3. Easy to operate
4. Suitable for pre-painted coil,cold rolled coil, and galvanized coil

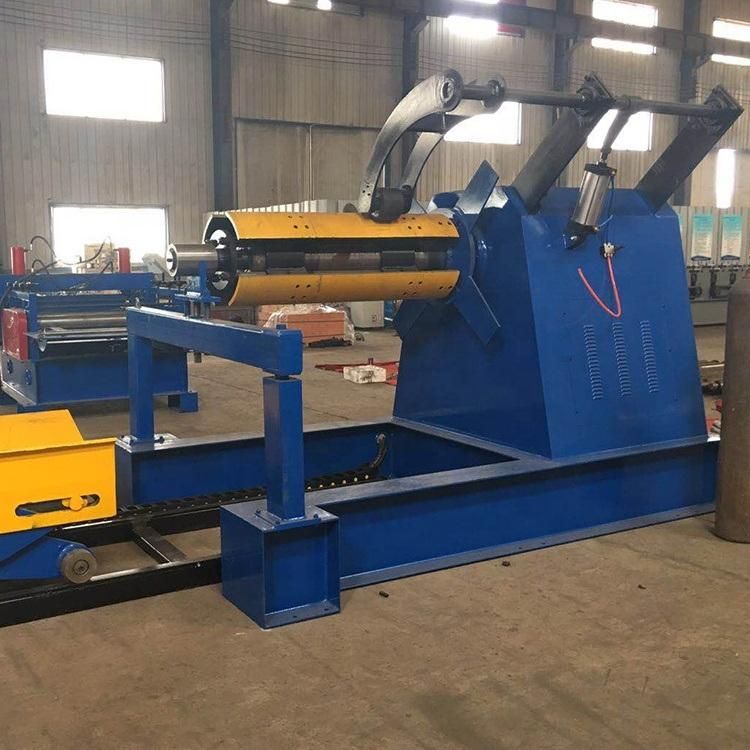

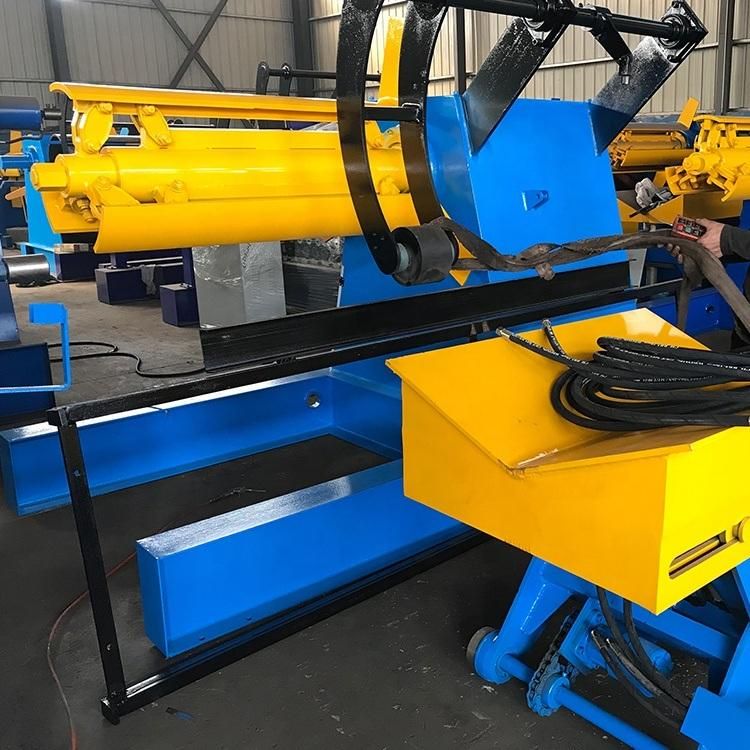

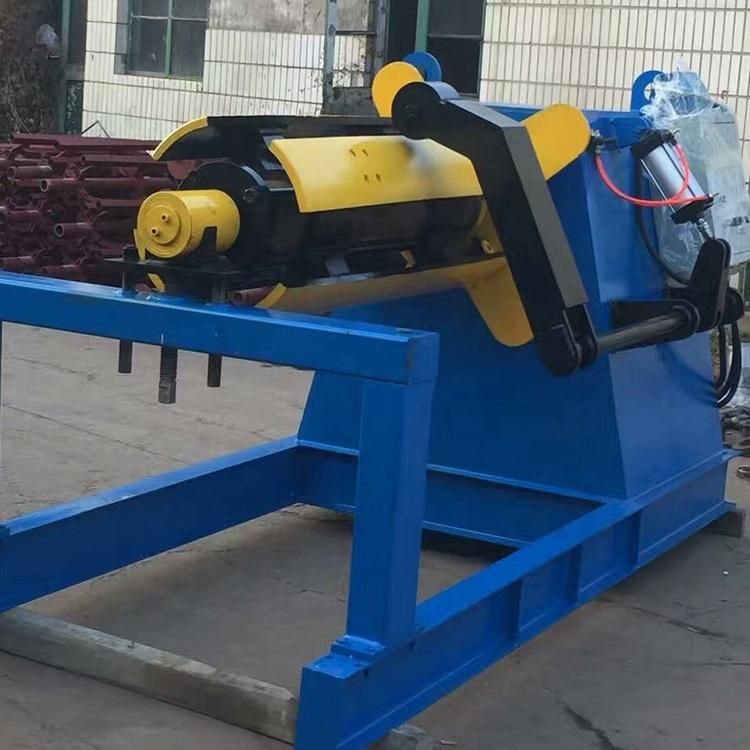

Electric De-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Technical parameters of Electric decoiler for steel coil
1. Main frame : 160mm Channel Steel to weld
2. Dia of shaft : 95mm
3. Power of motor : 3kw
5. Chain : 31.75mm
6. Bearing : 6312
7. Appearance size : (Length)1840mmX(Width)1000mmX(Height)1200mm
8. To support and uncoil the steel coil
9. Tenses the coil by Electric power, it is convenient for the workers to operate
10. The inner coil diameter : φ450-550mm
11. Max outer coil diameter : φ1000mm
12. The max capacity : 7T

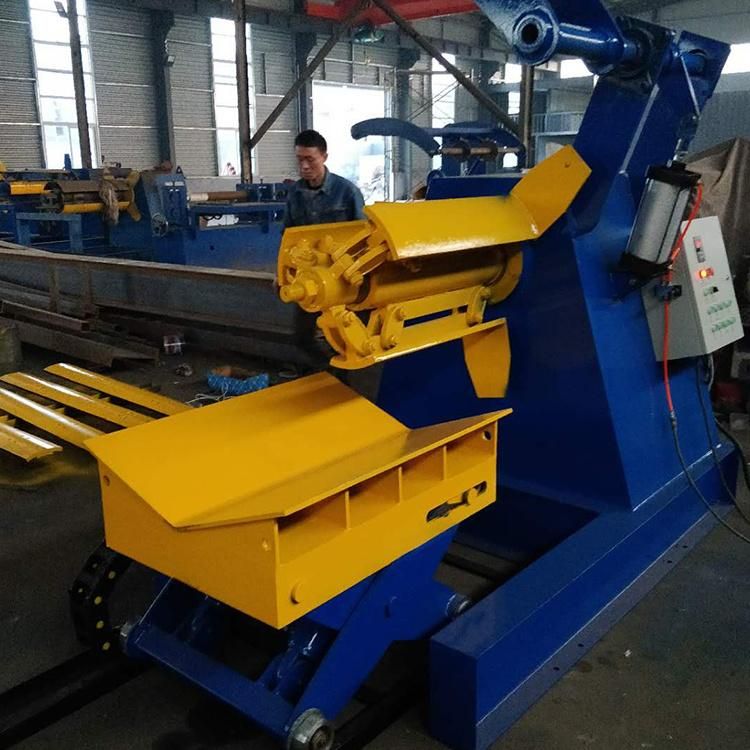

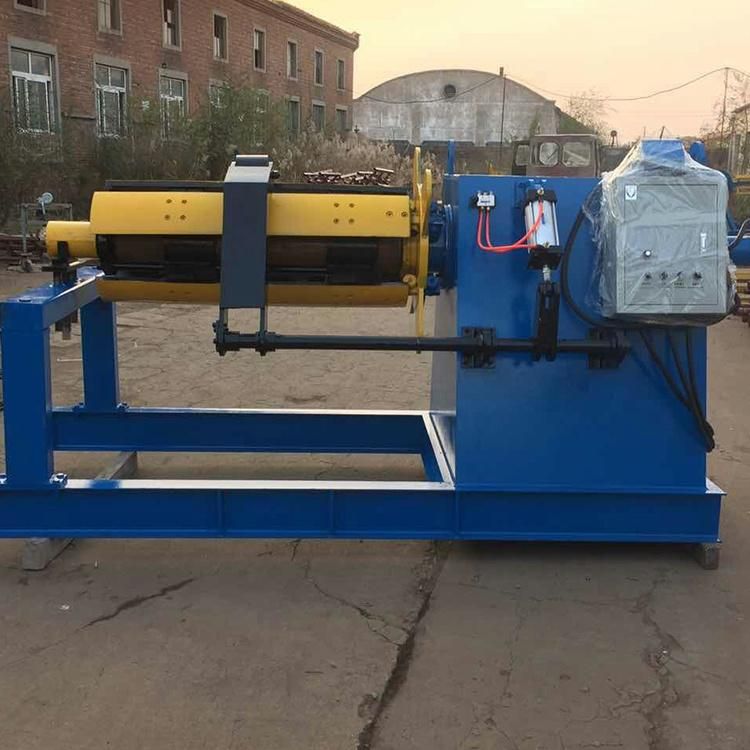

Products showing

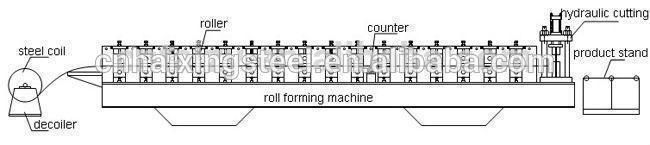

Decoiler-----feeding----- leveling ----- cutting -----roll forming ----- punching ----- output table

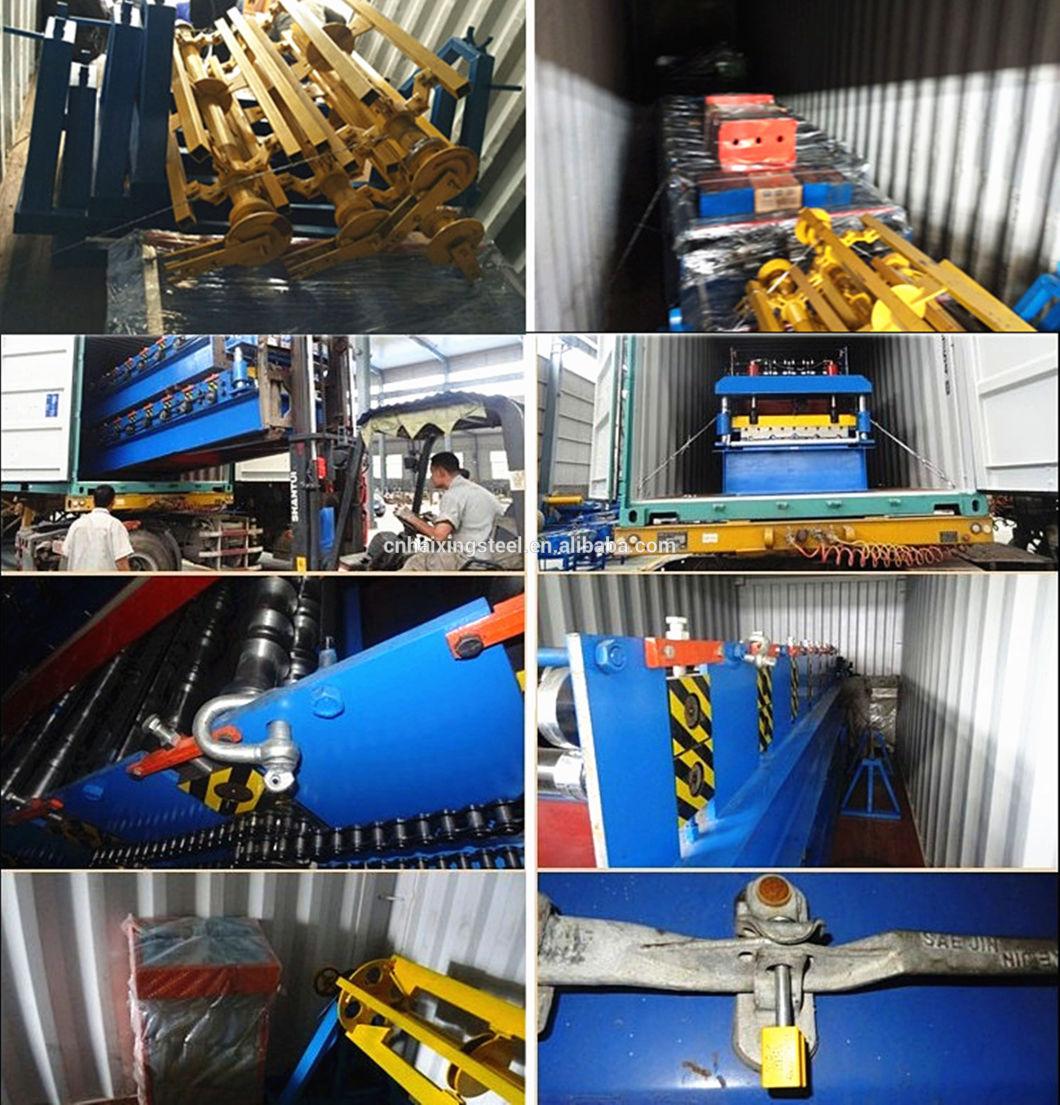

Packaging & Shipping
1. roll forming machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Our Services

1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
   If buyers visit our factory and check the machine, we will teach you how to install and use the    machine and also train your workers/technician face to face.


FAQ

 WHY CHOOSE HAIXING INDUSTRIAL GROUP CO.,LIMITED
1) Q: Do you have after sales support?
    A: Yes, we are happy to give advice and we also have skilled technicians available across the           world.We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
   A: We are up to date with the latest technology and improve our machines accordingly
3)Q: Will you deliver the right goods as ordered? How can I trust you?
   A: Yes, we will. The core of our company culture is honesty and credit
       We are Gold supplier with BV assessment and CE certificate.
4)Q: What can you do if the machine broken?
   A: Our machine's warranty period is 18months,if the broken parts can't repair
       we can send the new parts replace the broken parts free,but you need pay the express cost          yourself if after warranty period ,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
    A: Yes,please tell me the destination port or address we have rich experience in transport.

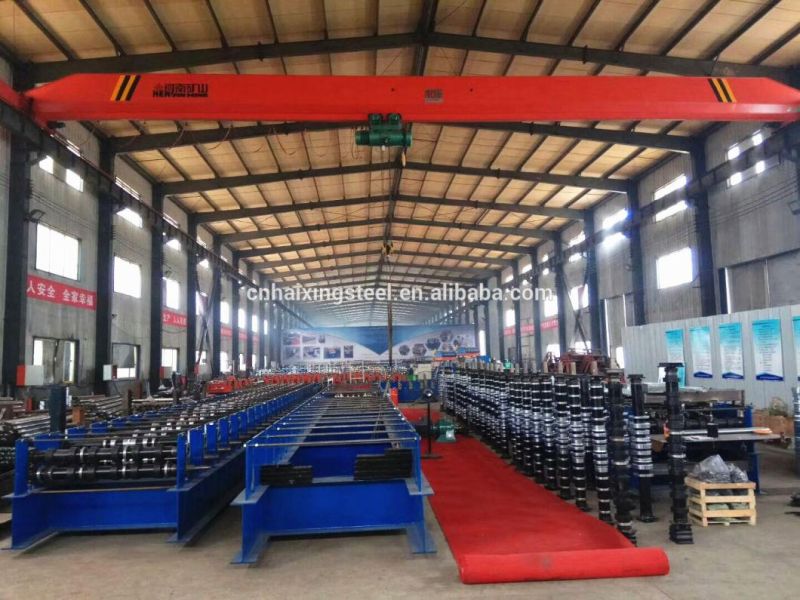

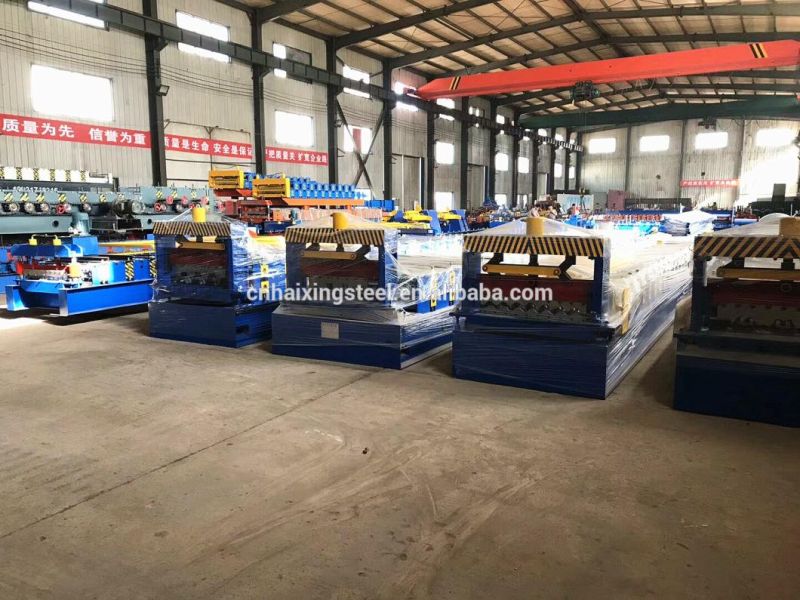

Company Information

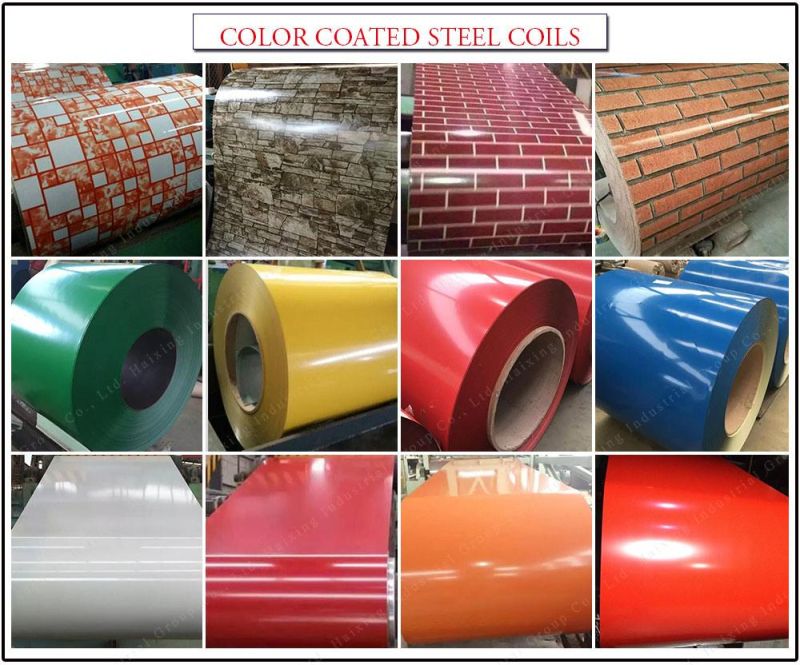

  Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of Aluzinc rib roofing sheet roll forming machine,glazed roof making machine, double roof making machine, floor deck machine,curve roof machine,ridge cap roof forming machine, different sizes roofing sheet, PPGI/ GI,Alu-Zinc steel coils ,Galvanized steel coils, Galvanized steel sheet,Galvalume steel coils/sheet, cold/ hot rolled sheet/coils,professional service and favorable price, satisfied with the quality,welcome to every customers come to visit and buy !
