• Model NO.：request
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude in Contaciner
• Specification：7500*1500*1400mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. request Usage Roof, Wall Transmission Method Hydraulic Pressure Transport Package Nude in Contaciner Specification 7500*1500*1400mm Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 30 Sets/Month

Product Description

Color steel roof/wall tile rolling machine/ roof sheet forming machine

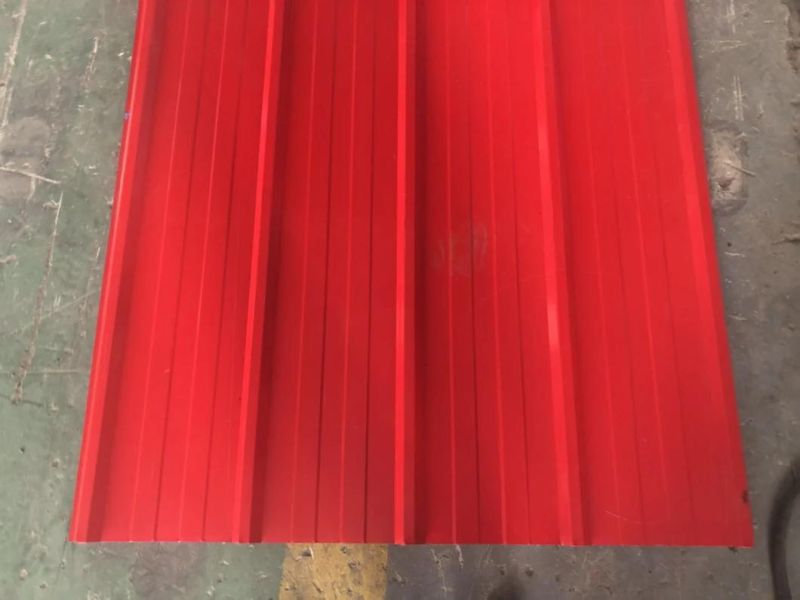

The finished product of High Quality IBR Metal Roof Sheet Panel Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
  The machine include one set manual decoiler, one set main roll former, one set oil pump station, one set PLC control system.

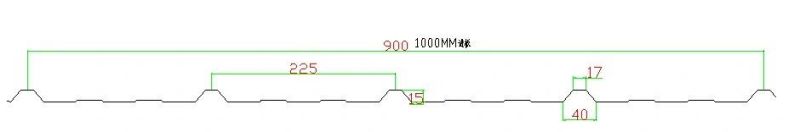

1.Panel drawing according to customers request

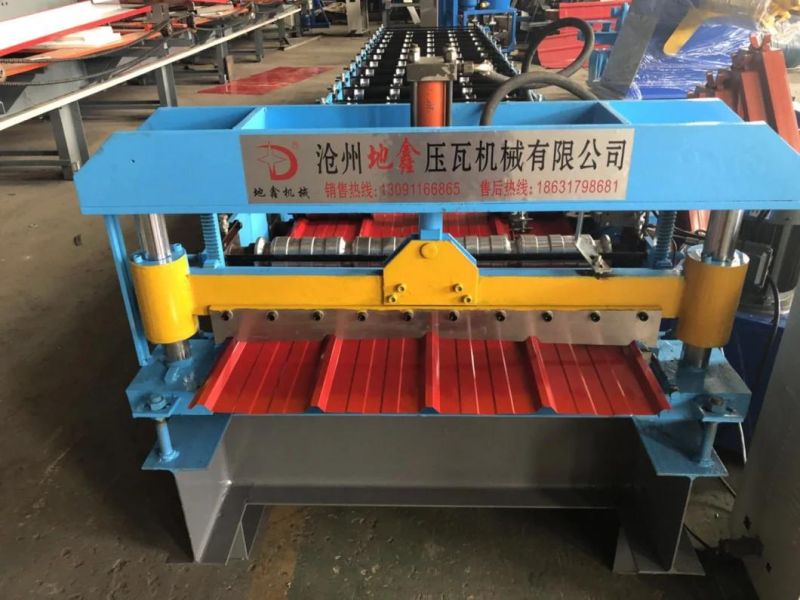

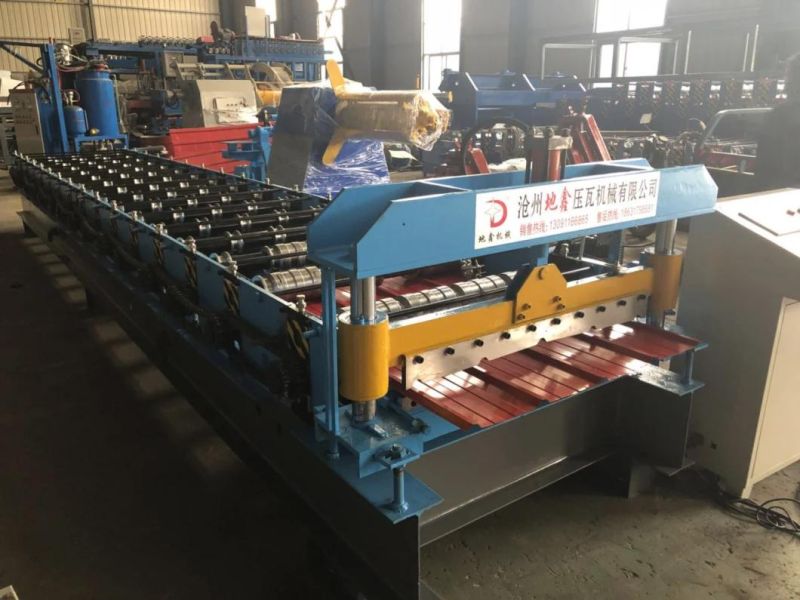

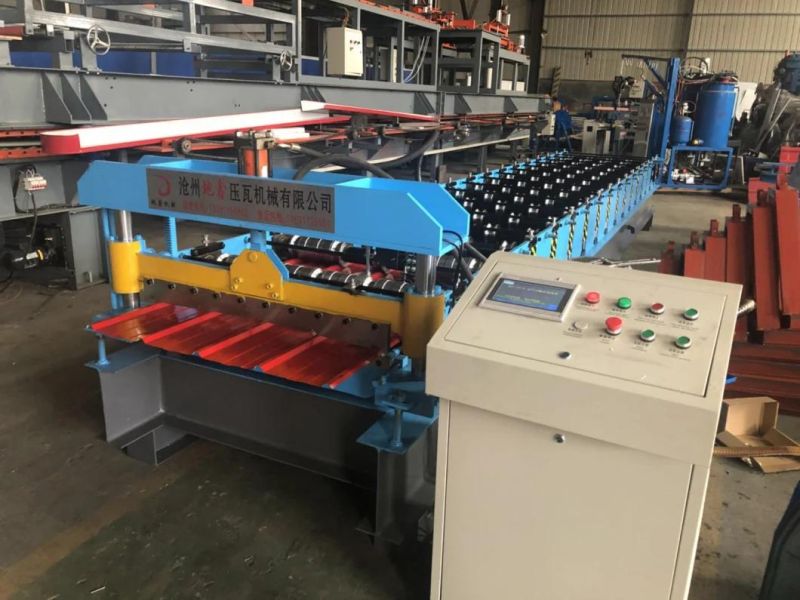

2.some machine pictures for your reference.





3.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000mm As design
4.Effective width	900mm As design
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	16steps
9.Main frame	350H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	(Taiwan brand)Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1600*1300mm
17. Machine weight	About 3 ton
18.Power supply	380v,3phase,50hz or accodring to customer request

3.Packing and delivery

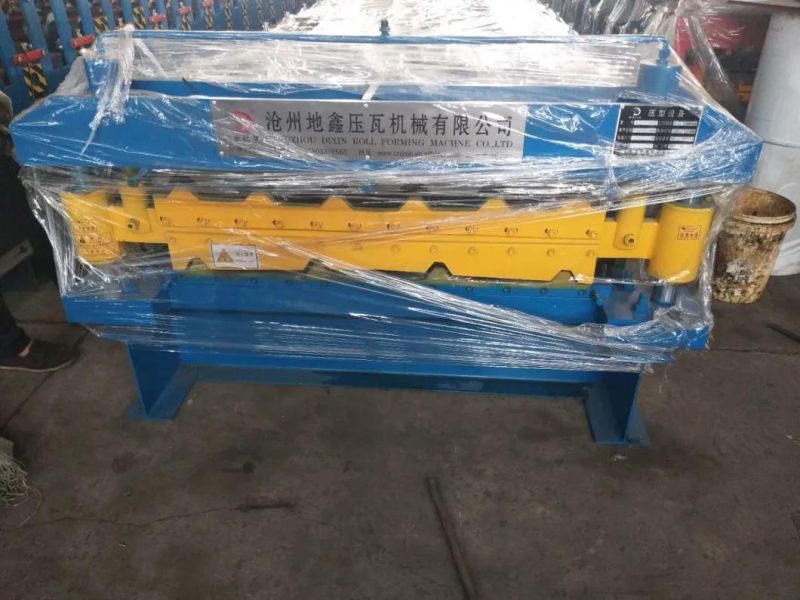

the machine naked in the container or packing as your required.

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery: within 45 working days after receipt of deposit

Guarantee: One year, and we will provide the technical support for the whole life.

4.Our services

Pre-Sales Service

* Local market research and profile confirm .

* Sample testing support.

* View our Factory.

After-Sales Service

* Full assembled shipment , easy installation

* Free trainning .

* Engineers available to service machinery overseas.

FAQ: Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5       hours), then we can pick up you.
