• Model NO.：gutter machine
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude
• Specification：6500*900*1300mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

Machine Sizes7000mm×1300mm×1200mmMain motor power4KW with Cycloidal reducerHydraulic station power4KWHydraulic oil36#Thickness of material0.3-0.6mmDiameter of principal axisΦ70mmMaterial expand widthas design Electric tension380V 3phase 50HZ Material of rollerCGr15Rolling galvanization thickness0.05mmProcessing speed 8-12m/minProcessing precision within1.00mmMaterial of cutting bladeCr12 mould steel with quenched treatment

1.Manual Unicoiler

Usage : It is used to support the steel coil and uncoil  it  .

The Steel coil is expansion by hand

Loading capacity : 3T

Inner diameter : 450-508mm

2.Encoder : One counter gauges length ,pulses ,and decides length

3.Computer Control Cabinet : It adopts Delta/Siemens  PLC to control .The target  piece's length is adjustable and digit of it can be adjusted ,Computed mode has two modes :automatic and manual one .The system is easy to operate and use .

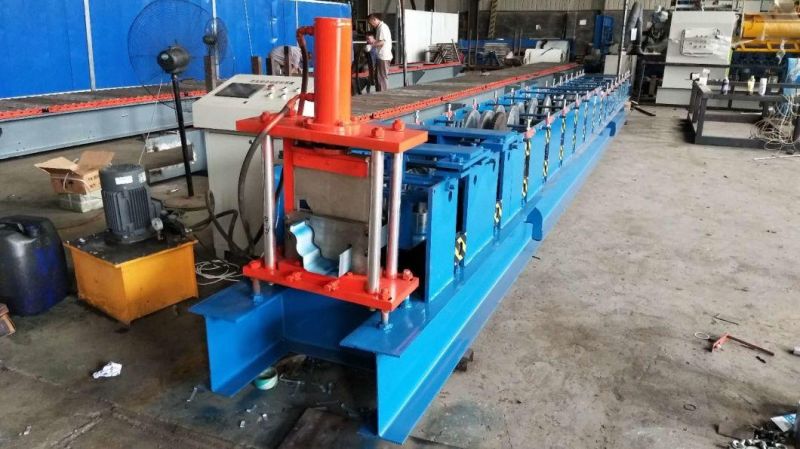

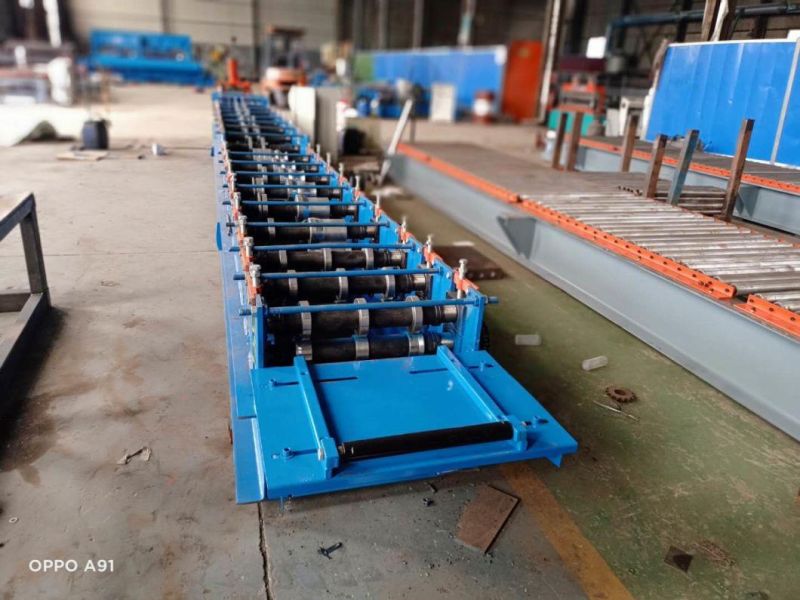

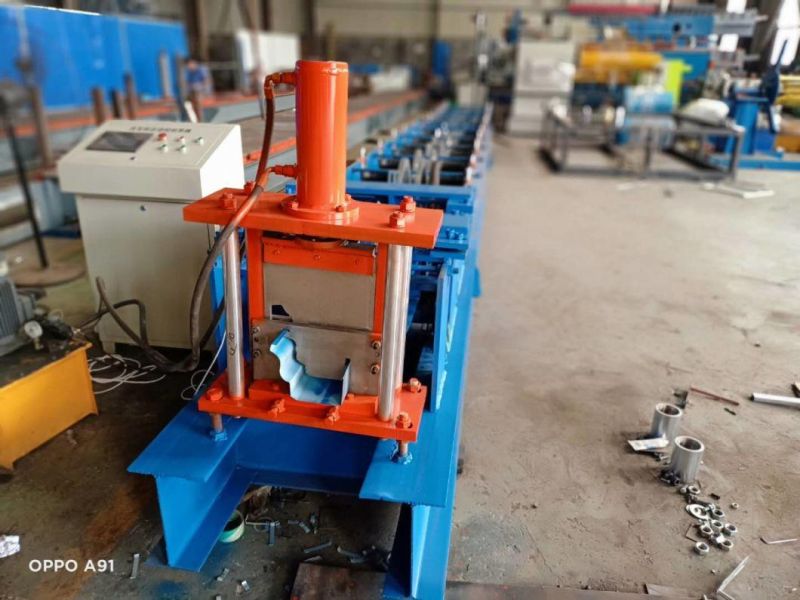

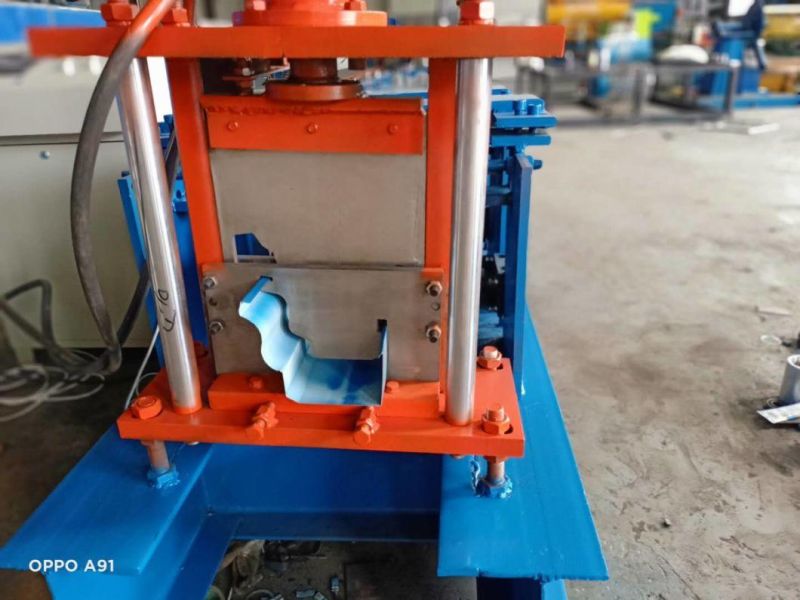

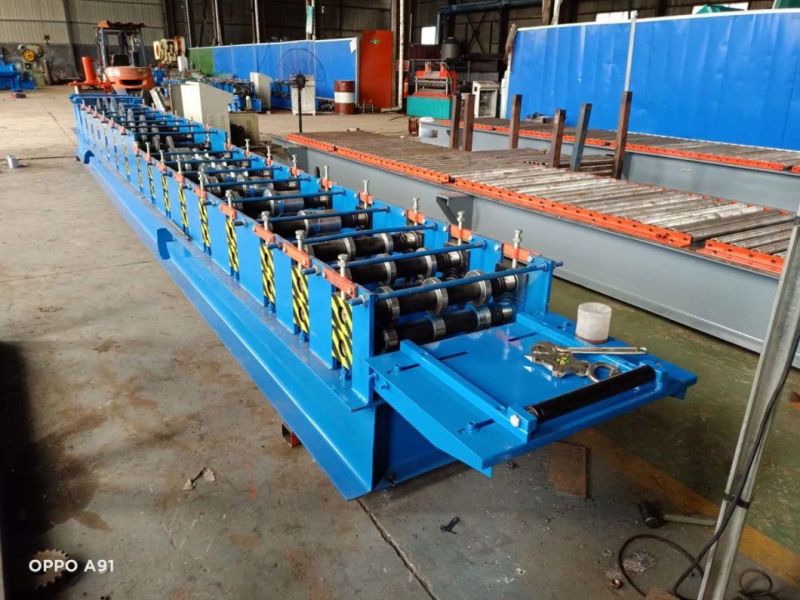

2.some machine pictures




3.Company details

Cangzhou Dixin Roll Forming Machine Co.LTD

. Professional teamin this field for TEN years, our technicians designed and produced thefirst sandwich panel production line(which is a much complex equipment in tile making machinery field) in this city, now we got national patents for our innovations. and customers who want his machines special with breakthroughs always come to us.2. Low pricewe ask no additional cost for our innovations. same prices to buy equipments with new technology and innovations.3. Fully automatic, easy operationPLC controled to achieve accuracy and efficiency. Just to input the length of the panel and the pieces you need, you can sit by drinking coffee and making profit.4. OEM / ODMOther logo or design is acceptable.5. warranty,whole life service.

one year warranty, during which any parts damaged due to quality problem will be changed for free.

whole life technical support is provided.

4.Packing and shipping

1. Standard pack: main machine is naked, and the computer control system is packed by wooden box.

2. or Packing according to customers' needs

3. We have professional technician for loading Guaranteed the goods load into container without any damage.

4. Transportation : Machines need one 20 or 40 feet container.


Customer visit

These are two clients from Zimbabwe,When they came to our factory to inspect the goods, their company was quite satisfied with the machines in our factory,And these two customers recommended that other customers also ordered a batch of machines from our factory.

Our company has the most professional technical team and more than 10 years of rich manufacturing experience,Customer satisfaction is our development inexhaustible power, always adhere to the quality first, integrity first!
