• Model NO.：DX840
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude in Container
• Specification：6500*1500*1300mm
• Trademark：dixin
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

1

Suitable material

Aluminium coil/galvanized steel/color steel coil

2

Width of the plate

1000mm

3

Thickness of the plate

0.3-0.8mm

4

Production speed

10-15m/min

5

Roller material

45# steel

6

Diameter of active shafts

75mm

7

Shafts steps

13 rows

8

Thickness of wall plate

16mm

9

Control system

PLC control system (Delta)

10

Frame

300H steel

11

Main motor power

4 kw

12

Cutting power

4 kw

13

Cutting material

Cr12

14

Weight

About 2.5T

15

Size of machine

About 6.5*1.35*1.2m

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

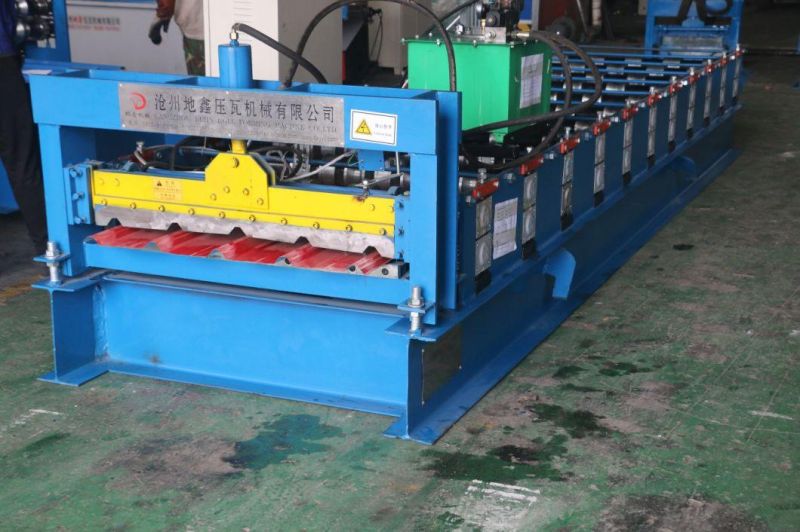

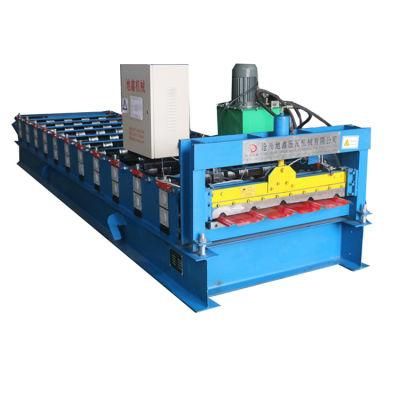

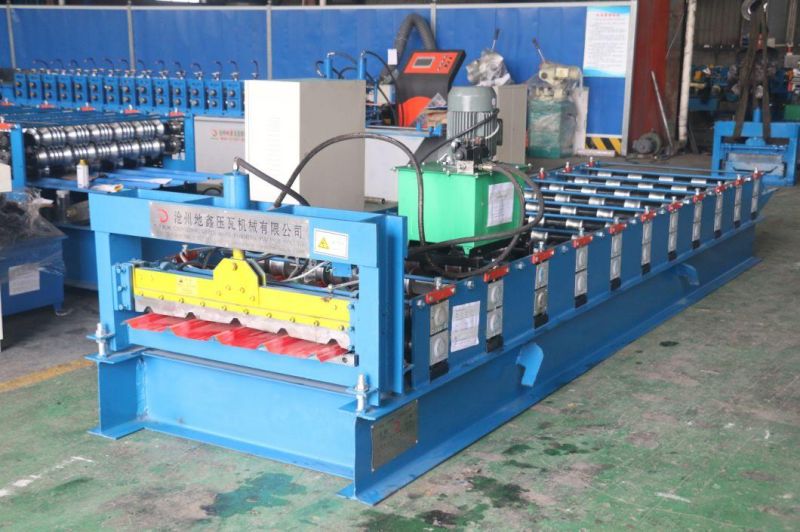

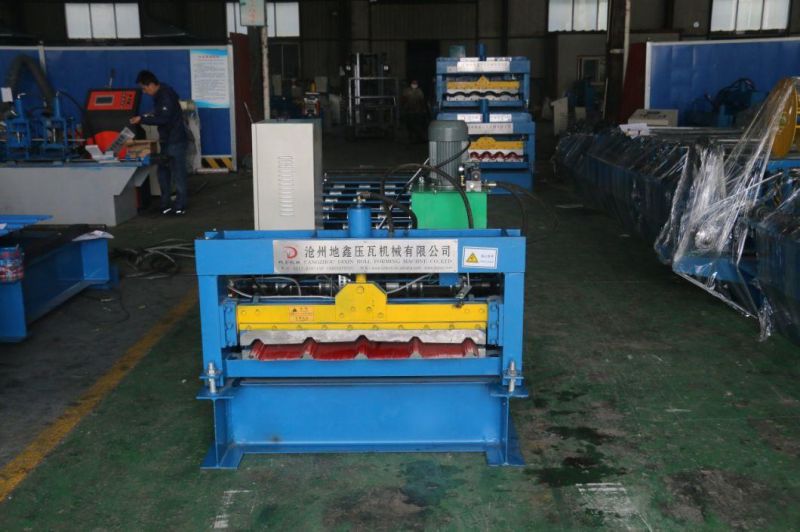

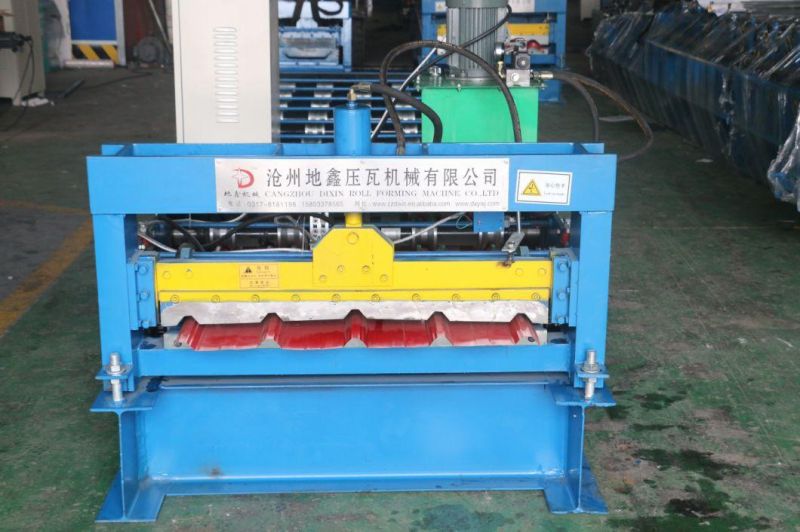

2.Some machine pictures for your reference.











3.Company advantage

• We have sold more than 4000 sets roll forming machines to many countries around the world.
• We have hundreds of models about all kinds of roll forming machine for your reference, you could't worry if you don't have a profile drawing.We can recommond you some classical models that is common in your country.
• When designing the machine, our considerate service will estimate and avoid the problem that may happen.
• One set machine can provide many solutions with different price level.But they are all the cost-effective.
• We attach importance to many details. Every machine part quality is higher than our competitors in same price level.

4.Packing and shipping details
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.


5.Customers inspection
Many customers wait until their machines are finished then come to our factory To check their machines.When they are very satisfied.They will order the machine again,because We hope to establish long-term business relationship with our customers.Therefore, we have always attached great importance to the quality of machinery and good after-sales service.

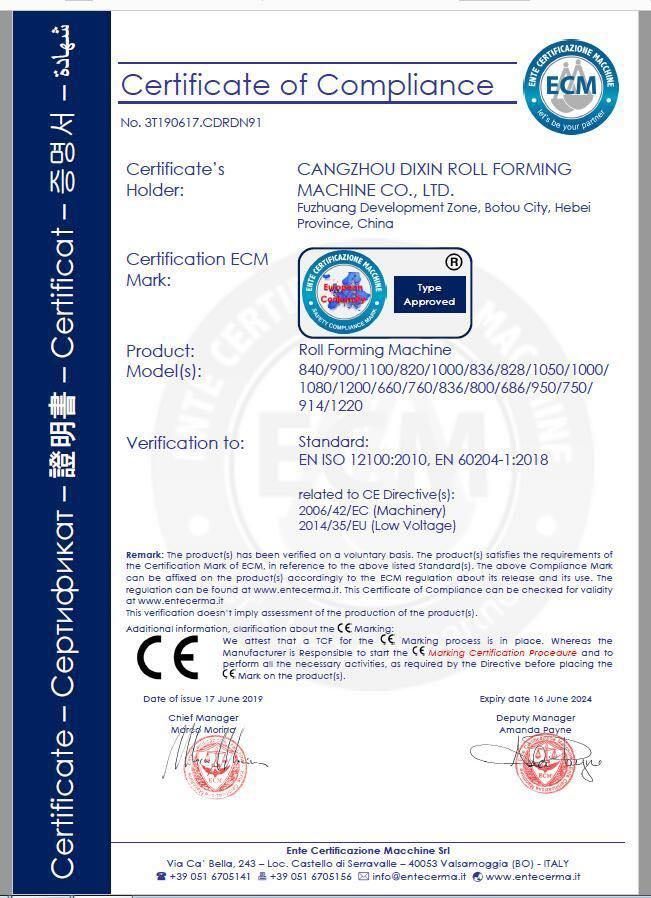

6.CE CERTIFICATE


7.FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

    2.We can send the technicians to the buyer`s factory for the installation and trainning .

3.What about your warrenty?

A: Within the One-YEARS period, we could supply you the replacement parts for free .

If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
