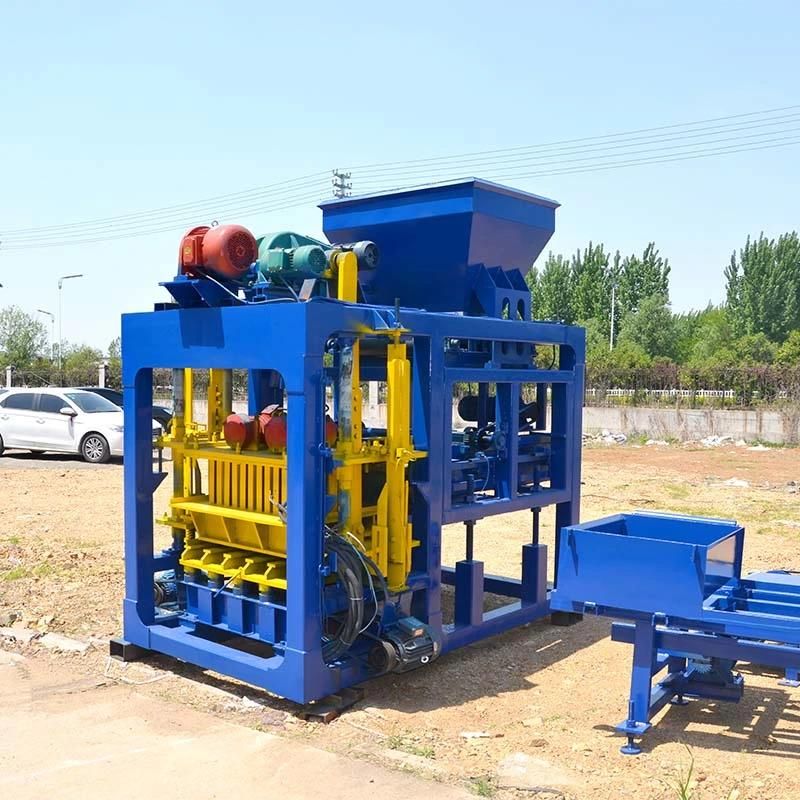

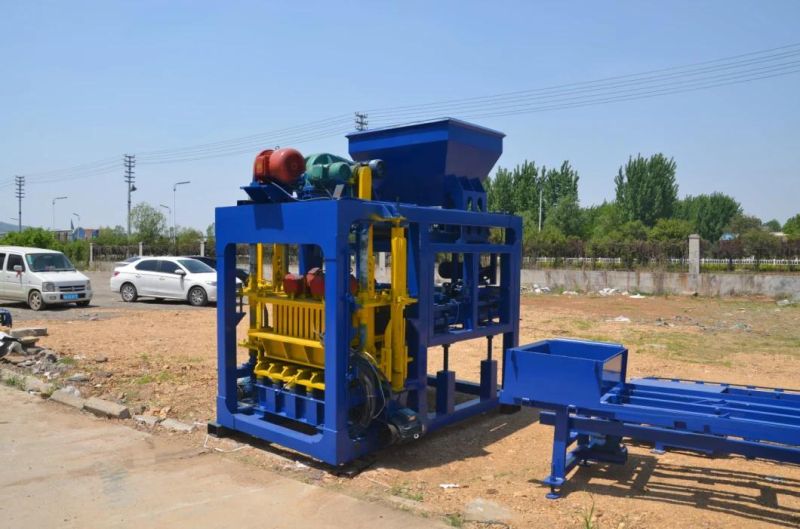

Qtj4-25 Concrete Block Making Machine Price in Pakistan
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Qtj4-25 Concrete Block Making Machine Price in Pak
- Pallet Size：580X550mm
Base Info
- Model NO.：QTJ4-25
- Color：Client Requirement
- Vibration Frequency：2800-4500 ( R,Min)
- Weight：3t
- Block Type：Hollow Block,Solid Block,Paver,Curbstones,etc
- Molding Cycle：15s
- Vibration Type：Platform Vibration
- Raw Material：Cement,Sand,etc
- Power：16.58kw
- Transport Package：Standard Export Package
- Specification：7100x1600x2610mm
- Trademark：SHIYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：5000set,Year
Description
Technical Parameters
Overall Dimension
6400*1500*2700mm
Main Vibration Form
Platform Vibration
Vibration Frequency
2800~4500 ( r/min)
Pallet Size
850*550mm
Molding cycle
25(s)
Overall Power
Vibration Force
60KN
Total Mass
3T
Demolding method
Mechnical
General water consumption
6T/Day
Factory Area
500m2
Applied Products
Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone,
colored pavers ,etc.
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw
material , etc.
