M7mi hydraulic Interlocking Hydraform Brick Making Machine Price Mobile Brick Machine
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO, SGS,Co,Coc,Pvoc,Soncap
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydroforming
- Power Source：Diesel Engine
- Pressure：16MPa
Base Info
- Model NO.：M7MI
- Machine Type：Interlock Block Making Machine
- Diesel Engine：12HP
- Shaping Cycle：20s
- Brick Raw Material：Soil, Cement, Clay
- Brand Name：Cyun Brick Machine
- Transport Package：Plywood Box with Iron Angle
- Origin：China
- HS Code：8474802000
- Production Capacity：20sets , Month
Description
| Power | 9.3kw | |
| 12HP | ||
| Pressure | 16Mpa | |
| Total weight | 1200 KGS | |
Production step
1.Start diesel
2.Operate the valve of material hopper
3.Lifting material hopper
4.Drop material into the mixer
5.Mixture
6.Materia feeding
7.Press
8.Brick moulding
9.Take brick after finishing
Technical parameters of m7mi diesel engine clay interlock brick making machine / luhu block machine / moving block machine:
| Dimension | 2800*1520*1530(mm) |
| Production | 1500~2200 pcs (230~220~150mm) / 8 h |
| Hyfraulic pressure | 12~14 Mpa |
| Molding way | Hydrostatic |
| Fuel tank capacity | 80L |
| Raw material | Clay ,soil ,cement ,sand,concrete or other construction dregs |

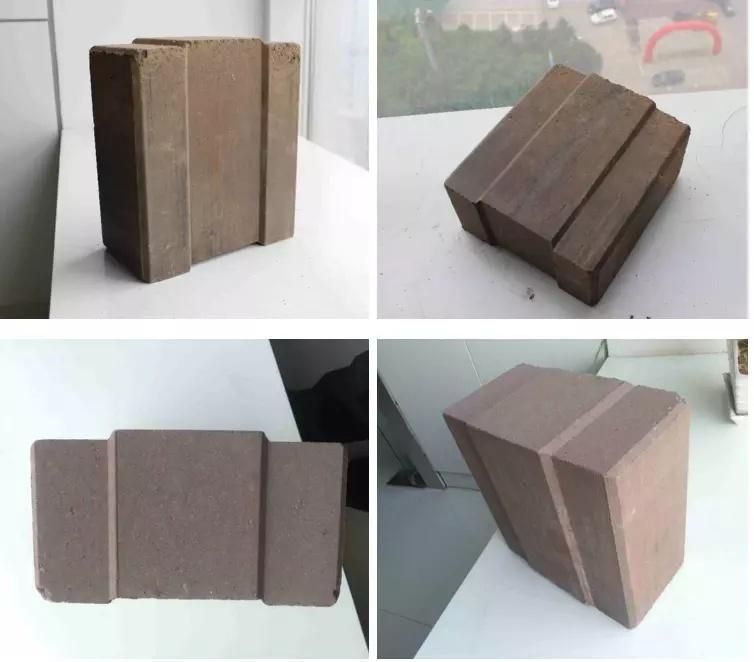

| Products | interlocking drystacking block,coping block |
| Brick size | 230~290mm(L)*200~220mm(W)*100~115mm(H) |
1. Our brick machine can produce all kinds of interlocking blocks just by changing its mold easily.
2. One host machine can be with one set free mold as present.The extra mold need to be payed for its cost.
3. All of the brick molds can be customized as your request. These pictures are for reference only,
Please tell us the size and shape of the mold that you want,we can draw it for you to confirm.
