Steel Metal Structure C Z Shape Cold Roll Forming Purling Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Warranty：2 Years
  • Certification：CE
  • Customized：Customized
  • Condition：New
  • Control Type：PLC
  • Automatic Grade：Automatic

Base Info

  • Model NO.：C purlin machine
  • Name：C Shaped Roll Forming Machine
  • Suitable Raw Material：1.0-3.0mm
  • Under Frame：350h
  • Sidewall：18mm
  • Connect Bar：25mm, Zinc Plated
  • Shaft：90mm, Solid, Finish Turning,
  • Forming Stations：13
  • PLC：Delta, Taiwan
  • Main Motor：15kw
  • Hydraulic Pump Station：5.5 Kw
  • Cutting Blade：Cr12MOV, Quenching 58-62°, Double Oil Cylinder
  • Transport Package：Nude
  • Trademark：DIXIN
  • Origin：China
  • HS Code：84552210
  • Production Capacity：100 Set,Year

Description

1Profile SizeDX 100-3002Suitable Raw Material 1.0-3.0mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request3Under Frame400 H-beam 4Sidewall 18mm5Connect Bar25mm, zinc plated6RollerHigh grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway7Shaft90mm, solid, finish turning, cylindrical grinding, with keyway8Forming Stations 139PLC DELTA, TAIWAN10Main Motor 15 kw, Lichao, Shanghai, with reducer11Hydraulic Pump station5.5 kw12Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder13Oil paintNational standard grey14Computer screenDELTA, TAIWAN15Chain 1inch

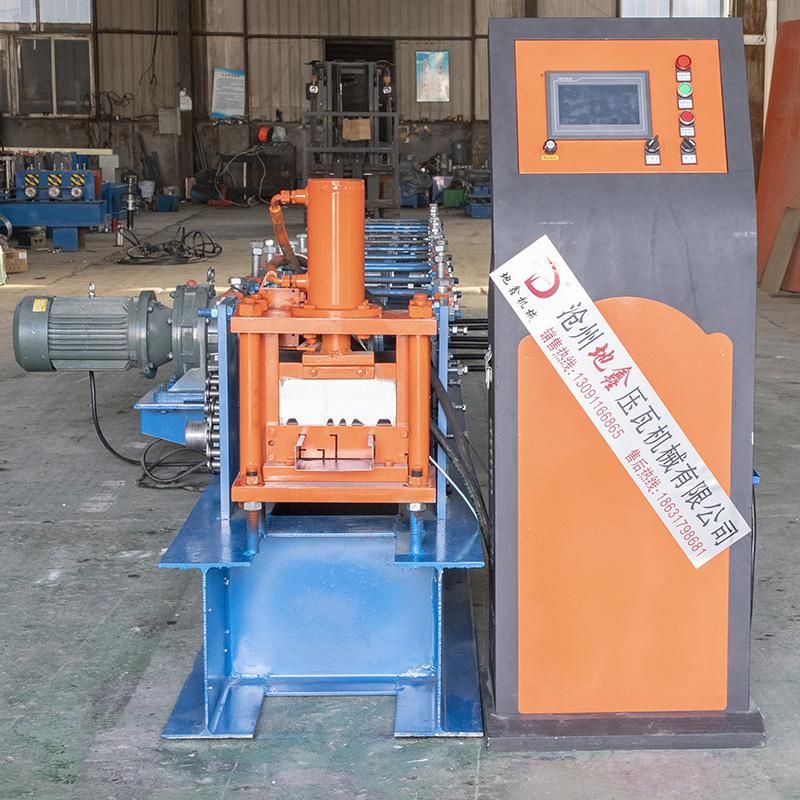

Steel Metal Structure C Z Shape Cold Roll Forming Purling Machine

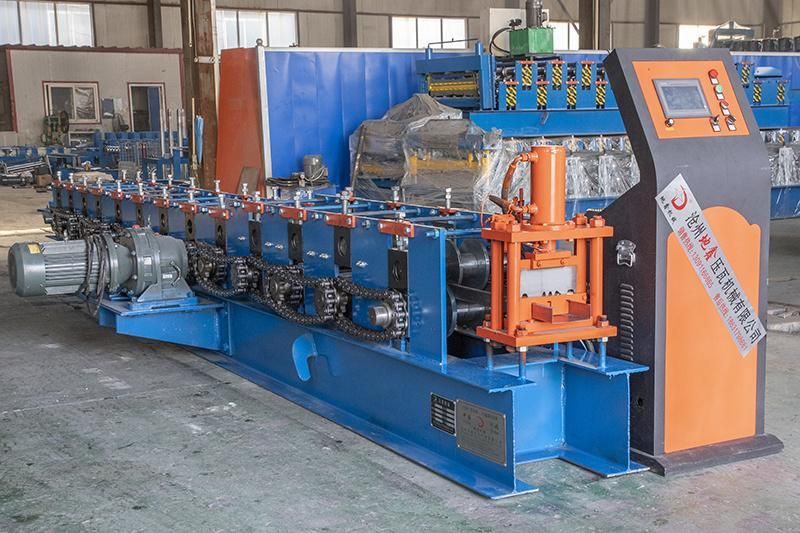

Steel Metal Structure C Z Shape Cold Roll Forming Purling Machine

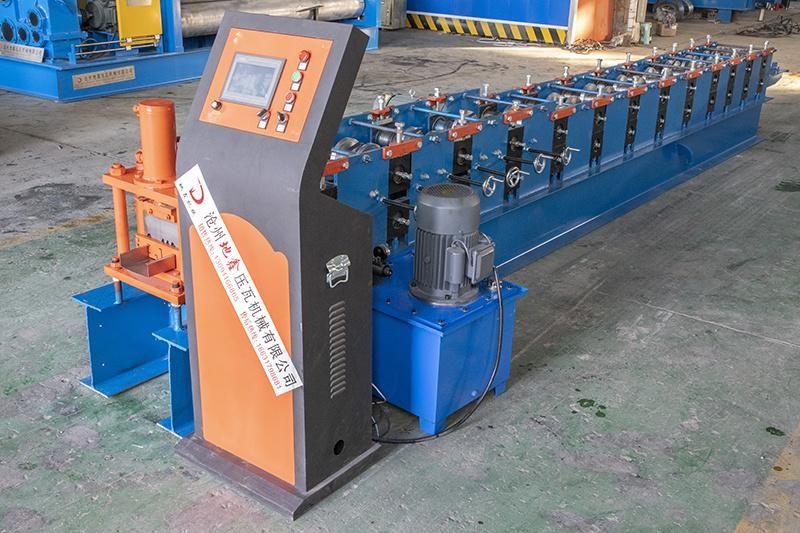

Steel Metal Structure C Z Shape Cold Roll Forming Purling Machine
Steel Metal Structure C Z Shape Cold Roll Forming Purling Machine
 ItemNameQty1Manual Decoiler12Feeding platform with hand cutting system13Main forming system14Hydraulic cutting system15Hydraulic pump station16Electrical motor17PLC control system18Touch screen operation19Finished products receive table110Safety shield(optional)111Hydraulic decoiler(optional)112Automatic stacker(optional)1
