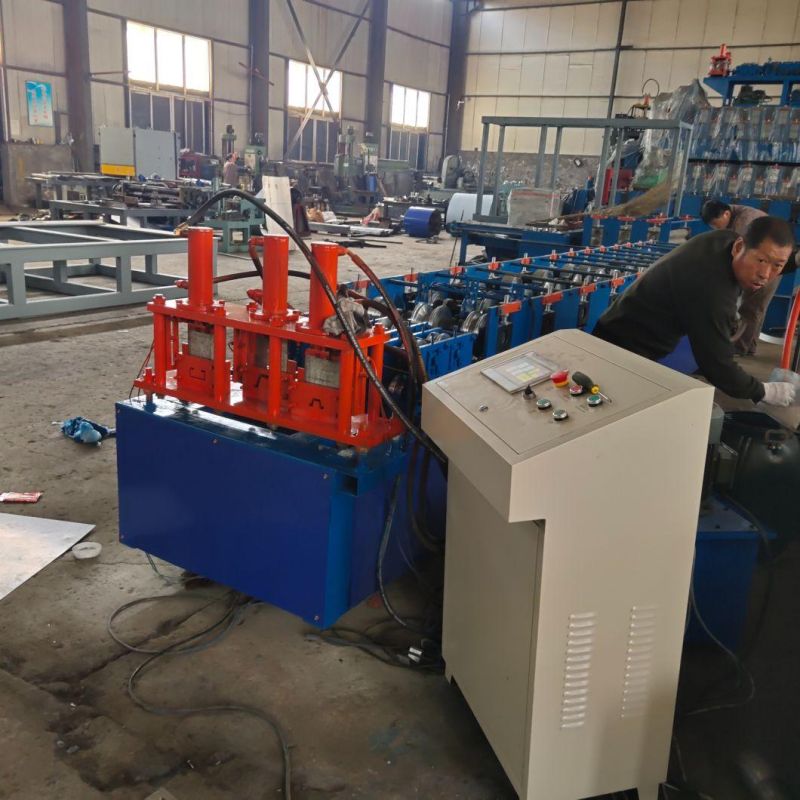

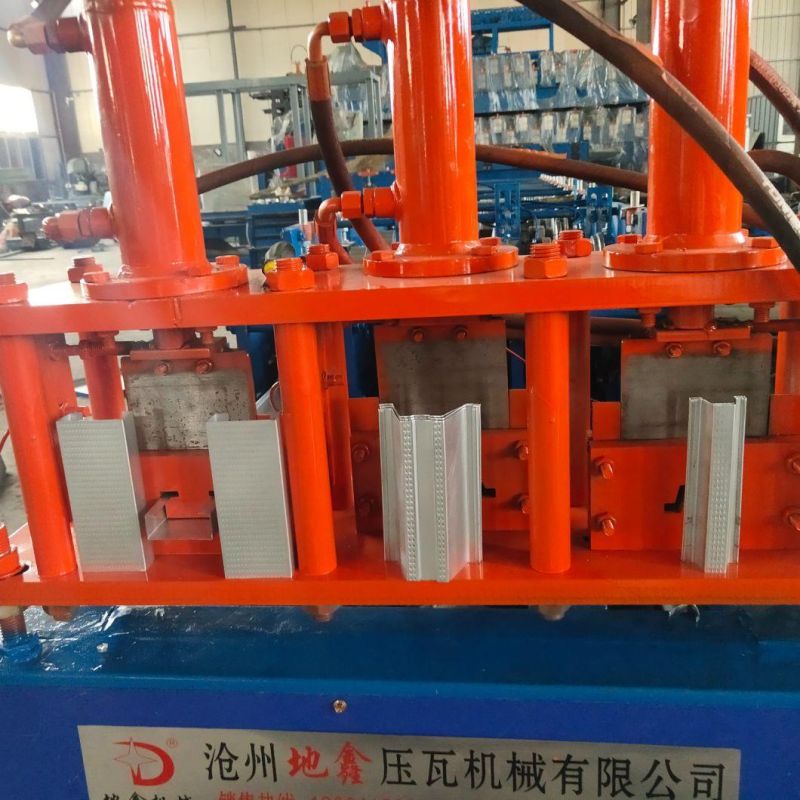

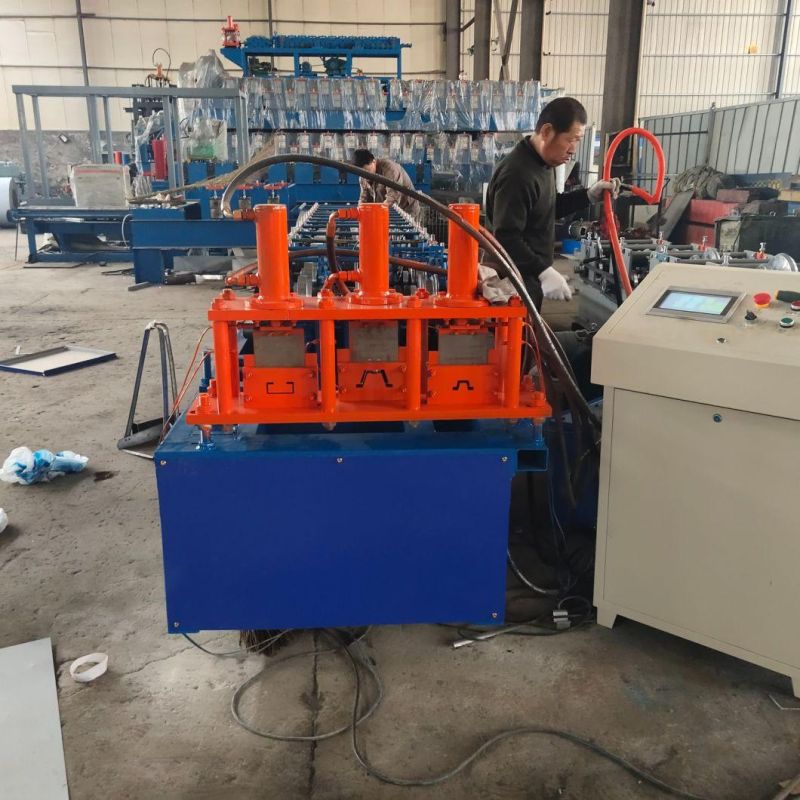

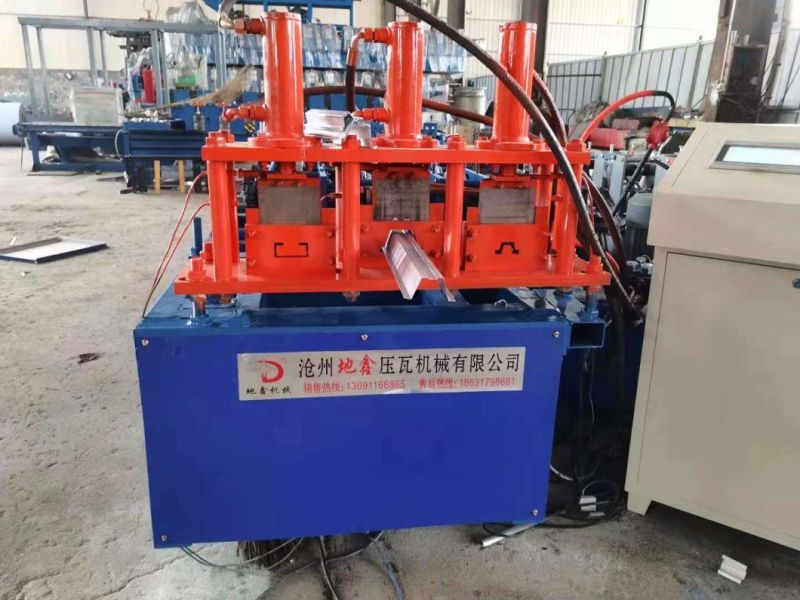

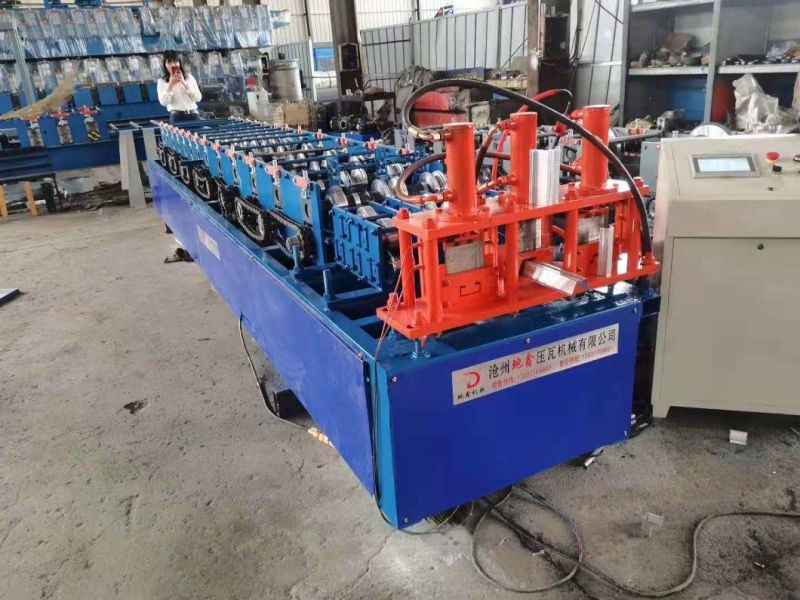

Three in One Steel Frame C Profile Making Light Keel Stud Cold Rolling Forming Machine for Zimbabwe
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty：1 Years
- Certification：CE, ISO9001
Base Info
- Model NO.：corner forming machine
- Customized：Customized
- Condition：New
- Control Type：Artificial
- Automatic Grade：Automatic
- Drive：Hydraulic
- Method：Corner Forming Machine
- Color：2 Years
- Effective：Easy Operation
- Material Thickness：0.3-0.8mm
- Main Motor Power：5.5 Kw
- Pump Power：4 Kw
- Shaft Diameter：65mm
- Type：Color Steel
- Processing：Steel
- Product：Steel
- Transport Package：Main Body Nude in Container
- Specification：CE
- Trademark：DIXIN
- Origin：Cangzhou City, Hebei Province, China
- HS Code：84552210
- Production Capacity：20sets,Per Month
Description
Roofing Sheets Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine)No. Item Specifications 1 Coil Width according to drawings 2 Diameter of shaft 55mm 3 Forming Speed 8-12meters/min 4 Middle plate 16mm 5 Material of shaft 45#steel with tempering 6 forming thickness 0.2mm-0.6mm 7 material of rollers 45#steel 8 Cutting type hydraulic -cutting 9 Main power 4kw+4kw 10 Main frame 300H steel 11 Control system PLC 12 Brand of electrical parts Delta 13 Manual decoiler 5 tons 14 Power 3 Phase,380 Voltage,50Hz 15 Dimensions(L*W*H) About 6.5*1.2*1.2M 16 Weight about 4 tons
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
4. Warranty
24 months, and lifelong technical support service
5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
6. Package
Standard export package, water-proof package, covered with plastic film
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
4. Warranty
24 months, and lifelong technical support service
5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
6. Package
Standard export package, water-proof package, covered with plastic film
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
