Steel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Certification：CE
  • Condition：New

Base Info

  • Model NO.：roofing sheet forming machine
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Hydraulic Pressure
  • Name：Roofing Sheet Forming Machine
  • Use：Roof, Roof and Wall Panel
  • Dimension(L*W*H)：6.5*1.5*1.3m
  • Power(W)：3+4kw
  • Weight：About 3 Tons
  • Voltage：380V or According to Customer Request
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Machine Color：Green and Yellow
  • Yield Strength：235 MPa
  • Feeding Thickness：0.3-0.8 mm for Common Use
  • Transport Package：Package of Metal Roofing Roll Forming Machine Wate
  • Specification：CE ISO
  • Trademark：DIXIN
  • Origin：Botou Hebei China
  • HS Code：84552210
  • Production Capacity：20 Set Per Year

Description

1Name of production machine840 Trapezoidal roof sheet making machine2Profile of trapezoidal 840840-210-25 sheet as above shows3ComponentsPassive uncoiler and small accessaries as below pictures4Yield strength235 MPa5Feeding materialmetal steel sheet/color steel/galvanized sheet6Feeding thickness0.3-0.8 mm for common use7Motor power5.5KW for 840 4KW for 10508Hydraulic pump4 KW9Shaft70 mm,high grade NO. 45 carbon steel10Roller0.05mm Chromn and  high grade NO. 45 carbon steel11Control systemPLC automatic control system12Cutting blade

Cr12 mould steel with quenched treatment

13Forming steps 11 rows or as your requirement14Type of formingSingle station with chain transmission15Type of cuttingHydraulic mould cutting

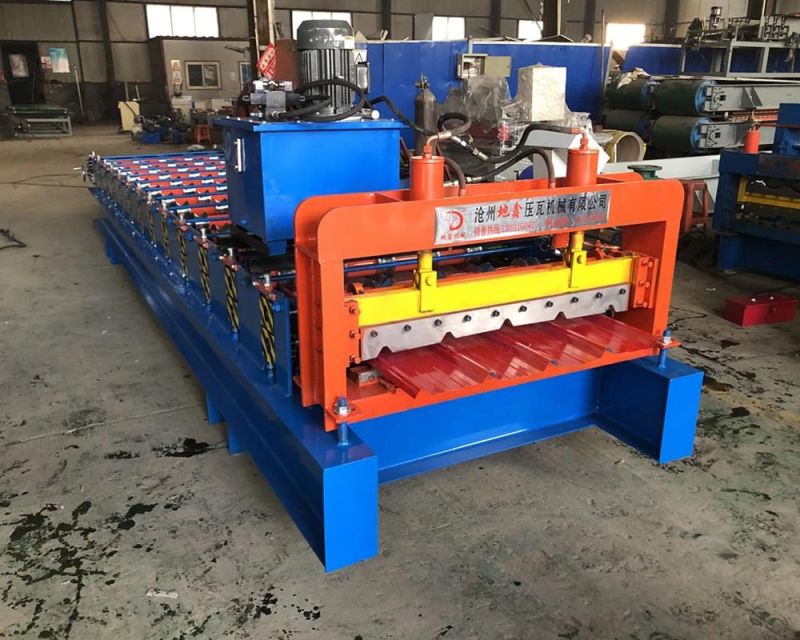

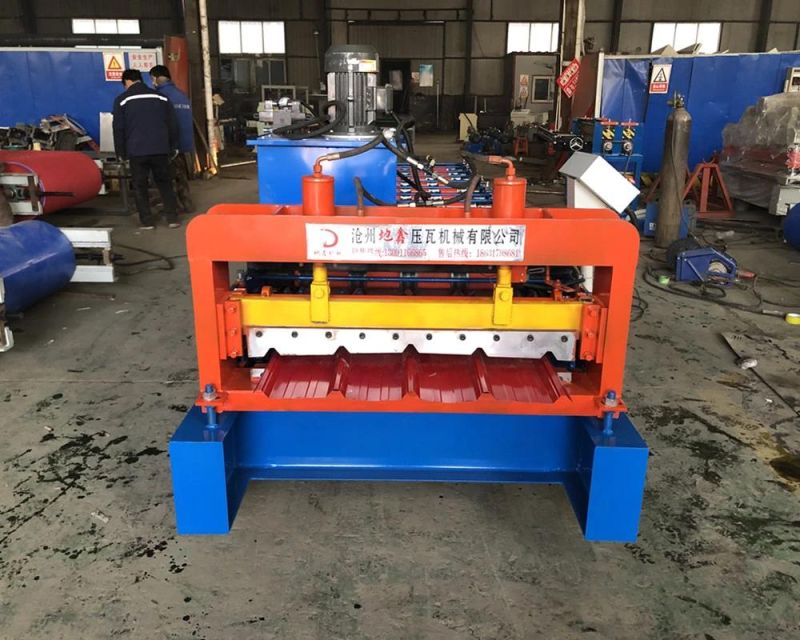

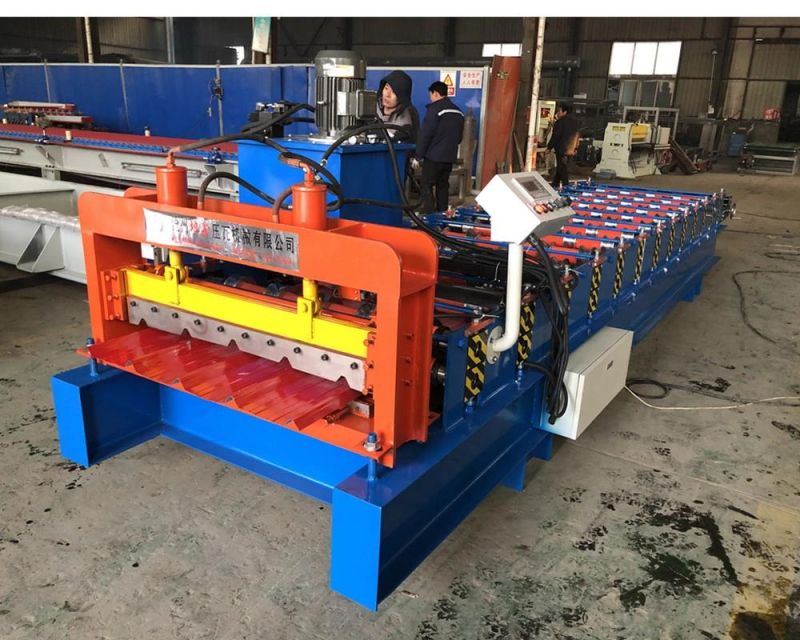

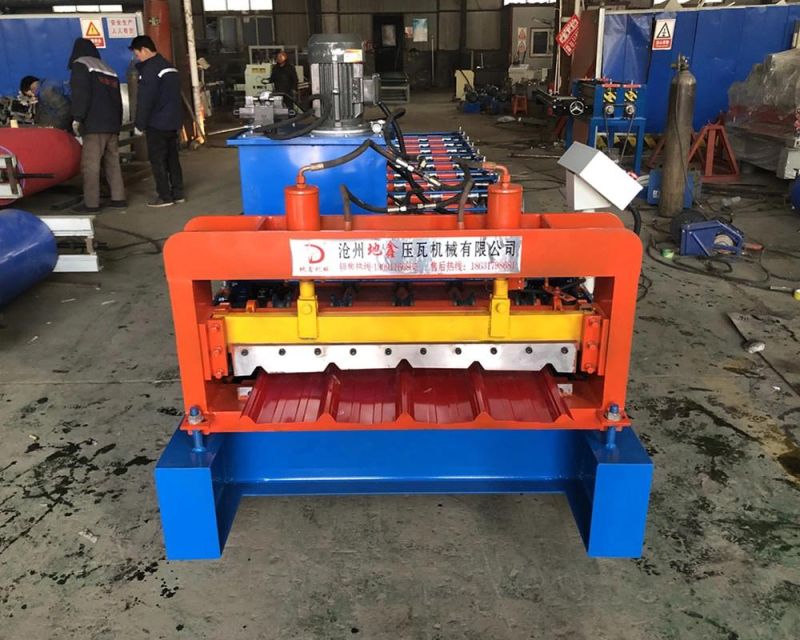

Some machine photos for your reference

Steel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking Machine
Steel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking MachineSteel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking MachineSteel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking MachineSteel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking Machine

Packing and shipping

 1. One 40ft container for loading one set machine with manual decoiler;
 2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
 3. Spare parts and some small parts packed in plastic too
Steel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking MachineSteel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking MachineSteel Trapezoidal Sheet Tile Making Roll Forming Machine/5 Rib Metal Ibr Roof Sheetmaking Machine

Our factory Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.

    The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets.

Welcome to visit our factory!

We know well the requirements for the customers from different countries and have an outstanding export team who will take care of your requests. Our experts and skilled workers complete the work with great precision.
