• Product Name：Glazed Tile Plate Rolling Machine
• Raw Material：PPGI ,Gl, Aluminum Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Roll Forming Station：16 Stations
• Machine Weight：About 5 Tons
• Drive Type：Chain Transmission
• Shearing Type：Hydraulic
• PLC Operation：Touching Screen
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

ItemParameters According to buyer's requirementsRaw materialTypePPGI, PI, CR , Steel Coil, or equivalentThickness(mm)Tile profile: 0.3-0.6mm
Roofing panel profile: 0.3-0.6mmWidth of the feeding material

According to buyer's final confirmed profile drawing

Yield strength(Mpa)Q195, Q235Forming speed(m/min)12-15 (not contain cutting)Roller material45 # sheet with chrome coatedRoller driven typeChain transmissionControl SystemPLC  (Panasonic) as list in the noteOperation typeTouch screen + buttonHydraulic system pressure( MPa )12Hydraulic motor power ( KW )4Main motor power(KW)7.5Roller StationsTile profile: 11 stations
Roofing pane profile: 18 stationsShaft Material and DIA76mm, material is 45 #  forge steelRoller Material45# forge steel, coated with chrome Electric Source380V, 50HZ,3 phase
According to customer's requireMaterial Of CuttingCr12Mov quenching 58-62ºCDimension(L*W*H)Forming Section about 10m*1.6m*1.6m



 4. Machine List of Glazed Tile Plate Rolling Shutter Sheet Metal Roll Forming Machine:

Hydraulic decoiler ( 5 Tons )1 unitMain Roll Forming Machine1 unitCutting Device1 unitElectrical System with PLC Control1 unitHydraulic station2 unitOut table2 unit

5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

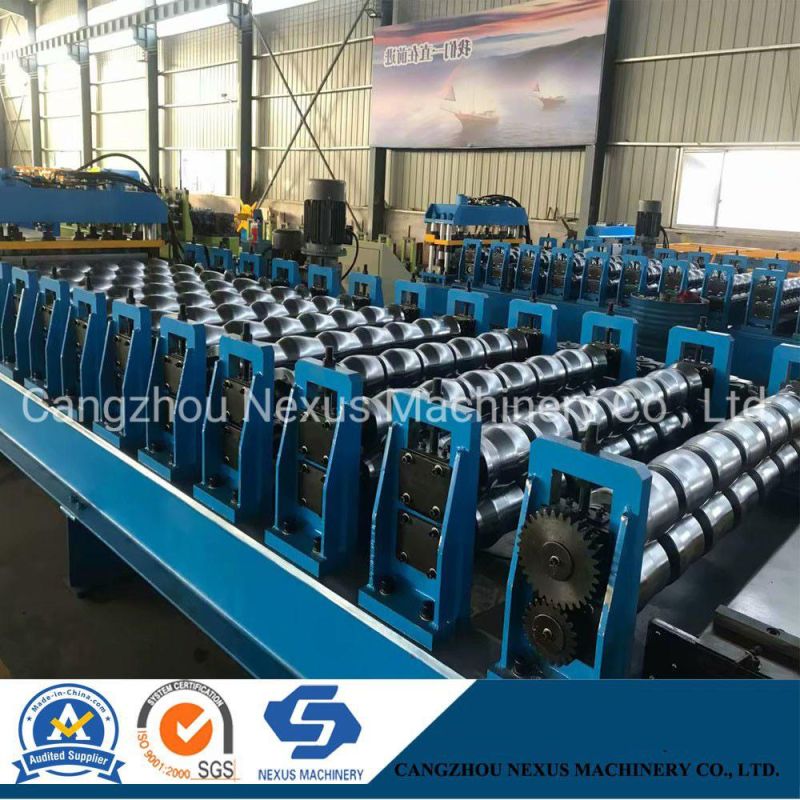

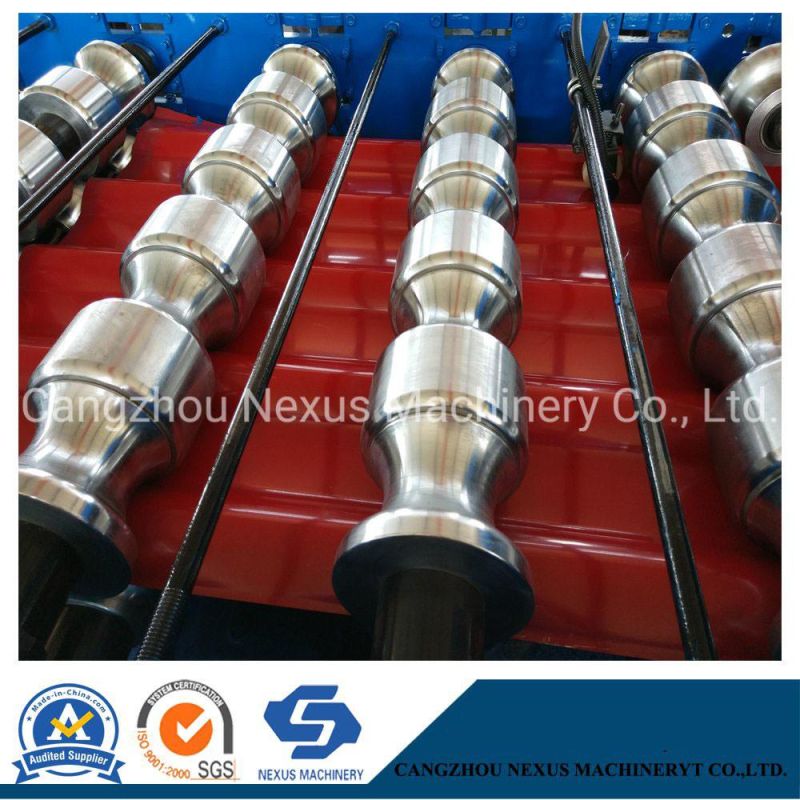

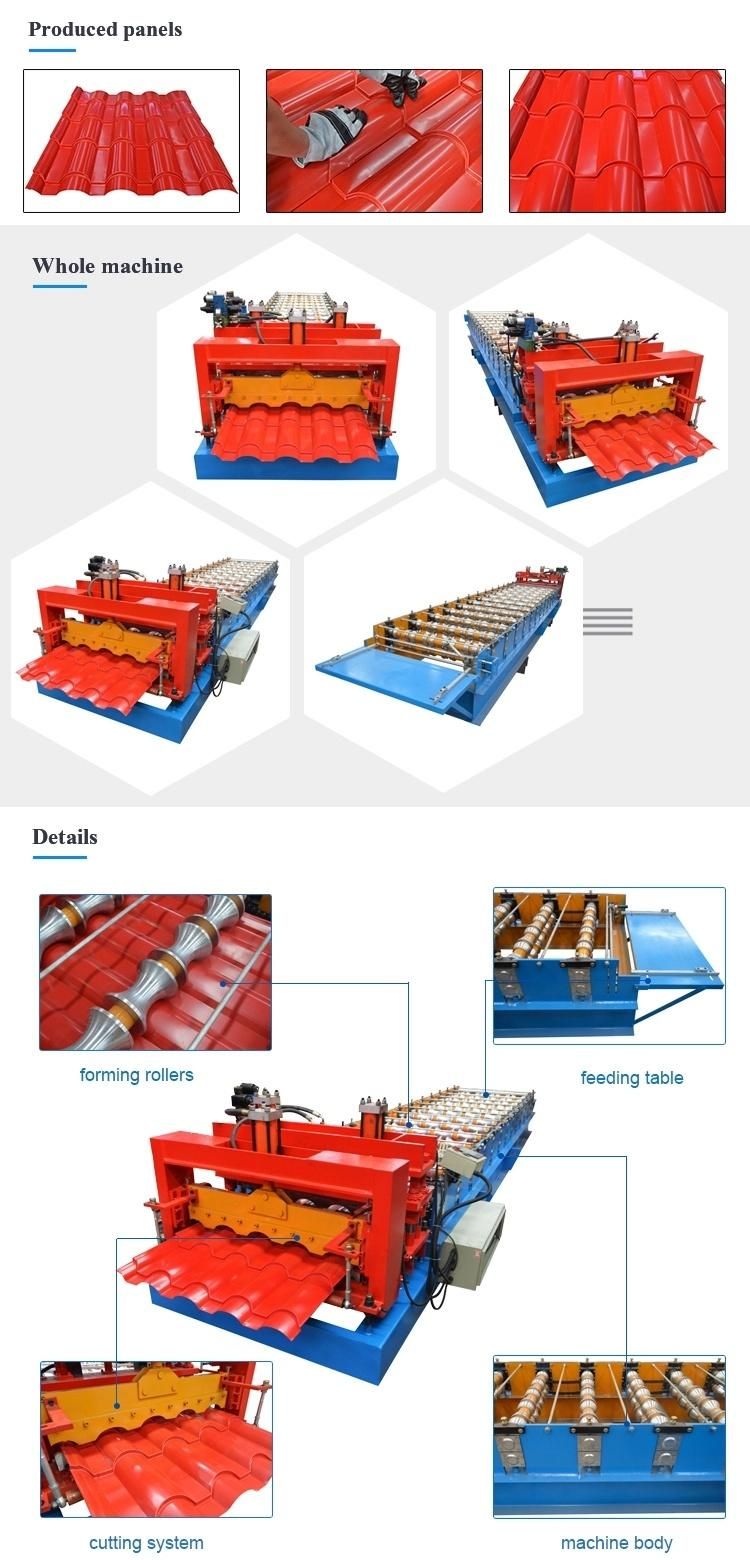

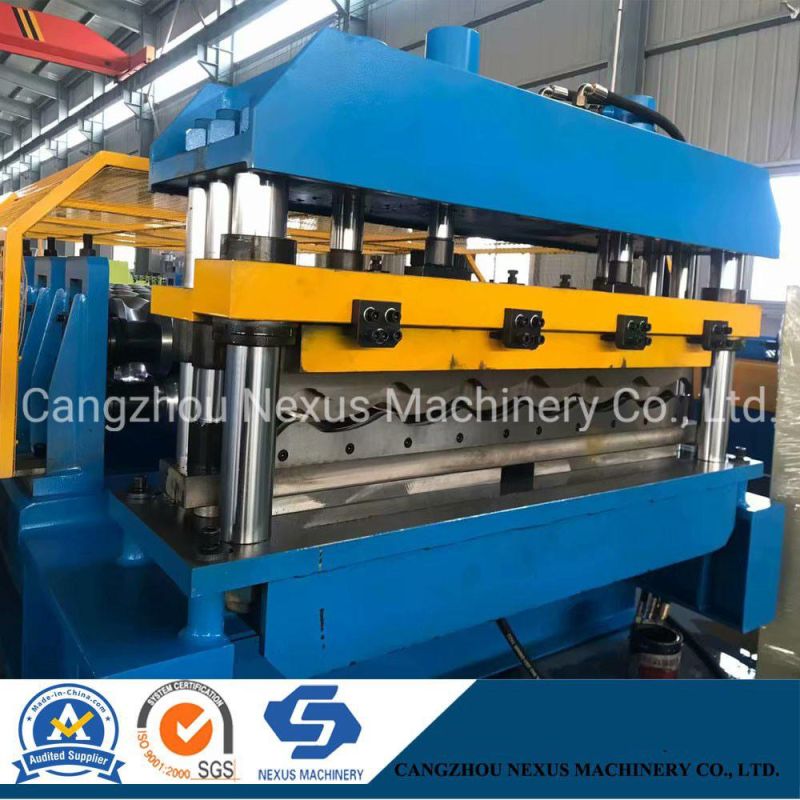

6. Photos of Glazed Tile Plate Rolling Shutter Sheet Metal Roll Forming Machine for Reference:
