• Product Name：Metal Color Aluminum Corrugated Roofing Machine
• Raw Material：PPGI Sheet
• Feeding Width：1000mm,1219mm
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Forming Speed：10-15m,Min
• Roller Station：16-22 Groups
• Operation Type：Touching Screen PLC
• Machine Weight：About 5 Tons
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Product Name Metal Color Aluminum Corrugated Roofing Machine Raw Material PPGI Sheet Feeding Width 1000mm/1219mm Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Forming Speed 10-15m/Min Roller Station 16-22 Groups Operation Type Touching Screen PLC Machine Weight About 5 Tons Warranty 12 Months Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Hebei, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

Metal Color Aluminum Corrugated Roofing Sheet Roll Forming Machine

The finished products of Metal Color Aluminum Corrugated Roofing Sheet Roll Forming Machine are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

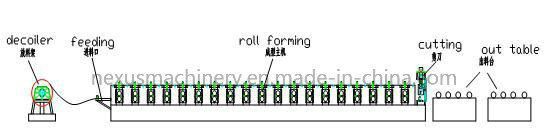

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

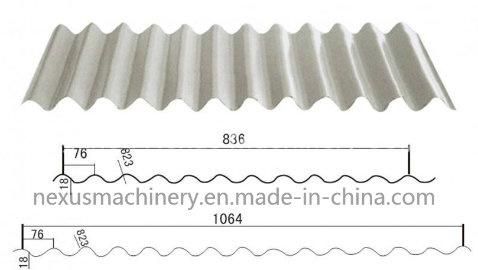

2. Profile Drawings for Reference:




3. Technical parameters  for Metal Color Aluminum Corrugated Roofing Sheet Roll Forming Machine:




4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Metal Color Aluminum Corrugated Roofing Sheet Roll Forming Machine  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

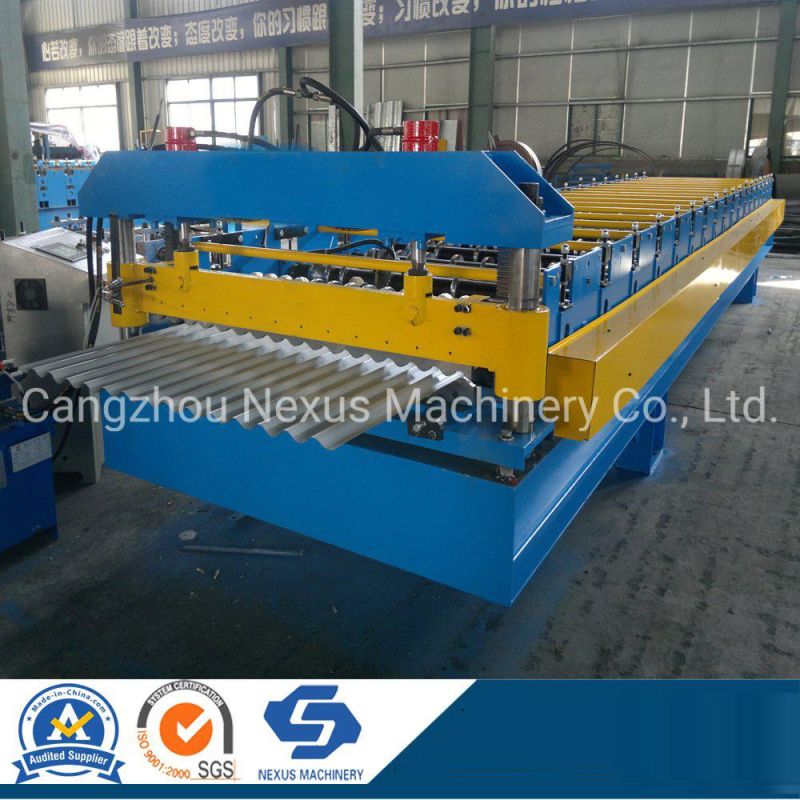

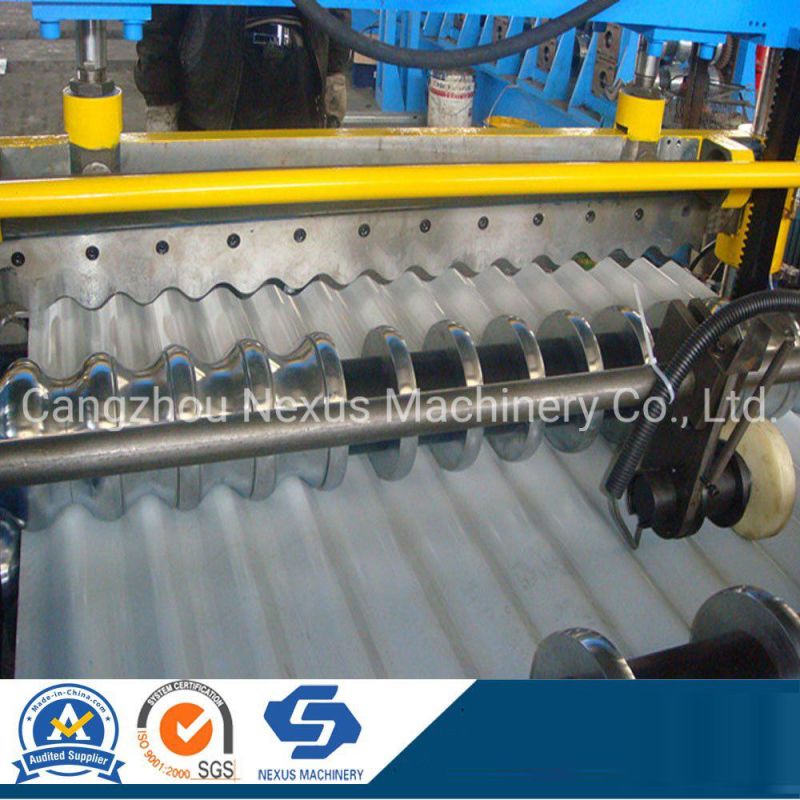

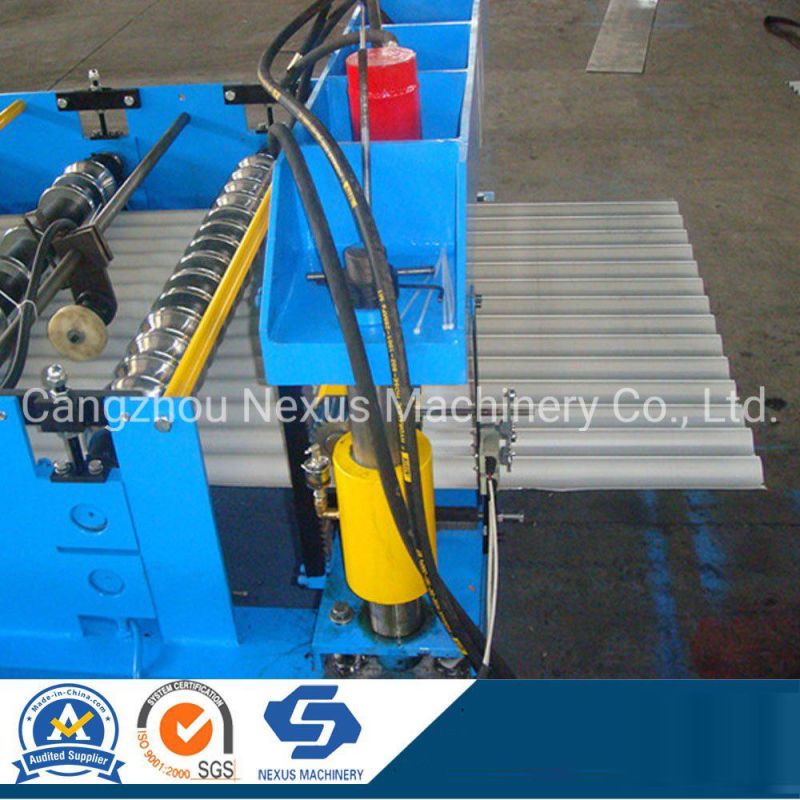

 Photos of Metal Color Aluminum Corrugated Roofing Sheet Roll Forming Machine for Reference:







More Photos for your choose:

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
